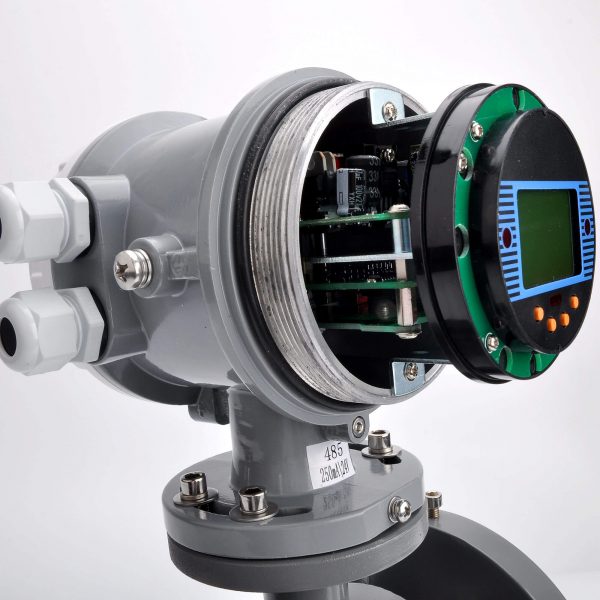

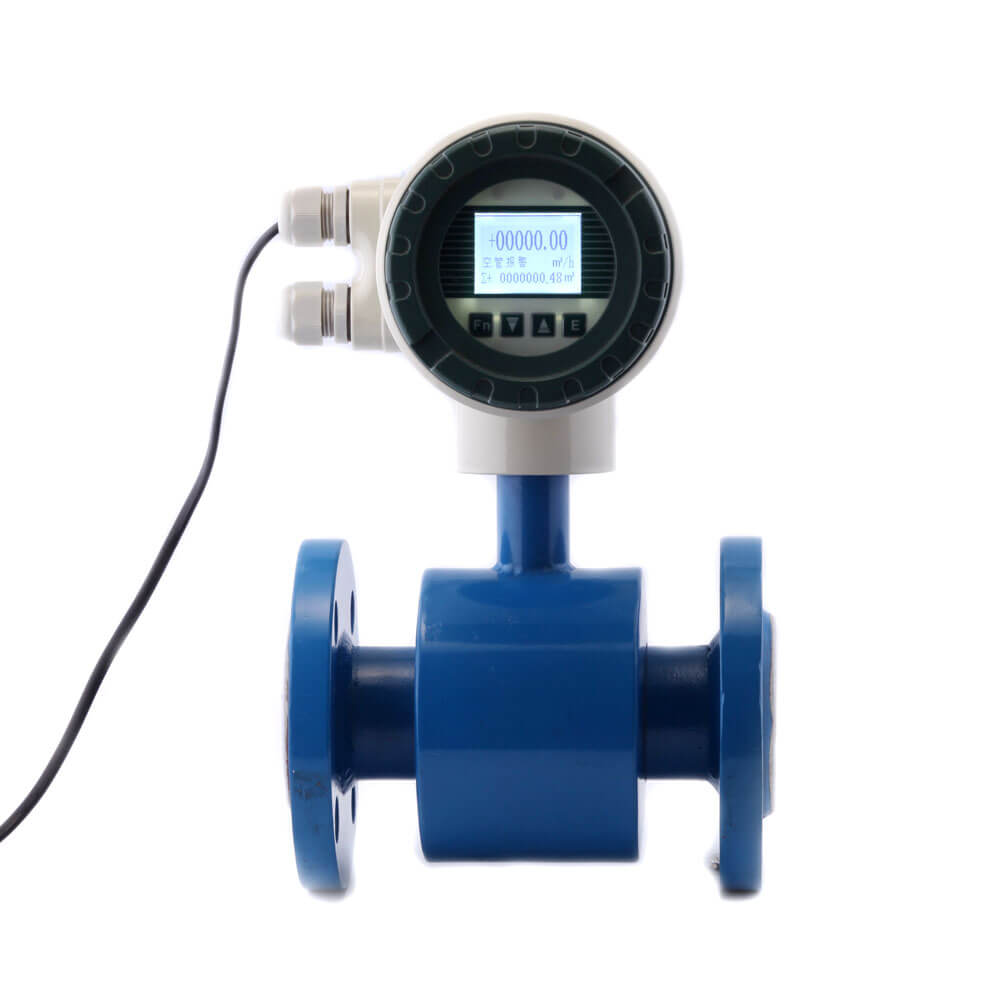

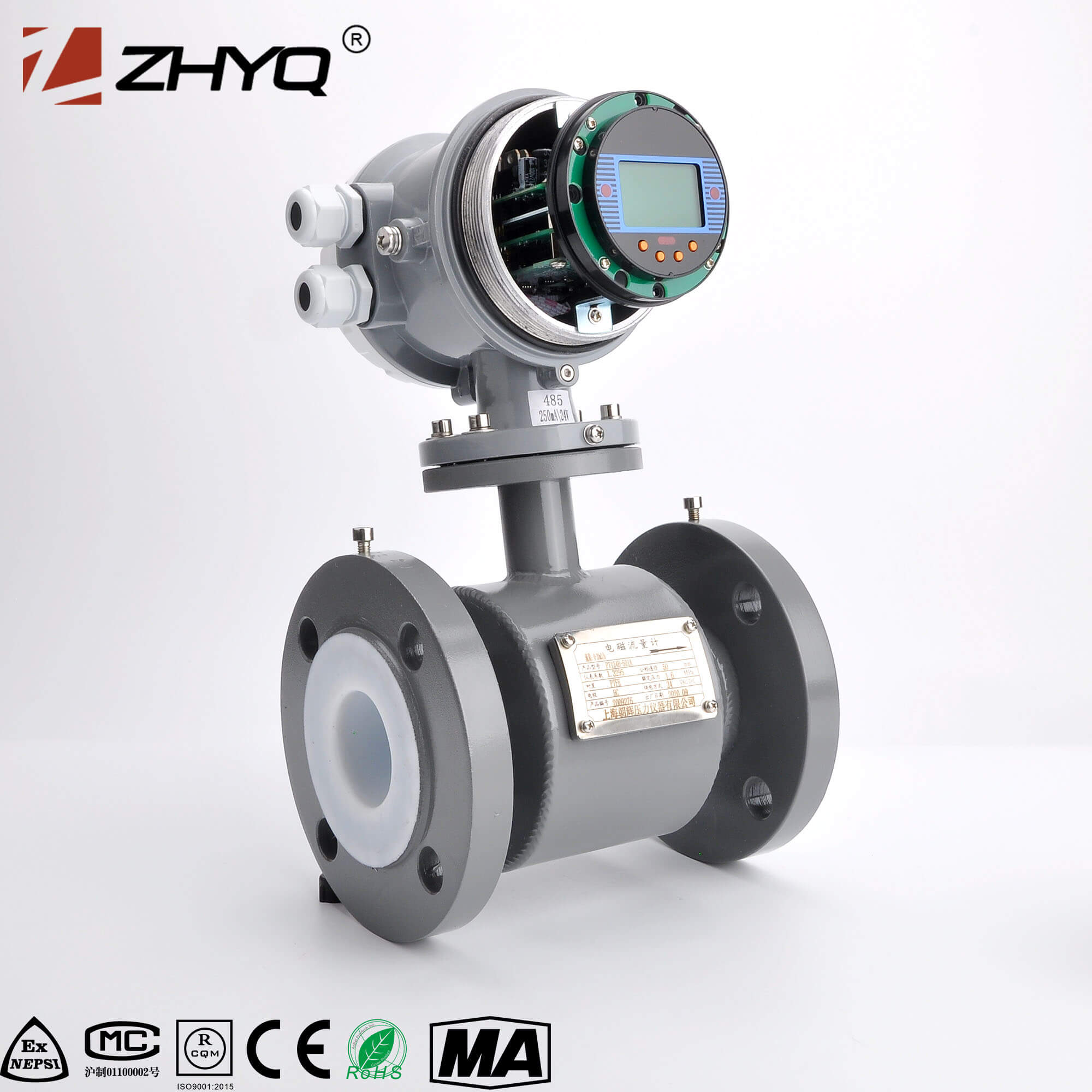

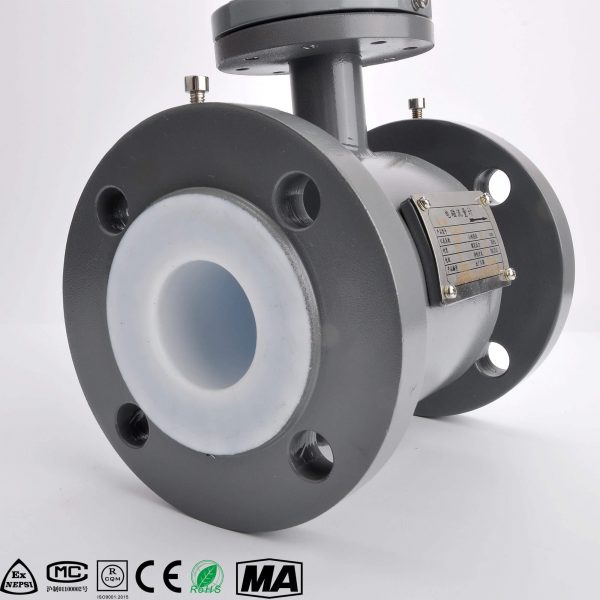

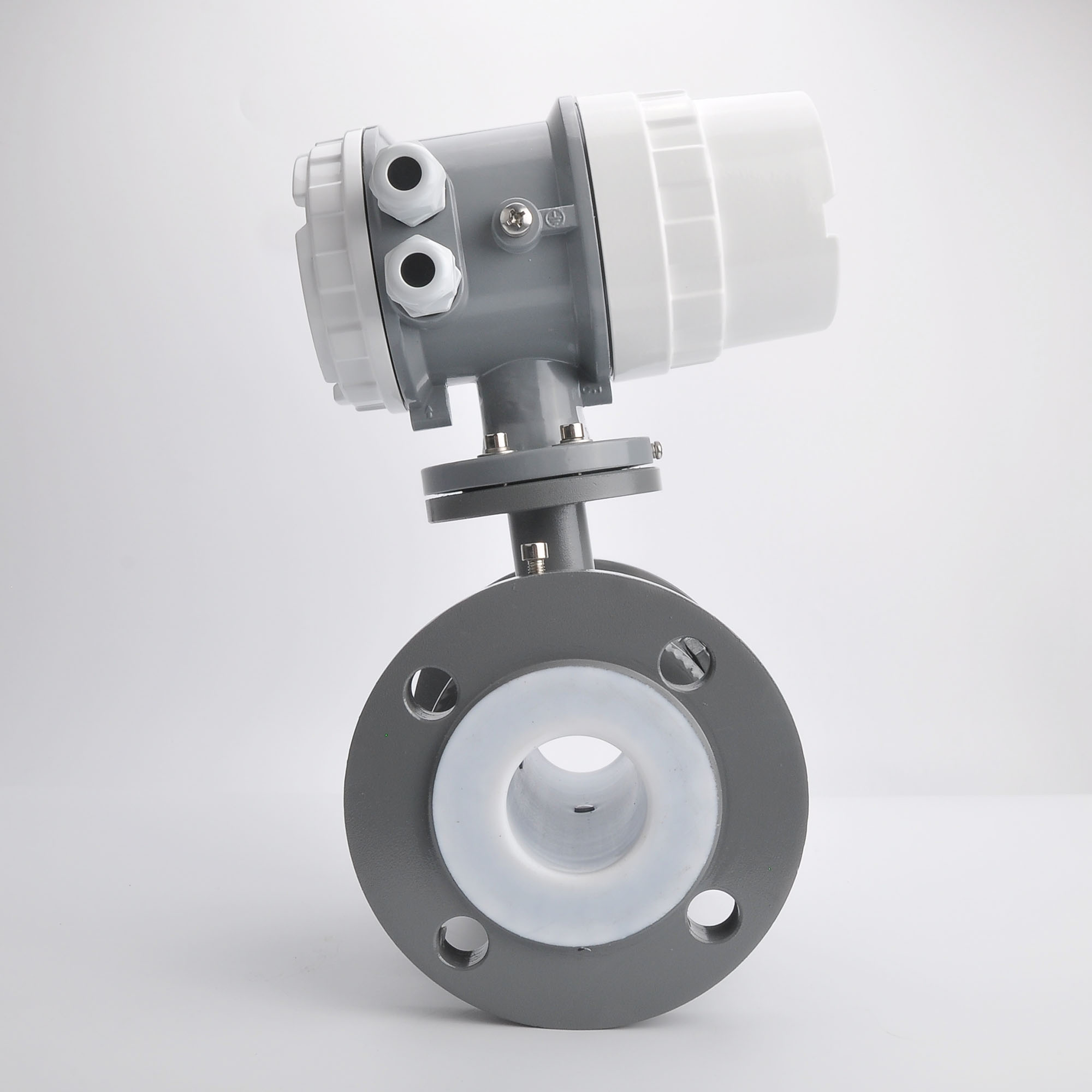

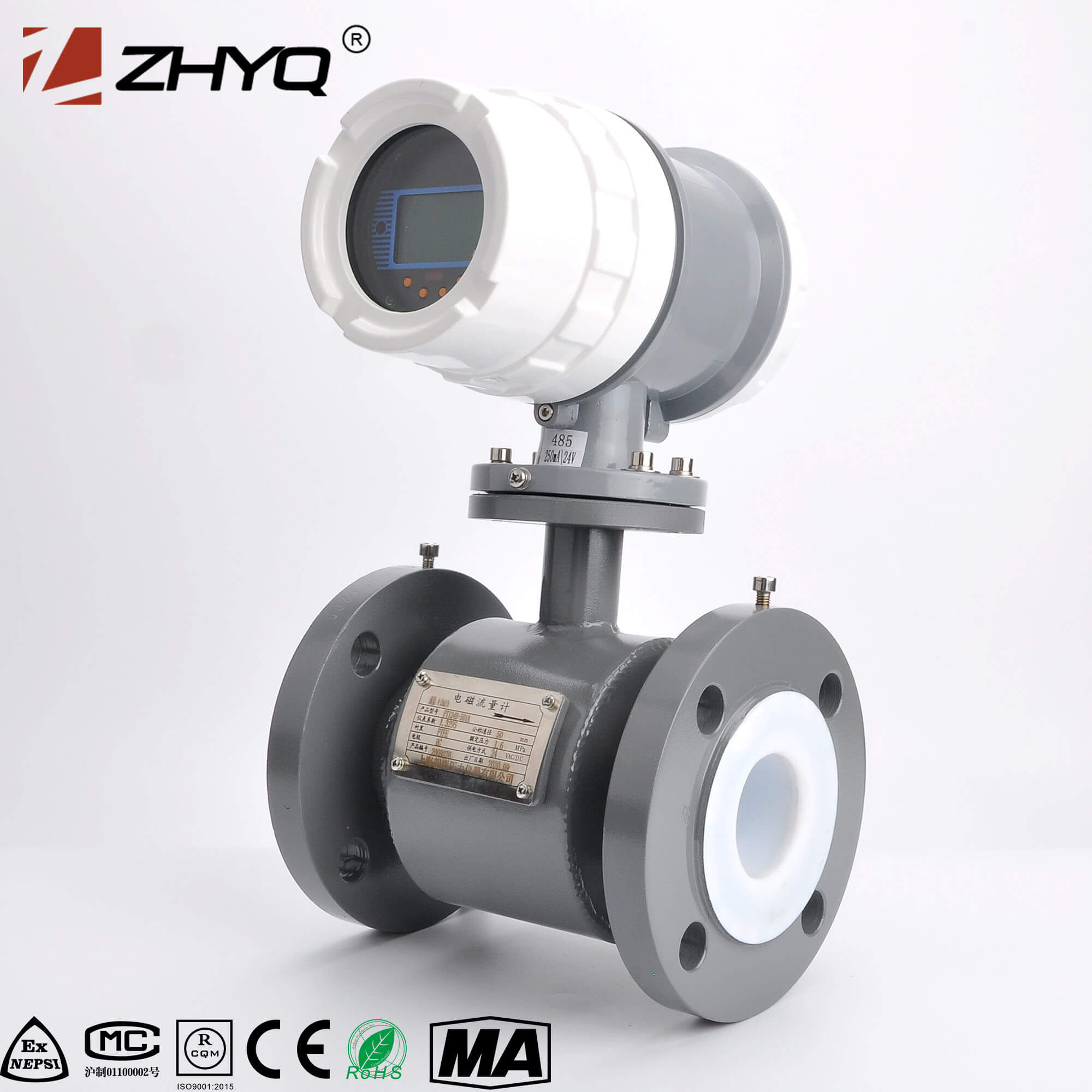

RS485 Signal Output Tri Clamp Connection Electromagnetic Flowmeter Flow Meter

ر.س1,895.48

Clear
Qty:
Compare

Request quotation for: RS485 Signal Output Tri Clamp Connection Electromagnetic Flowmeter Flow Meter

Product Information
Details Images
Application
Product Specification
Nominal diameter
3-3000mm
velocity range
0-10m/s
Degree of accuracy
±0.5%R, ±1%R ( < DN20)
Medium conductivity
≥5µS/cm, Actual conductivity≥30µS/cm
Nominal pressure
1.0MPa
1.6MPa
2.5MPa
4.0MPa
DN15-DN800
DN15-DN800
DN15-DN600
DN15-DN50
Environment temperature
Sensor
0℃- +80℃ or -25℃- +120℃ or +70℃- +250℃
Incorporate type
-10℃- +55℃
Highest medium
temperature
Incorporate type
+80℃
Separate type
CR chloroprene rubber liner (CR)
+80℃
Polytetrafluoroethylene lining (F4)
+120℃
Polite lining (F46)
+120℃
Teflon (PFA)
+180℃
Fluorosilicone rubber (FVMQ)
+250℃
Output signal
4-20mA, Pulse/Frequency 2kHz(Default), 5KHz(Max)
Cable entry size
M20*1.5 (Standard nylon waterproof connector, optional explosion-proof metal connector)
Supply voltage
110/220VAC (100-240VAC), 50Hz/60Hz; 24VDC±10%
Power dissipation
≤15VA
Digital communication
RS-485, support standard Mudbus protocol; GPRS
Signal / Ground
electrode material
Stainless steel 316L, Hastelloy C, Hastelloy B, titanium, tantalum, platinum
Form of electric pole
Interpolating, extrapolating electrode need to customize
Number of electrodes
Standard configuration 3-4 electrodes(two measuring electrodes plus a grounding electrode),according to the caliber configuration
Flange standard
Conform to the international GB9119(customize according to customer’s demand)
Flange material
Standard carbon steel and stainless steel are needed to be customized
Grounding ring material
Stainless steel, and stainless steel that contains molybdenum, etc.
DN12-DN450
Stainless steel 1 Cr18Ni9Ti(Ordinary austenitic stainless steel SUS321)
Housing material
Standard carbon steel and stainless steel are needed to be customized
Level of protection
Separate body-type
IP68, IP65
Incorporate type
IP65
Interval/wire length (separate body-style)
10m standard configuration connecting line, optional 15m, 20m, 25m, 30m
Production Process
Drawing
Wiring Code
Product Installation
Company Profile
FAQ
Q1. What is your terms of packing?

A: Generally, ZHYQ brand colorful cardboard boxes packing. OEM brand brown cardboard boxes packing.

Q2. What is your trade terms & payment terms can you accept?
A: Trade terms: EXW, FOB, CFR, CIF for your convenient
Payment terms: 100% T/T or credit card or paypal advance before shipment.
Q3. Will you supply the free sample?
A: Yes, buyer only need to pay the courier cost.
Q4. How do you ensure good product quality?
A: We have a complete quality control system; All of our products are fully checked by IQC, OQC departments before ship to our clients.

Accuracy

±0.5%R, ±1%R ( < DN20)

Size

50mm

Material

Fluorosilicone rubber, Polytetrafluoroethylene lining, CR chloroprene rubber liner, Polite
