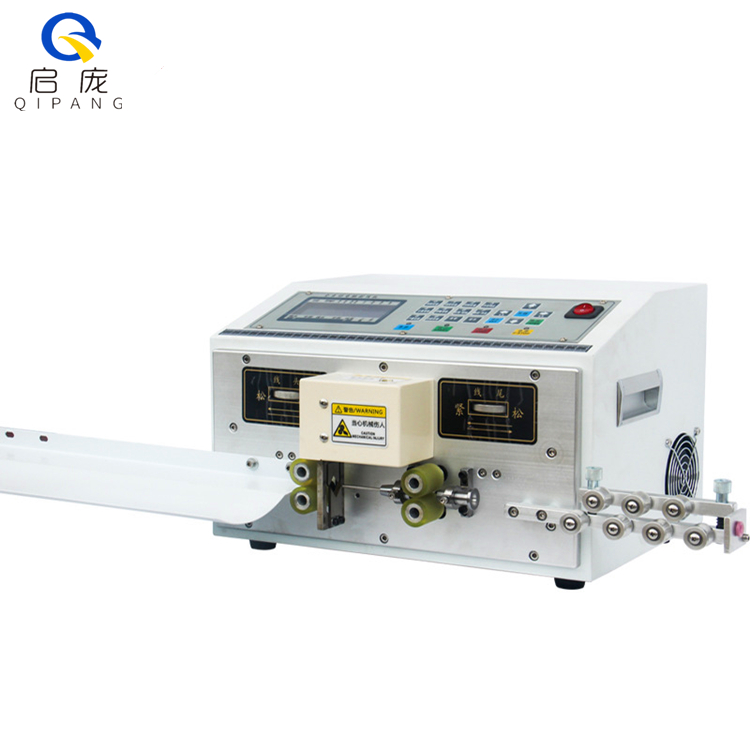

Model QP 508ZW-6
Dimensions: 580* 450 * 297mm Weight: 31kg
Display mode: 240X 128 blue screen LCD display
Power supply: AC175V- 250=50/60HZ
Power: 1 20—-220W
Cutting length: 0.1mm— 99999.9mm
Stripping head: 0.1— 100mm
Cutting core: 0.1 square -6.0 square
Cutting tolerance: within 0.002 X Lmm※L
Bending times: 13
Diameter of conduit: 5m—-8mm
Tool material: tungsten steel/imported high-speed steel
Drive mode: 2-wheel drive
Stripping every time: 800-1800
Wire pressure: adjustable
Pulse equivalent: no error within 5 meters
Bending method: horizontal or vertical, the same line can be bent at the same time
Bending length: can be greater than 55mm, two bends 90 degrees
Blade motor: precision silent hybrid stepping motor per step, 0.1mm per step
|
No
|
Model
|
Cutting length
|
First stripping length
|
Tail stripping length
|
|
1
|
0.1-2.5mm²
|
1mm-9999mm
|
15mm
|
10mm
|
|
2
|
0.1-4mm²
|
1mm-9999mm
|
20mm
|
10mm
|
|
3
|
0.1-6mm²
|
1mm-9999mm
|
30mm
|
20mm
|
|
4
|
0.1-10mm²
|
1mm-9999mm
|
30mm
|
20mm
|
|
5
|
0.1-16mm²
|
1mm-9999mm
|
20mm
|
20mm
|
|
6
|
0.1-25mm²
|
1mm-9999mm
|
20mm
|
20mm
|
|
7
|
0.1-35mm²
|
1mm-9999mm
|
300mm
|
120mm
|
|
8
|
0.1-16mm²，Multi-core sheathed wire
|
1mm-9999mm
|
150mm
|
10mm
|
|
9
|
0.1-25mm²，Wire twisting machine
|
1mm-9999mm
|
75mm
|
10mm
|
working hard to make it more creative and reliable. We sincerely hope to cooperate with new and old friends to create a brilliant tomorrow!
We are a factory . We can promise you a short lead time and best price if you purchase our machine. We also have our own trading department.
Q2: How does the factory ensure products quality?
With Nearly 16 years experience in manufacturing winding machine, we have our own technology develop department and testing department.
Quality is the first priority. We have strict purchasing system to ensure the quality of spare parts. We have experienced workers to assemble and test machine.
Q3：How about your after-sale service?
We have a professional technology supporting team for your timely services. You can get the help you need in time by telephone,webcam, online chat (Google talk, Facebook, Skype). Please contact us once the machine has any problem. Best service will be offered.
Q4: What are your payment terms?
100%TT or prepaid 50% , balance 50% before shipping.
Q5: How can I get my order? How can I know you sent the goods?
We will send the goods by UPS, DHL, FedEx or sea shipment. After we sent the goods, we will give you the tracking number or other relative files for checking.
Q6 : Will you send the installed machine or machine parts?
We will install the machine and test the machine before delivery. And the machine can be used directly after receiving the machine.
