Professional manufacturer front end loader and backhoe small backhoe loader for sale

ر.س16,850.66ر.س76,103.97

Clear
Qty:
Compare

Request quotation for: Professional manufacturer front end loader and backhoe small backhoe loader for sale

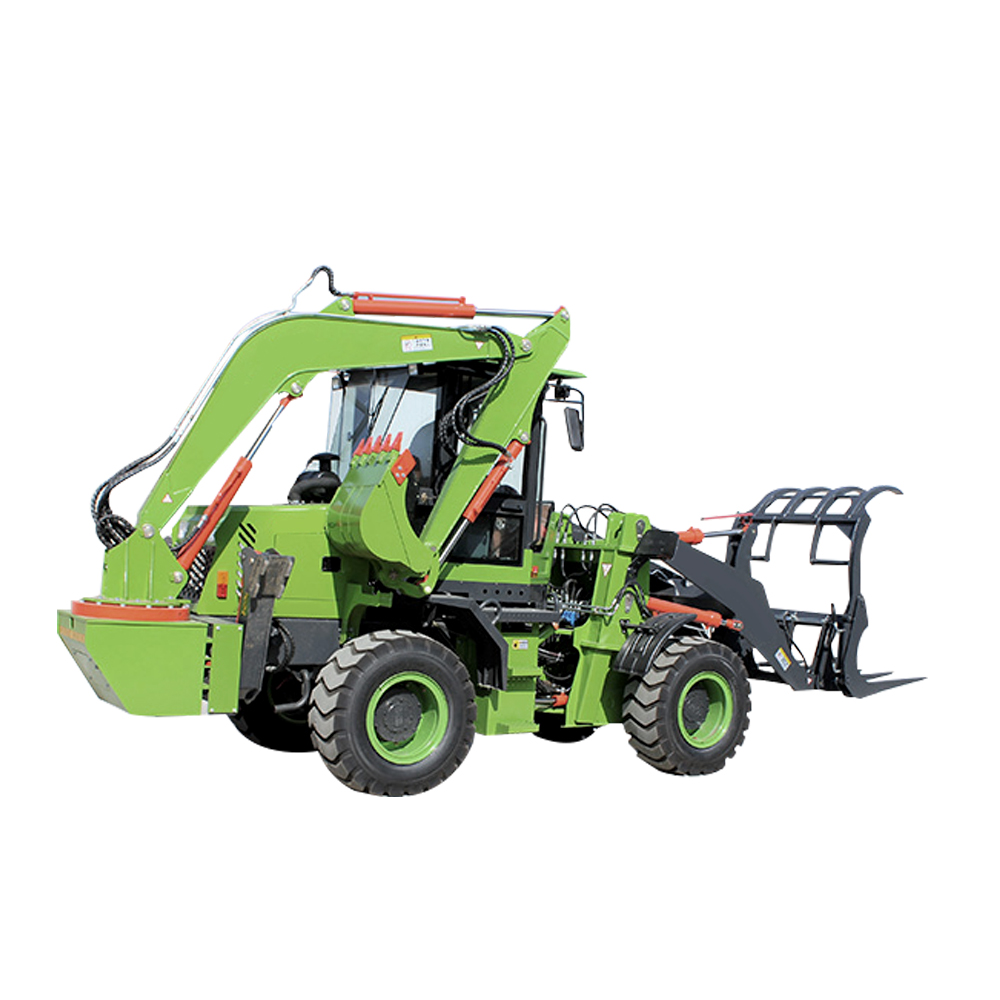

High Quality Mini Backhoe Excavator Loader Small Backhoe Loader Price


Product Description

Small backhoe excavator features, shovel transport to ensure that the original load function is not affected, when the excavation part folding weight, excavation load part chassis support, the two parts do not affect each other, but also can help each other.Power is mainly equipped with a four-cylinder 490 engine, more than 50 horsepower, energy-saving and efficient, enough power 30% throttle can be normal excavation.When excavating, loading and exchanging, the seat rotates at any time, with wide sight and simple operation.The chassis part adopts isuzu weight axle, four-wheel drive is equipped with engineering tires, which has good cross-country assability.




Model WZ10-20 WZ15-26 WZ20-28 WZ25-30
Dimensions 5500*1720*2650mm 5800*1850*2750mm 6200*1960*2850mm 6800*2040*2850mm
Operating Weight 3400 kg 4800 kg 5400 kg 6000 kg
Power 40 kw (55 hp) 55 kw (75 hp) 76 kw (104 hp) 92 kw (125 hp)
Gradeability 30° 30° 30° 30°
Travel Speed 0 – 26 km/h 0 – 26 km/h 0 – 30km/h 0 – 30 km/h
Working Pressure 16 MPa 16 MPa 16 MPa 16 MPa
Wheel Tread 1630 mm 1550 mm 1630 mm 1630 mm
Wheel Base 2670 mm 2150 mm 2670 mm 2670 mm
Tire Model 20.5 – 16 23.5 – 16 16/70 – 20 16/70 – 20
Tire Pressure 250 KPa 250 KPa 250 KPa 250 KPa
Transmission Type Hydraulic Hydraulic Hydraulic Hydraulic
Braking System Air Assist Air Assist Air Assist Air Assist
Min. Turning Radius 3500 mm 4000 mm 4500 mm 4500 mm
Loading Parameters
Rated Load 1500 kg 2000 kg 2500 kg 3000 kg
Loader Capacity 0.75 cbm 1.0 cbm 1.25 cbm 1.5 cbm
Loader Max. Dumping Height 2800 mm 3300 mm 3500 mm 3500 mm
Loader Max. Dumping Distance 800 mm 900 mm 900 mm 900 mm
Loader Max. Breakout Force 36 kn (3672 kg) 36 kn (3672 kg) 42 kn (4284 kg) 42 kn (4284 kg)
Excavation Parameters
Bucket Capacity 0.1 cbm 0.15 cbm 0.2 cbm 0.3 cbm
Max. Excavation Depth 2000 mm 2700 mm 2600 mm 2600 mm
Max. Excavation Height 3300 mm 4200 mm 4300 mm 4400 mm
Max. Excavation Radius 2900 mm 4600 mm 4600 mm 4600 mm
Max. Dumping Height 1850 mm 2200 mm 2300 mm 2300 mm
Max. Breakout Force 25 kn (2550 kg) 28 kn (2856 kg) 28 kn (2856 kg) 28 kn (2856 kg)



Model WZ28-40
Dimensions 7000*2000*2900
Operating Weight 7300 kg
Engine Model YUCHAI  4105 / 4108 Supercharged engine
Gradeability 40°
Travel Speed 0 – 45 km/h
Tire Model 280 Split High and low speed
Transmission Type Hydraulic
Braking System Air Assist
Torque Converter 16/70-24
Axle Big wheel side
Min. ground Clearance 320 mm
Loading Parameters
Load Bucket Capacity 1.2 cbm
Rated Load 2500 kg
Max. Unloading Height 3600 mm
Excavation Parameters
Bucket Capacity 0.2 cbm
Max. Excavation Height 5600mm
Max. Excavation Depth 3000 mm
Max. Unloading Height 4100 mm
Max. Excavation Radius 4800 mm
Excavator Rotation 360°
Two-way Driving Left and right swing
