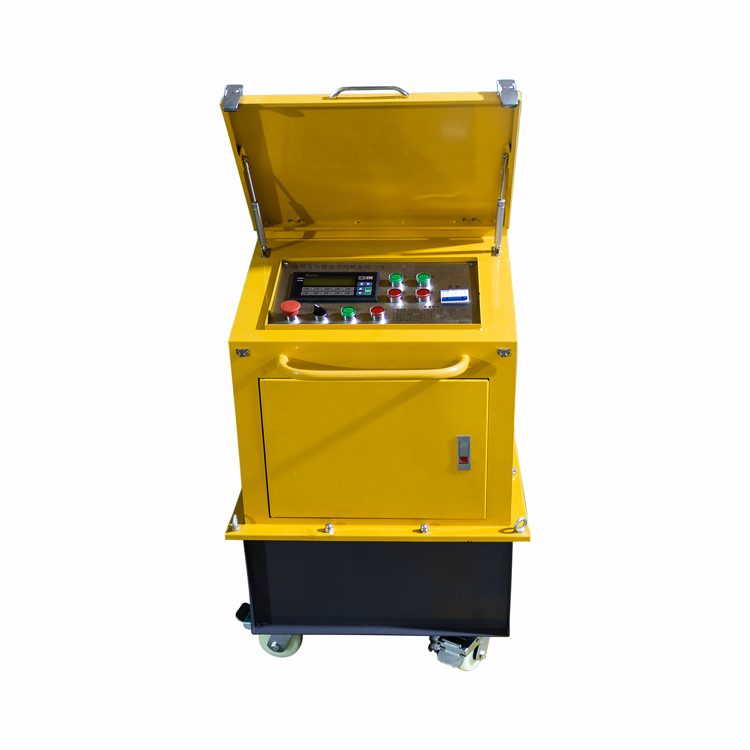

Prestressed Bridge Construction Automatic Intelligent Post Tensioning Equipment for Jack
Major parameter and main configuration

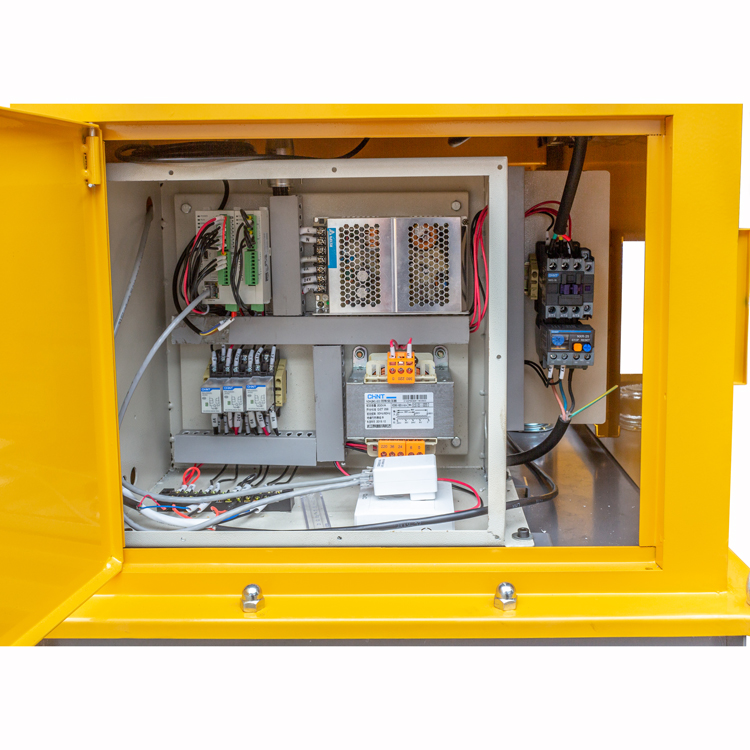

1. Control module (one control two)
2. Site monitoring computer (Lenovo Zhaoyang E46A370 laptop)
3. Data transmission module (within 200M for primary pump and auxiliary pump within 2KM between primary pump and site monitoring computer)
4. The 7 inches touch screen (primary pump) text display (auxiliary pump
5. Displacement sensor (precision 0.1mm), pressure sensor (precision 0.1MPa)
6. UItrahigh hydraulic control valve (63MPa)
7. Primary pump storage U disk (4G)
The wireless connection distance between primary pump and auxiliary pump shall not exceed 200M. The auxiliary pump will transmit the displacement and pressure signals to the primary pump. After processing such signals, the primary pump will transmit control signal to the auxiliary pump to control the oil supply, stop and oil return of the jack. During tension construction, the primary pump will transmit the site tension parameters to the site monitoring computer in wireless manner, and the site monitoring computer will upload the tension parameters to the special query website established by us or the self-built website, and you can inquire and download tension parameters via entering corresponding tension equipment number and tension date. Or the site monitorinc computer may directly transmit tension data to the supervisor of the Owner. Meanwhile, the control module of rimary pump can store about 40.000 pieces of tension parameter, which may prevent the tension parameter loss due to transmission problems.
1. Q: Are you a factory or trading company?
Liuzhou Xuanqiao Prestressing Force Machinery Co., Ltd. is a factory located in Liuzhou City, Guangxi Province.
2. Q: What’s your supply capacity?
A: Generally, our factory’s capacity is 100000 sets per month. But for special large quantity order, we can produce more than it. Don’t worry about this.
3. Q: How can we trust your quality?
There are many ways to check quality. Such as, send sample, visit factory, etc. Our advice is that visit factory is the best way to check quality.
4. Q: What are your payment terms?
We accept both T/T payment and irrevocable L/C at sight. For the T/T payment, we accept 30% prepayment in advance and the balance payable against copy of B/L.
5. Q: If accept OEM service to made product as per customer offering drawing?
A: Yes, we can offer OEM service. We also offer customers new product design, non-standard design and prestressing construction plan.
6. Q: If free sample available?
A:Yes, we can offer sample free of charge. But the express cost should be on buyer’s account.
