Product Overview

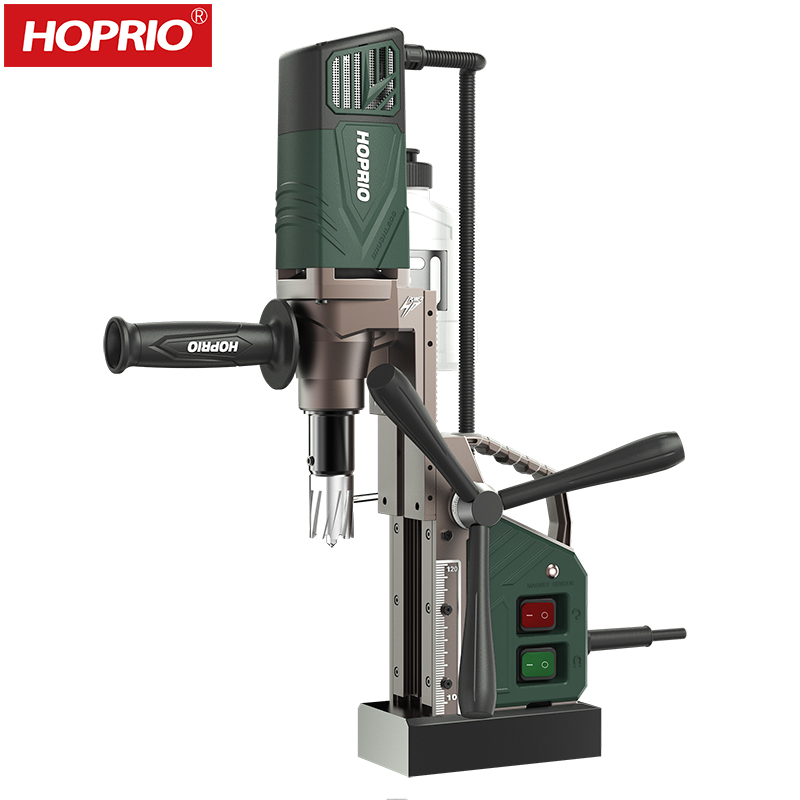

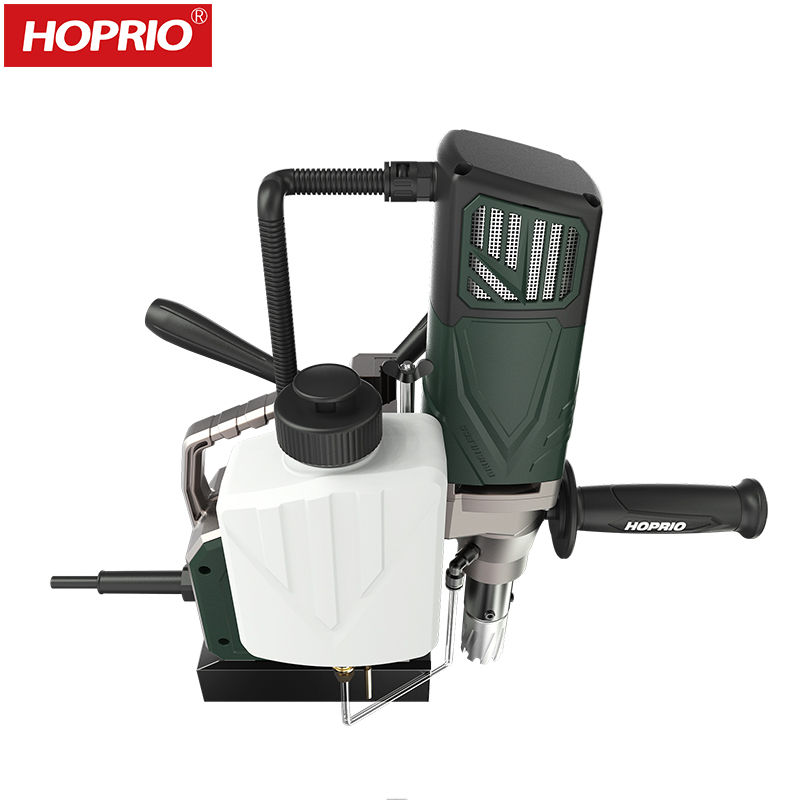

Hoprio Magnetic Drill
Quick Details：
Grade:Industrial Dimensions:273*117*351MM
Warranty:1 year Weight:10.5KG
Grade:Industrial Dimensions:273*117*351MM
Warranty:1 year Weight:10.5KG
Certification:CE Speed Type:Single Speed
Customized support:OEM, ODM Item No.:J1C-35YE1
Place of Origin:Jiangsu, China Rated Power:1600W
Brand Name:HOPRIO No-Load Speed:600RPM
Model Number:J1C-35YE1 Stroke:220mm
Power Source:Corded Drilling diameter:12-35mm
Drill Type:Magnetic Drill, Core Drill Depth of drilling:Max 50mm
Voltage:230V 50HZ, 220-240V 50/60HZ Twist drill:Max 16mm
Place of Origin:Jiangsu, China Rated Power:1600W
Brand Name:HOPRIO No-Load Speed:600RPM
Model Number:J1C-35YE1 Stroke:220mm
Power Source:Corded Drilling diameter:12-35mm
Drill Type:Magnetic Drill, Core Drill Depth of drilling:Max 50mm
Voltage:230V 50HZ, 220-240V 50/60HZ Twist drill:Max 16mm
Attraction:>10000N G.W:12KG
FEATURES AT A GLANCE
1.Anti-dust mesh
2..Housing4.Handle
3.Gearbox
3.Gearbox
4.Handle
5.principal axis
6.Cooling water bottle
7.Handle
8.Two-way adjustable guide rail
6.Cooling water bottle
7.Handle
8.Two-way adjustable guide rail
9.Motor switch
10.Magnetic seat switch
11.Magnetic seat
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Power
|
1600
|
|
2
|
Grade
|
Industrial
|
|
3
|
Dimensions
|
273*117*351MM
|
|
4
|
Stroke
|
220mm
|
|
5
|
Depth of drilling
|
Max 50mm
|
|
6
|
Attraction
|
＞10000N
|
|
7
|
Voltage
|
230V 50HZ
|
|
8
|
No-Load Speed
|
600RPM
|
|
9
|
Drilling diameter
|
12-35mm
|
|
10
|
Twist dril
|
Max 16mm
|
PRODUCT CONFIGURATION
Brusheless motor
Self-design Elcrtic control
Japan INA/NSK Parts
SIMILAR PRODUCTS
Company Profile
FAQ
Q.Are you factory ?
A.Yes ,we are professional brushless power tools factory ,and we also produce brushless motor ,controller .
Q. How long is the warranty ?
A.6 months for brushless motor ,and 12 months for controller.
Q.Can we do our own brand ,and customized colour ?
A.sure ,if you order more than 100 pcs ,we can put your logo
Q.Whats your payment term ?
A.normally ,we use T/T ,30% for the deposit ,after goods ready ,pay the balance .for big order ,L/C is possible .
Q.Can I get sample to test ?
A.Sure ,just mail me which model you want .
Q.why you price is so high ?
A.because it is use the brushless motor ,it have controller ,and our needle bearing is INA ,import from Germany ,and NSK Ball bearing import from Japan .all raw material use the very highi quality ,to ensure the motor have good performance.
Q. How long is the warranty ?
A.6 months for brushless motor ,and 12 months for controller.
Q.Can we do our own brand ,and customized colour ?
A.sure ,if you order more than 100 pcs ,we can put your logo
Q.Whats your payment term ?
A.normally ,we use T/T ,30% for the deposit ,after goods ready ,pay the balance .for big order ,L/C is possible .
Q.Can I get sample to test ?
A.Sure ,just mail me which model you want .
Q.why you price is so high ?
A.because it is use the brushless motor ,it have controller ,and our needle bearing is INA ,import from Germany ,and NSK Ball bearing import from Japan .all raw material use the very highi quality ,to ensure the motor have good performance.
