Products Description

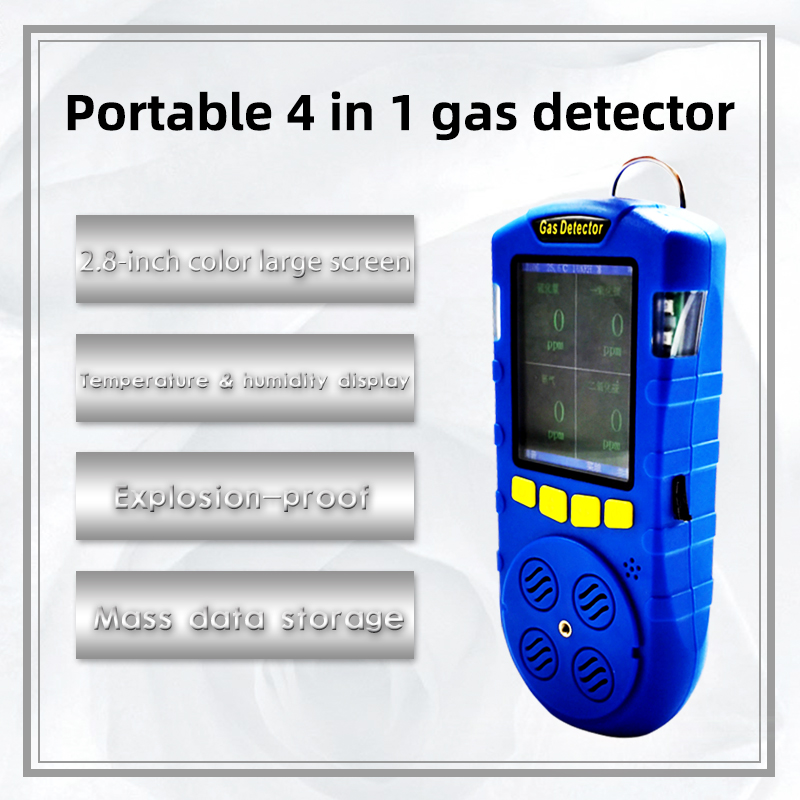

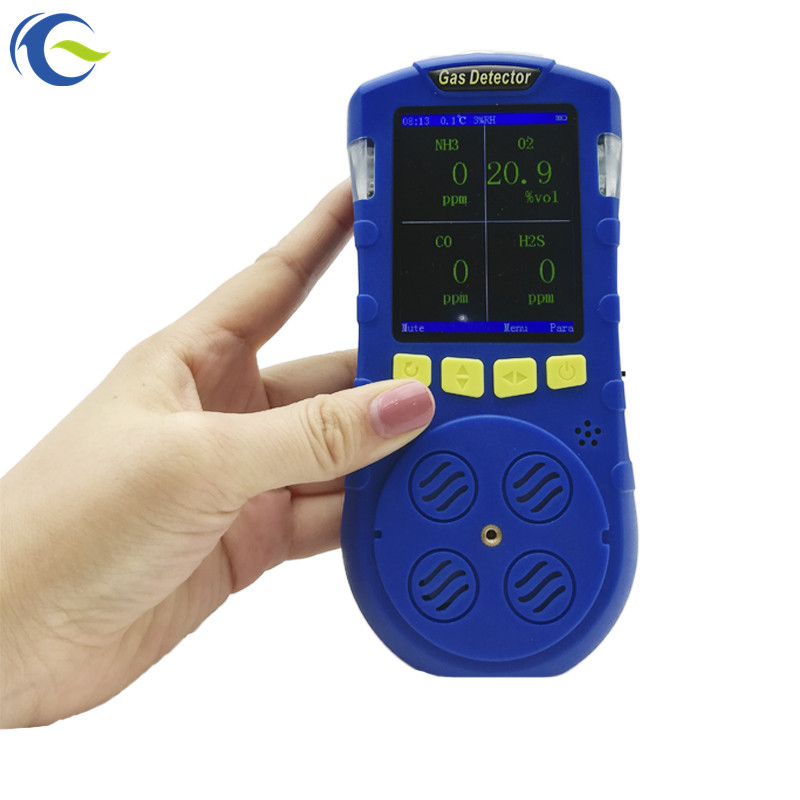

The portable multi gas detector can detect 1-4 kind of gases in one detector, like CO2, O2, H2S, CO,etc with temperature and humidity. When the concentration exceeds a certain level,the instrument will make sound, light and vibration alarm.
Product Features:
● LCD display with English
● Display temperature humidity
● CE,ATEX certifiacte
● Acousto-optic,vibration alarm
● Rechargeable lithium battery
● Adjustable alarm point
● Can keep 3000 alarm record
● Displaying battery capacity
● CE,ATEX certifiacte
● Acousto-optic,vibration alarm
● Rechargeable lithium battery
● Adjustable alarm point
● Can keep 3000 alarm record
● Displaying battery capacity

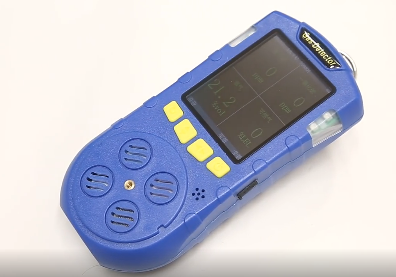

Details Images
Product Paramenters
|
Detect Gas
|
CO2+O2+CH4+H2S or VOC gas or customized
|
||||||
|
Detection principle:
|
electrochemical, infrared, catalytic combustion, PID/eto sensor
|
||||||
|
Alarm mode:
|
Sound-light, vibration
|
||||||
|
Display:
|
2.8-inch TFT color screen display
|
||||||
|
Response time:
|
T90≤30s (except for special gas)
|
||||||
|
Features:
|
Can detect humidity and temperature
|
||||||
|
Ambient: temperature:
|
20~50℃,
|
||||||
|
Humidity:
|
10~ 95%rh (no condensation)
|
||||||
|
Bttery capacity:
|
5000mAh
|
||||||
|
Charging voltage:
|
DC5V
|
||||||
|
Communication interface:
|
Micro USB
|
||||||
|
Data storage:
|
990,000 real-time records and over 3,000 alarm records
|
||||||
|
Weight:
|
293 g
|
||||||
|
Packing:
|
manual, USB charger, packing box, instrument, calibration use gas cover.
|
||||||
|
Optional function
|
Data logger to PC
|
||||||
Multi gas detector product feature:
● Can detect the temperature and humidity;
● Support CO2 and VOC sensors;
● 5000mAh Large capacity lithium battery charging;
● Can store 3,000 alarm records and 990,000 real-time records;
● Optional function: USB communication interface, can connect to PC.
● Parameters interface display gas TWA, STEL, STEL sampling period can be set
● Support CO2 and VOC sensors;
● 5000mAh Large capacity lithium battery charging;
● Can store 3,000 alarm records and 990,000 real-time records;
● Optional function: USB communication interface, can connect to PC.
● Parameters interface display gas TWA, STEL, STEL sampling period can be set
Export alarm data records to computor (Optional):
Portable device + USB cable + computer.Connection: USB data cable connected to a computer port, miniUSB port access to equipment
Portable device + USB cable + computer.Connection: USB data cable connected to a computer port, miniUSB port access to equipment
Certifications
Packing & Delivery
Related Products
Company Profile
Xi’an Huafan Technology Co., Ltd founded in 2003, specialized in toxic and hazardous gas detection and smart life filed, including research and develop products and operation service. It’s a high-tech enterprise from R & D to technology services and whole industry chain.
We are a production-oriented high-tech enterprise focusing on R & D,R & D department as the core department,Responsible for the core technology design, function upgrading and development, equipment installation technical support, maintenance and testing of the company’s products, currently composed of 6 senior engineers.
We strictly control every link of production,we has its own regular production workshop, from production to quality inspection to the factory, in accordance with the strict implementation of production standards, we aim to provide customers with high quality products, we are constantly learning, improve and perfect, in the future, I believe we will become better and better.
FAQ
Q1. Do you have detection panel/controller?
Yes, pls check our controller products, with optional function export data to PC or Modbus protocol.
Yes, pls check our controller products, with optional function export data to PC or Modbus protocol.
Q2. How can I order?
We draft an order on Alibaba with trade ensurance order link, you pay by visa or credit card.
Q3. Delivery time?shipment?MOQ?shipping cost
A: Delivery:1-2 days after payment received. MOQ:1pc.
Shipping cost: for one piece is about $25-$40 based on countries and weight.
Delivery: 6-10 days by air shipment.
Q4.Certificate?
A: Explosion-proof. CE,ATEX for fixed gas transmitters portable detector.
Q5. Cusomized logo?
A: we can print customer logo on the product, OEM,ODM welcomed
Q6: Guarantee for the products?
A: Yes, we offer 1 year warranty.can change the sensor within warranty freely.
Q7: Payment way?
A: TT/paypal/ Alibaba credit insurance order.
