Product Description

OEM/ODM ultrasonic spot welding welder thick wire splicing crimping machine Cheap Price

Product details

Warranty 1 Year
Power output 3000W
Frequency 20KHZ
Voltage 220V
Aire source 0.5kg
Welding thickness 0.1-2mm
Welding time 0.5-15S
Net weight 50KG
Dimensions 400*250*330mm, 380*345*155mm
Type Auto scan frequency
Product Keywords ultrasonic spot welding,ultrasonic spot welder,thick wire splicing crimping machine

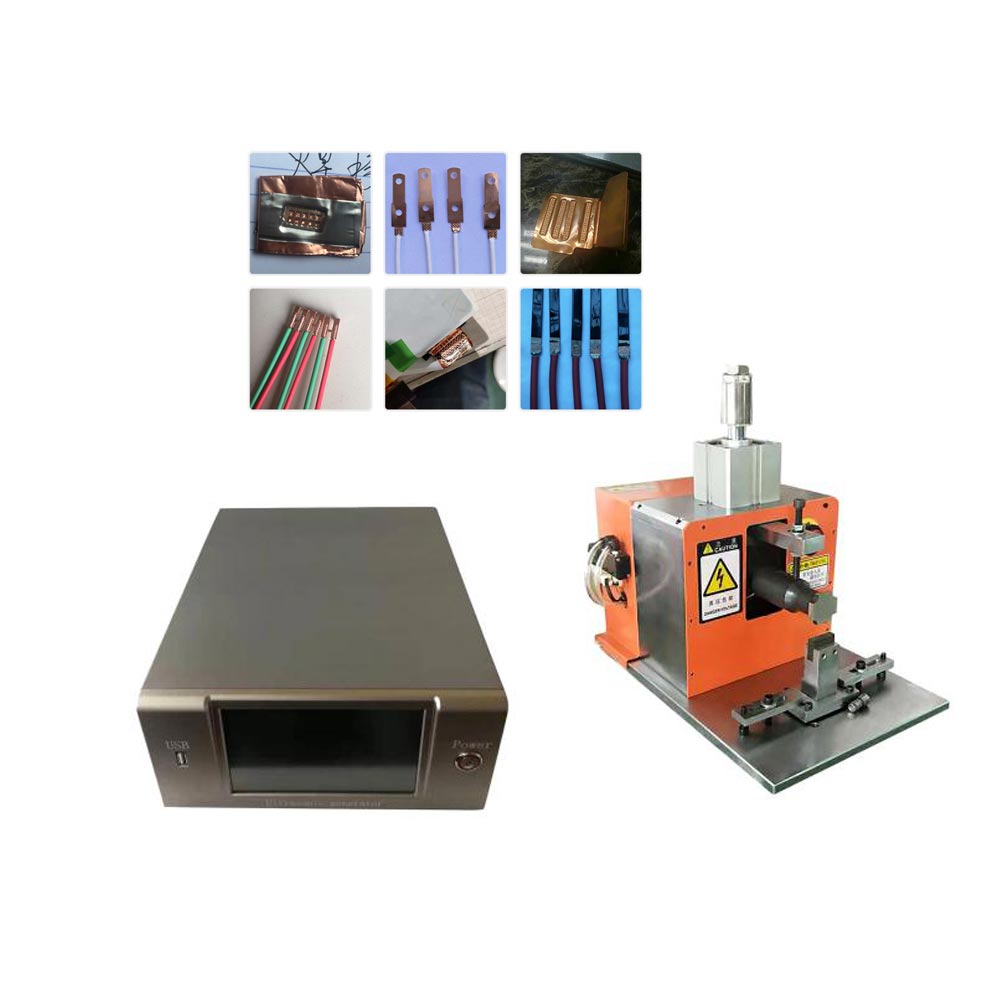

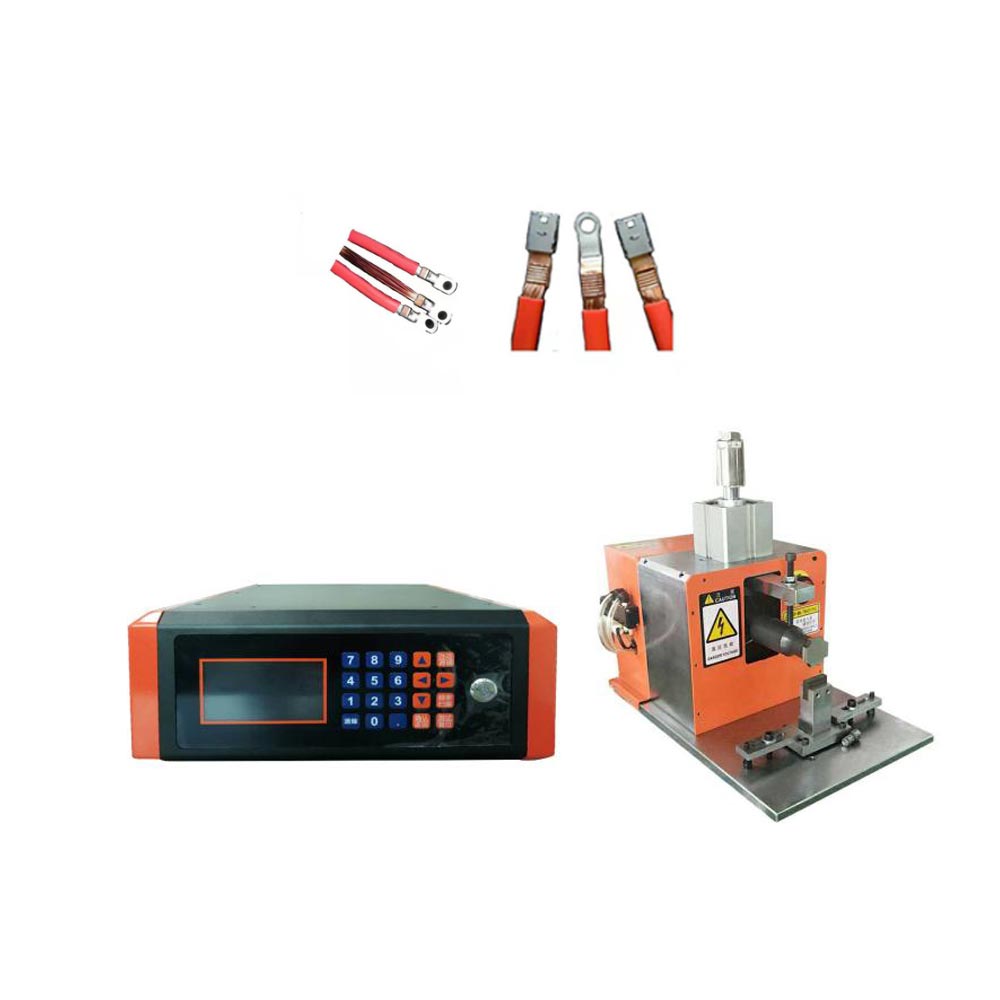

Ultrasonic Wire Harness Welding Machine:

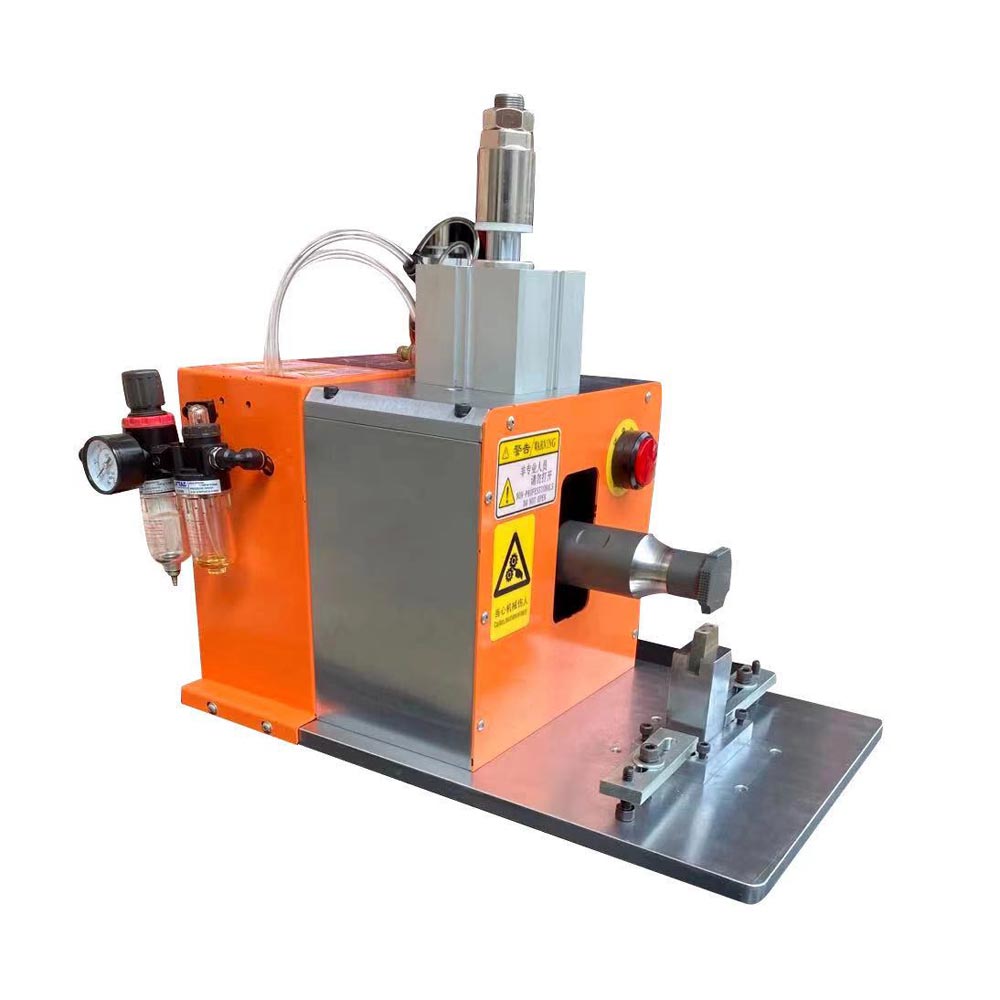

Welding machine main parts:
Transducer, mold, electric box.
Automatic tracking of energy, time, welding time, energy, air pressure, width, amplitude can be adjusted.

Parameters Name Parameters Datas
OUTPUT POWE 2000W
FREQUENCY 20K Hz
INPUT VOLTAGE 220V
HORN JOURNEY 30MM
CONTROL METHOD MCU
OSCILLATION TIME TIME0.2~9S
AIR PRESSURE 0.5KG
WELDING AREA 07MM2-12MM2
ELECTRIC BOX SIZE 380*350*150MM
MACHINE SIZE 460*270*150MM
NET WEIGHT 38KG
WARRANTY Machine 1 year

Features:

1. High stability: All-digital integrated circuit, using high-performance anti-jamming processor imported from the United States, while reducing the number of components and simplifying
The hardware structure is optimized, and the voltage stabilizing function is added to improve the reliability and stability of the system.

2.Frequency automatic tracking: digital frequency synthesis technology combined with composite control technology of digital phase-locked loop frequency tracking can eliminate temperature, Factors such as static load, processing area, tool wear, etc. drift. The shortcomings that conventional analog regulators are difficult to overcome are beneficial to parameter adjustment and convenient Through the modification of the program software, it is convenient to adjust the control scheme and realize a variety of new control strategies.

3.Powerful output: The use of IGBT power module and the structure of the other-excited oscillating circuit make the output power the traditional self-excited circuit 1.5 times or more.

4.Amplitude stepless adjustment: The amplitude can be increased or decreased instantaneously during the adjustment process, and it can also be fine-tuned to effectively prevent both large and small plastic parts from being perfect.Welding, effectively reducing piercing and scalding, with defective product monitoring function, more suitable for automatic supporting use, amplitude setting range10%~100%.

5. Intelligent protection and fault alarm prompt: mold current is too high protection, frequency offset protection, total output protection is too large. Equipment failure.If failure occurs, the generator will immediately stop working and prompt the cause of the failure until the technician removes the failure.

6.The amplitude adjustment achieved by the intelligent closed loop amplitude control technology is not affected by the fluctuation of the input power supply voltage and load.Constant amplitude output.

7.A variety of welding modes are switched, so that the welding accuracy is higher, the application range is wider, and the welding effect is better.

ultrasonic spot welding

Related Products
ultrasonic spot welding
ultrasonic spot welding
ultrasonic spot welding

Copper belt crimping machine

91.8% Response Rate

Auto feeding crimping machine for power cord cable

91.8% Response Rate

Cutting and stripping machine

91.8% Response Rate

Certifications
ultrasonic spot welding
Packing & Delivery
ultrasonic spot welding
Packaging
Size
36*34*76CM
Weight
55kgs



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
