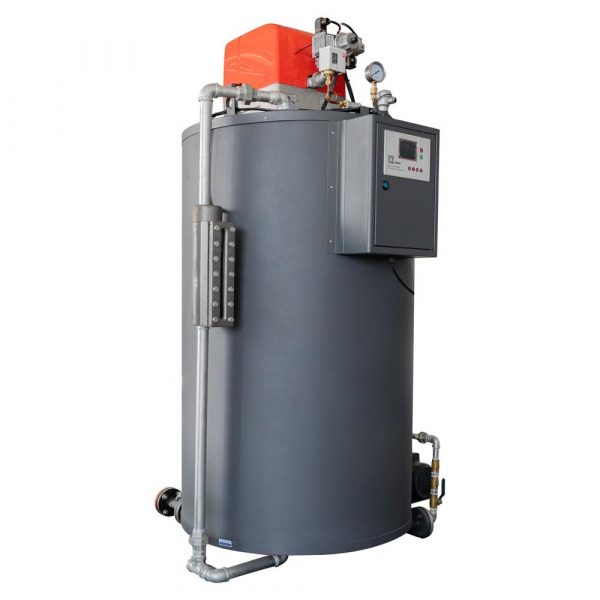

NEW DESIGN!! CE Certificated 50Kg 100Kg 200Kg Steam Generator Steam Boiler
Advantage of For Heating Jacketed Kettle Fuel Diesel 100Kg Steam Boiler
1.Unique Internal Structure Design That Is Exempted from Applying for a Boiler Use Certificate
2.High-efficiency Boiler Liner Structure
3.Advanced Automatic Control Function
4.Safe and scientific structural design
5.High-quality and fast steam
|
Product Parameter of For Heating Jacketed Kettle Fuel Diesel 100Kg Steam Boiler
|
||||||||
|
Type/Spec
|
LSS0.035-1.0-Y/Q
|
LSS0.05-1.0-Y/Q
|
LSS0.08-1.0-Y/Q
|
LSS0.1-1.0-Y/Q
|
||||
|
Rated Evaporation (kg/h)
|
35
|
50
|
80
|
100
|
||||
|
Thermal Efficiency (%)
|
≥90
|
≥90
|
≥90
|
≥90
|
||||
|
Rated Pressure (MPa)
|
0.7/1.0 (7-10 bar)
|
0.7/1.0 (7-10 bar)
|
0.7/1.0 (7-10 bar)
|
0.7/1.0 (7-10 bar)
|
||||
|
Steam Temperature(℃)
|
170/185
|
170/185
|
170/185
|
170/185
|
||||
|
0#Diesel (kg/h)
|
2.2
|
3.2
|
4.65
|
6.1
|
||||
|
Coal gas (Nm³/h)
|
6.2
|
8.9
|
15.0
|
17.0
|
||||
|
Natural gas (Nm³/h)
|
2.8
|
4.0
|
6.0
|
7.6
|
||||
|
Liquefied gas (kg/h)
|
2.2
|
3.1
|
4.5
|
5.7
|
||||
|
Product Dimension (mm)
|
800*770*1410
|
880*850*1760
|
||||||
|
Package Dimension (mm)
|
810*780*1420
|
890*860*1770
|
||||||
|
Steam Caliber
|
DN15
|
DN15
|
DN25
|
DN25
|
||||
|
Drain Outlet Caliber (mm)
|
DN15
|
DN15
|
DN25
|
DN25
|
||||
|
Water Inlet Caliber (mm)
|
DN15
|
DN15
|
DN15
|
DN15
|
||||
|
Weight (kg)
|
230
|
250
|
400
|
450
|
||||
System Drawing of For Heating Jacketed Kettle Fuel Diesel 100Kg Steam Boiler

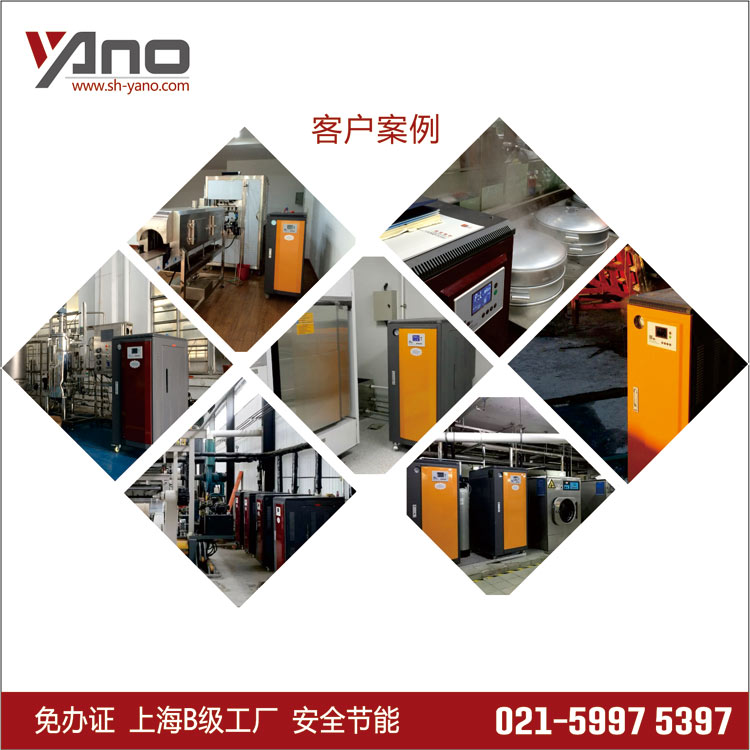

Application of For Heating Jacketed Kettle Fuel Diesel 100Kg Steam Boiler
1. Washing ironing industry: dry washer, dryer and washing machine, dryer, ironing machine, electric iron, and other ancillary equipment.
2. Food machinery industry: tofu machine, steam box, sterilization pot, packing machine, coating equipment, sealing machine, such as supporting the use of equipmen
3. Biological chemical industry: fermentation tank, reaction kettle, sandwich pot, mixer, emulsifying machine supporting the use of equipment
4. Other industries: oil field, car) steam cleaning industry, (hotel, school, dormitory, batch plant) made by hua-dong works are hot water supply, (Bridges, railways) concrete curing, leisure (salon), sauna bath, heat exchange equipment.
LCD Intelligent Controller
Boiler Liner
Brand: Yano
Original: Shanghai, China
Lifespan:10 years
Water Pump
Brand: Aolong
Original: Zhejiang,China
Lifespan:10 years
Material: Brass/Stainless Steel
Temperature Resistance: Up To 120 ℃.
Burner
Brand: Bultur
Original:Italy
Lifespan:10 years
Feature:Stable in Operation, Low Combustion Noise, More Energy Efficient.
100Kg/h Steam Mini Gas Boiler Used in Sewage Treatment
100Kg/h Steam Mini Gas Boiler Used in Food Industry
100Kg/h Steam Mini Gas Boiler Used in Wire Rod Industry
CE-Oil(Gas) Steam Boiler ISO-Steam Boiler SGS Manufacturing Licence
