Product Description
Function for torque meter
Digital torque meter is an intelligent multi-functional measuring instrument which is designed for testing various kinds of torque. It main used in testing and calibration various kinds of electric pneumatic screwdriver set, the torque of torque wrench, all kinds of products refer to testing of screw down force, parts torsion destructive testing etc. With features of simple operation, high precision, easy to carry, complete functions etc. It’s widely used in various kinds of electric, light industry, machinery manufacturing, research institutions, etc.
Main Feature for torque meter
1.High precision, high resolution, quick sampling speed, full-screen display.
2.Adopting high precision torque sensor, with torque direction display.
3.Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
4.Three units can be switched each other (N·m、kgf·cm、Ib·in).
5.Real-time, peak, automatic peak three models of optional switch.
6.Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
7.Peak holding, remove automatically function, remove time to set freely.
8.Large storage, can save 99 groups of test data.
9.Without automatic shutdown function, time can be set freely.
2.Adopting high precision torque sensor, with torque direction display.
3.Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
4.Three units can be switched each other (N·m、kgf·cm、Ib·in).
5.Real-time, peak, automatic peak three models of optional switch.
6.Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
7.Peak holding, remove automatically function, remove time to set freely.
8.Large storage, can save 99 groups of test data.
9.Without automatic shutdown function, time can be set freely.

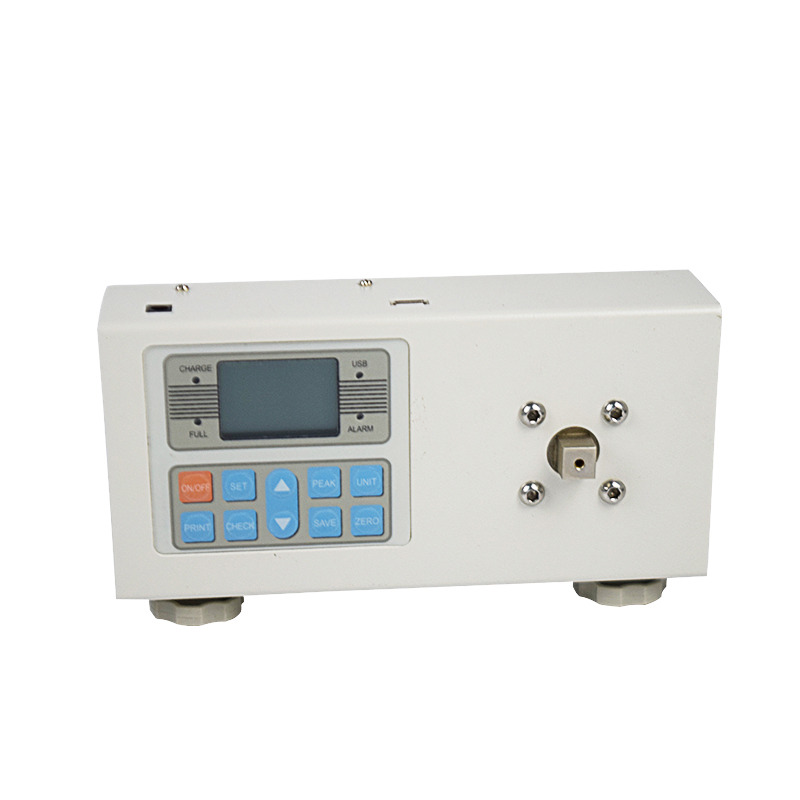

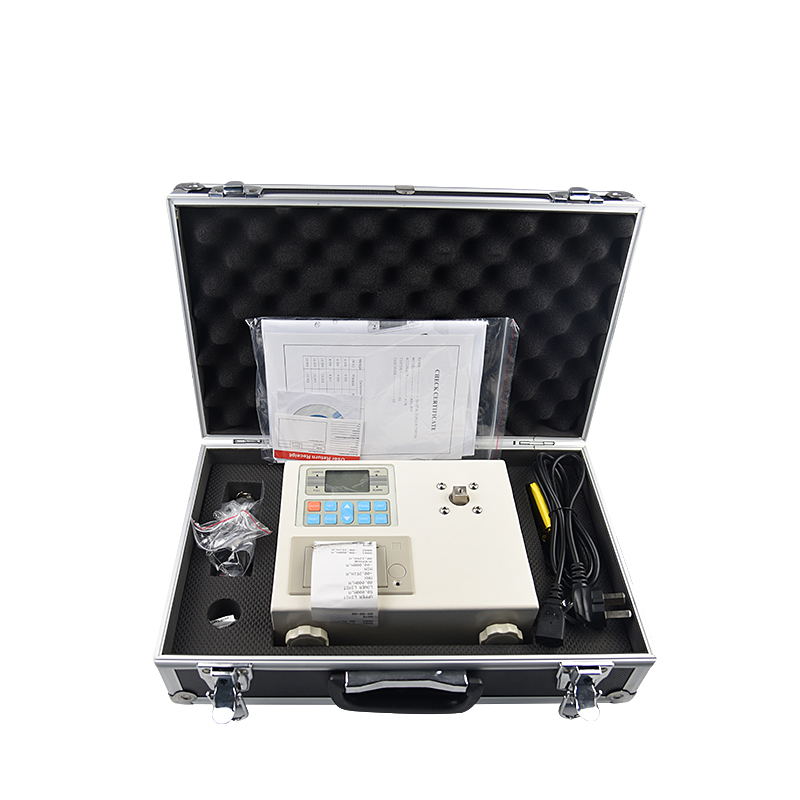

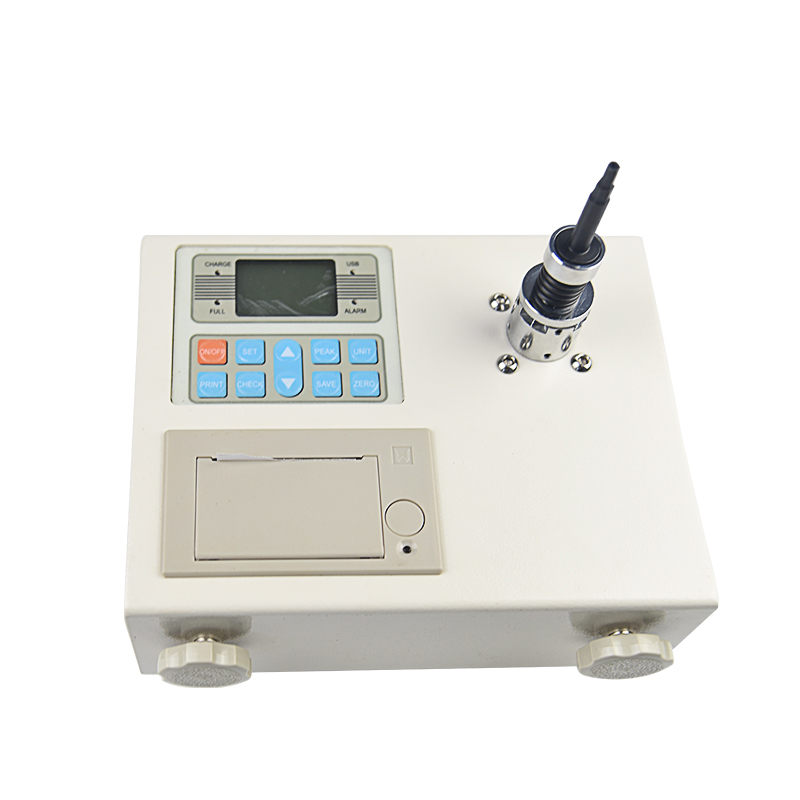

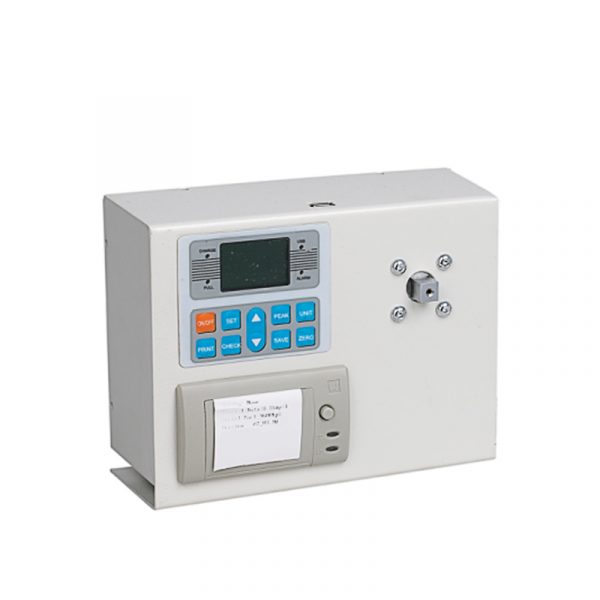

More Details Photos
Specification
1~20 N.m Torque Meter:
|
Type
Index |
With printer
|
NNL-1P
|
NNL-2P
|
NNL-3P
|
NNL-5P
|
NNL-10P
|
NNL-20P
|
||||||
|
No printer
|
NNL-1
|
NNL-2
|
NNL-3
|
NNL-5
|
NNL-10
|
NNL-20
|
|||||||
|
Measuring range / Division value
|
N·m
|
1.0000
/0.0001
|
2.0000
/0.0001
|
3.0000/
0.0001 |
5.0000/
0.0001 |
10.000/
0.001 |
20.000/
0.001 |
||||||
|
Kg·cm
|
10.210/
0.001 |
20.421/
0.001 |
30.631/
0.001 |
51.052/
0.001 |
102.10/
0.01 |
204.21/
0.01 |
|||||||
|
Ib·in
|
8.862/
0.001 |
17.724/
0.001 |
26.586/
0.001 |
44.311/
0.001 |
88.62/
0.01 |
177.24/
0.01 |
|||||||
|
Precision
|
±0.5%
|
||||||||||||
|
Peak Value Sampling Frequency
|
2000HZ
|
||||||||||||
|
Power
|
8.4V 1.2VX7 Ni-MH Battery group
|
||||||||||||
|
Charging Time
|
4～6 Hours
|
||||||||||||
|
Continuous using time of battery
|
About 10 Hours
|
||||||||||||
|
Battery life
|
≥300 times
|
||||||||||||
|
Size
|
With printer：230mm×95mm×180mm
No printer：230mm×70mm×125mm |
||||||||||||
|
Net Weight
|
With printer：4KG No printer：2KG
|
||||||||||||
|
Power adapter
|
Input：AC 110-220V 50HZ Output：DC 10V 300mA
|
||||||||||||
50~500 N.m Torque Meter :
|
Type Index |
With printer
|
NNL-50P
|
NNL-100P
|
NNL-200P
|
NNL-300P
|
NNL-500P
|
|||||
|
No printer
|
NNL-50
|
NNL-100
|
NNL-200
|
NNL-300
|
NNL-500
|
||||||
|
Measuring range / Division value
|
N·m
|
50.000/0.001
|
100.00/0.01
|
200.00/0.01
|
300.00/0.01
|
500.00/0.01
|
|||||
|
Kg·cm
|
510.52/0.01
|
1021.0/0.1
|
2042.0/0.1
|
3063.1/0.1
|
5105.2/0.1
|
||||||
|
Ib·in
|
443.11/0.01
|
886.2/0.1
|
1772.4/0.1
|
2658.6/0.1
|
4431.1/0.1
|
||||||
|
Precision
|
±1%
|
||||||||||
|
Peak Value Sampling Frequency
|
2000HZ
|
||||||||||
|
Power
|
8.4V 1.2VX7 Ni-MH Battery group
|
||||||||||
|
Charging Time
|
4～6 Hours
|
||||||||||
|
Continuous using time of battery
|
About 10 Hours
|
||||||||||
|
Battery life
|
≥300 times
|
||||||||||
|
Size
|
With printer：HoANL display part 230mm×95mm×180mm
Measuring device part 480mm×190mm×180mm No printer：HoANL display part 230mm×70mm×125mm Measuring device part 480mm×190mm×180mm |
||||||||||
|
Net Weight
|
With printer：36KG No printer：34KG
|
||||||||||
|
Power adapter
|
Input：AC 220V 50HZ Output：DC 10V 300mA
|
||||||||||
1000N~5000N Torque Meter :
|
Type
Index |
With printer
|
NNL-1000P
|
NNL-2000P
|
NNL-3000P
|
NNL-5000P
|
||||
|
No printer
|
NNL-1000
|
NNL-2000
|
NNL-3000
|
NNL-5000
|
|||||
|
Measuring range / Division value
|
N·m
|
1000.0/0.1
|
2000.0/0.1
|
3000.0/0.1
|
5000.0/0.1
|
||||
|
Kg·cm
|
10210/1
|
20420/1
|
30630/1
|
51051/1
|
|||||
|
Ib·in
|
88622/1
|
17724/1
|
26586/1
|
44311/1
|
|||||
|
Precision
|
±1%
|
||||||||
|
Peak Value Sampling Frequency
|
2000HZ
|
||||||||
|
Power
|
8.4V 1.2VX7 Ni-MH Battery group
|
||||||||
|
Charging Time
|
4～6 Hours
|
||||||||
|
Continuous using time of battery
|
About 10 Hours
|
||||||||
|
Battery life
|
≥300 times
|
||||||||
|
Size
|
With printer：Host display part 230mm×95mm×180mm
No printer：Host display part 230mm×70mm×125mm |
||||||||
|
Net Weight
|
With printer：36KG No printer：34KG
|
||||||||
|
Power adapter
|
Input：AC 220V 50HZ Output：DC 10V 300mA
|
||||||||
