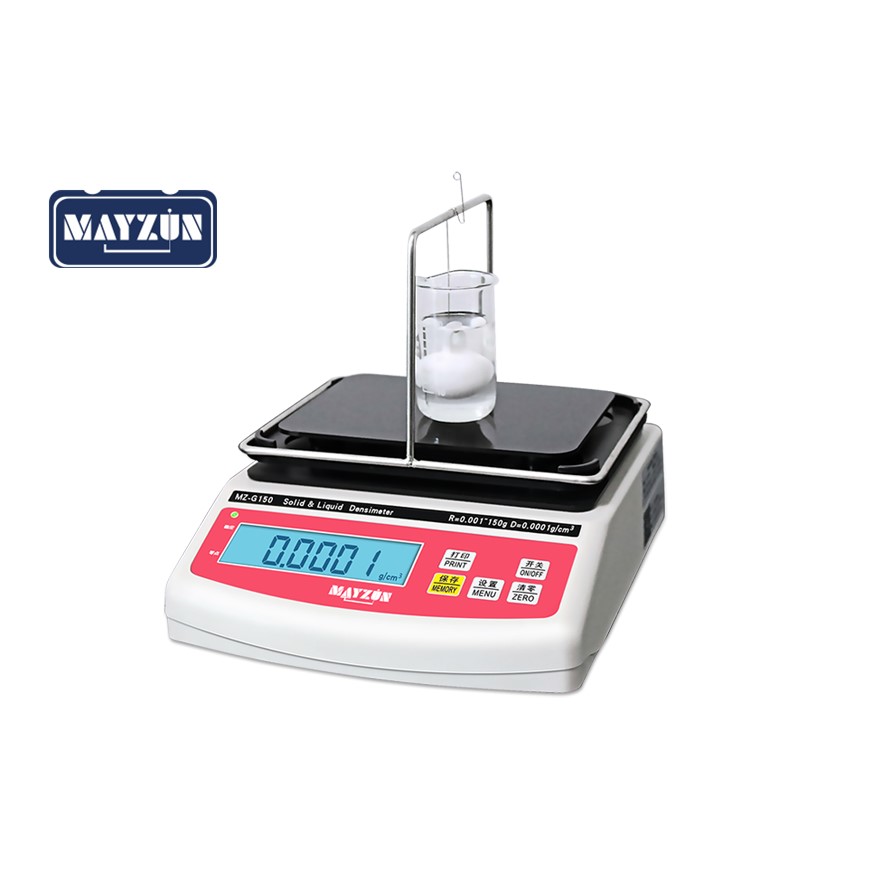

MZ-G150 Liquid Densimeter, Ethanol Hydrometer, Electronic Liquid Density Meter
Free Shipping
Original Manufacturer
Warranty for 3 Years
Warm Tips:
The price includes the costs of delivery and insurance, which varies in types. For details, please contact our client service.
Suitable for:
Chemical solution, Food Industry, Aquaculture Industry, Mouth wash,Medicament, Research Laboratory
Principle:
In accordance with GB/T13531, T5526, T5009, ASTM, JIS, ISO standards, and by adopting the buoyancy method and water displacement method of Archimedean principle, the density and concentration can be showed rapidly.
Functions:
(1)1.Using German HBM sensor, the reading is stable, the overload is automatically protected , the sturdy and durable, the warranty is three years.Density value can be showed by one procedure,and repeatedly continuous rapid measurement can be worked.
(2).Imported silent mechanical buttons in Japan, you can respond to readings with a touch of 0.1 seconds, sensitive and fast, lifetime warranty.(2)Digital display; High accuracy of measurement;Simple operation; Stable and durable.
(3)Density value of samples with temperature from normal to 250centigrade can be measured.
(4)Take samples conveniently;50CC or less would be okay.
(5)It is very easy to clean measurement cup,and can’t got the limitation of the size of pycnometer caliber.
(6)Adopt completed windproof and dustproof cover,which makes the structure convenient and durable.
(7)Adopt completed stainless steel measuring hook.
(8)Coordinate with operation of thermostatic tank to measure the proportion with required temperature.
(9)Function of displaying concentration,density .Volatile liquid,corrosivity liquid,vicidity liquid,strong acid and strong lye liquid can be measured quickly.
(10)Interface of RS-232C is included.the printer of MZ-P1 is available to connect PC with instrument.
Specifications:
MZ-G150 Liquid Densimeter, Ethanol Hydrometer, Electronic Liquid Density Meter
|
Model |
MZ-G200 |
MZ-G300 |
MZ-G150 |
|
Weighing range: |
0.01-200g |
0.01g~300g |
0.001g-150g |
|
Density accuracy: |
0.001 g/cm3 |
0.001 g/cm3 |
0.0001g/cm3 |
|
Density repeatability: |
±0.003g/cm3 |
±0.001g/cm3 |
±0.0001g/cm3 |
|
Concentration repeatability: |
±0.1%~0.001% optional (repetitive) with error compensation |
||
|
Density, concentration range: |
0.001~99.999g/cm³,0.1%~100% |
||
|
Measurement type:
|
Any fluid liquid can be measured (true solution, dispersion, suspension, emulsion, viscous liquid, slurry, etc.), such as: flux, pine perfume, ethanol, ethylene glycol, methanol, Sulfuric acid, copper sulfate, sodium hydroxide, potassium hydroxide, sodium chloride, alcohol, electrolyte, vegetable oil, grease, resin, flour, soy milk, milk, etc.) |
||
|
Measuring principle: |
The principle of the Archimedes replacement method, the test time is about 5 seconds. |
||
|
Liquid mode measurement step: |
Take about 50ml of sample, put the standard block in the sample, one-click direct reading density (specific gravity), concentration% |
||
|
The results show: |
Liquid density, specific gravity, concentration% |
||
|
Parameter setting: |
Standard block density, concentration linear parameter, specific gravity upper and lower limits can be set |
||
|
Correction method: |
One-button automatic correction |
||
|
Output method: |
RS-232C standard communication interface, convenient test data output and printing |
||
|
Power supply: |
AC~220V / 50HZ(The export power supply needs to be customized, and it can be noted before ordering.) |
||
Accessories:
1.Liquid specialized frame 2. Teflon weight (fall resistant, acid and alkali resistant) 3.Hook 4.50CC beaker 5. Support plate 6. Main-body 7. Calibration weight
8. AC adaptor 9. Thermometer
Measuring Procedure:

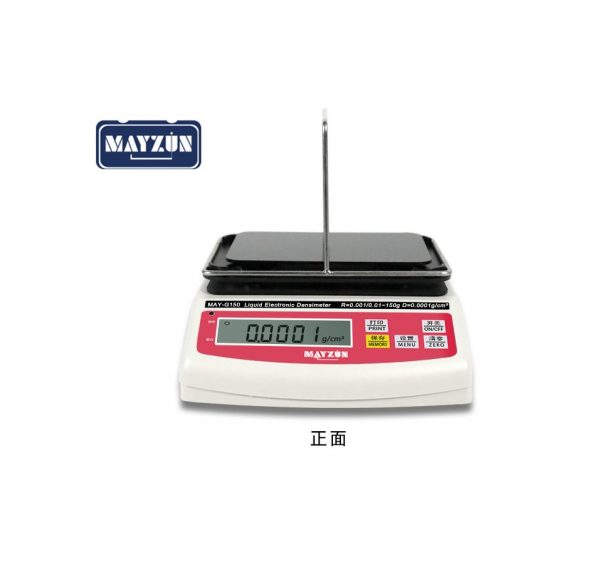

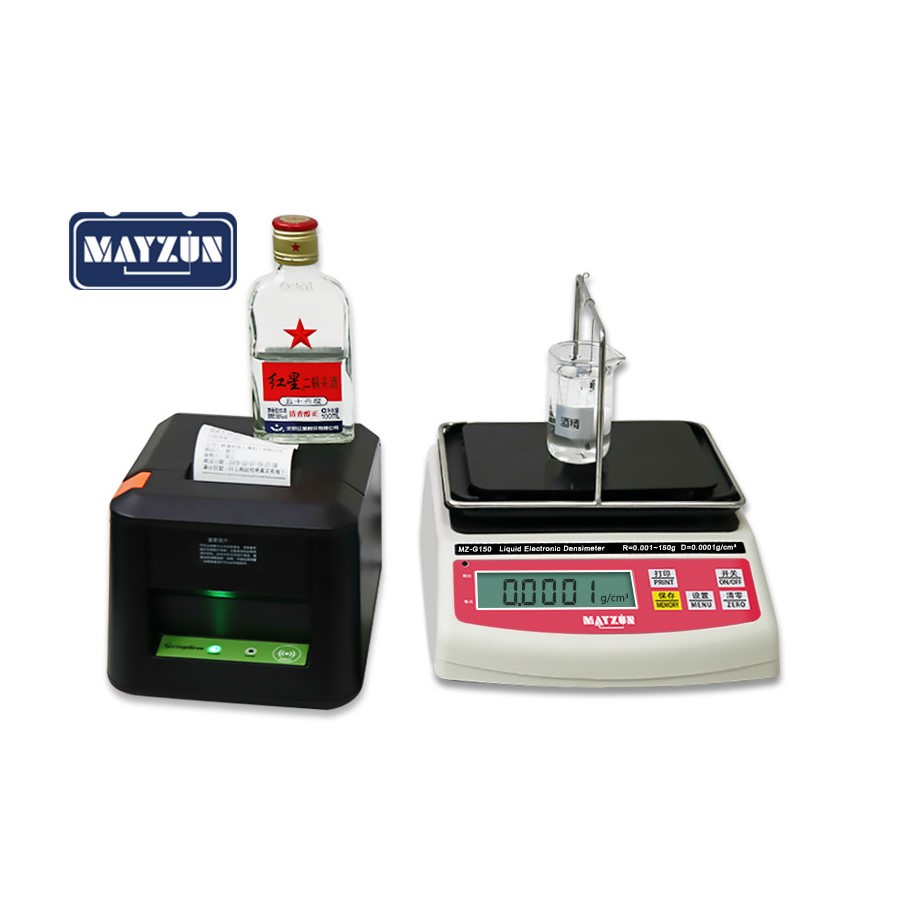

Detailed images:
Mayzum (Our brand) specialized in producing and selling professional densitometer for 11 years and we can provide professional density test instrument solution for you
1. Different program functions can be customized according to customer requirements;
2. We can provide OEM service.
3. Looking for brand agent wholesales all over the world.
