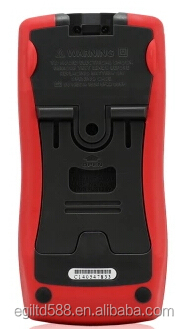

Modern RS-232C Auto Ranging DMM Digital Multimeters UNI-T UT60F AC/DC Digital Multimeter with Frequency/ Duty Cycle/Capacitance
|
Specifications |
Range |
Best Accuracy |
|
Model |
|
UT60F |
|
DC Voltage (V) |
400mV/4V/40V/400V/1000V |
±(0.5%+3) |
|
AC Voltage (V) |
400mV/4V/40V/400V/1000V |
±(1%+2) |
|
Communication bandwidth |
100kHz-3db |
√ |
|
DC Current (A) |
400mA/4000mA/40mA/400mA/10A |
±(1%+2) |
|
AC Current (A) |
400mA/4000mA/40mA/400mA/10A |
±(1.5%+5) |
|
Resistance (Ω) |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
±(1%+2) |
|
Frequency (Hz) |
4kHz/40kHz/400kHz/4MHz/40MHz |
±(0.05%+1) |
|
Capacitance (F) |
4nF/40nF/400nF/4μF/40μF/400μF/4mF |
±(4%+3) |
|
Features |
||
|
Fused 10A Range |
Ceramic fuse |
√ |
|
Full Icon Display |
|
√ |
|
Diode |
|
√ |
|
Continuity Buzzer |
|
√ |
|
Low Battery Display |
|
√ |
|
Input Impedance for DC Voltage Measurement |
10MΩ |
√ |
|
Data Hold |
|
√ |
|
Auto Ranging |
|
√ |
|
Auto/Manual Range |
|
√ |
|
Display Backlight |
|
√ |
|
RS-232 |
|
√ |
|
Max Display |
|
3999 |
|
Auto Power Off |
|
√ |
|
General Characteristic |
||
|
Power |
9V Battery (6F22) |
|
|
LCD Size |
63mmx31mm |
|
|
Product Colour |
Red and Grey |
|
|
Product Net Weight |
320g |
|
|
Product Size |
177mmx85mmx40mm |
|
|
Optional Accessories* |
Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2) |
|
Manua
RS232C Interface Cable
