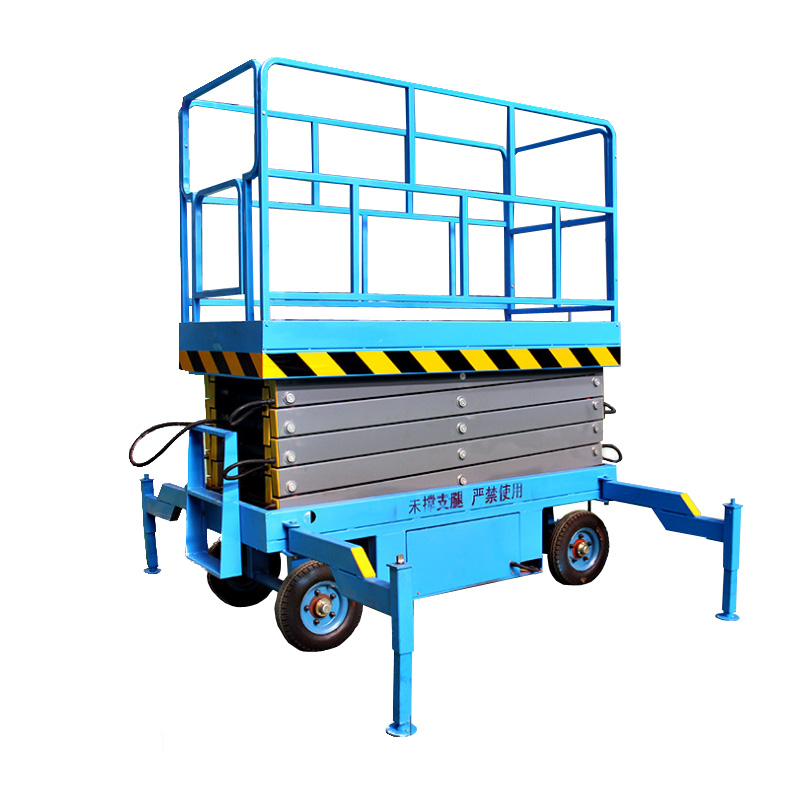

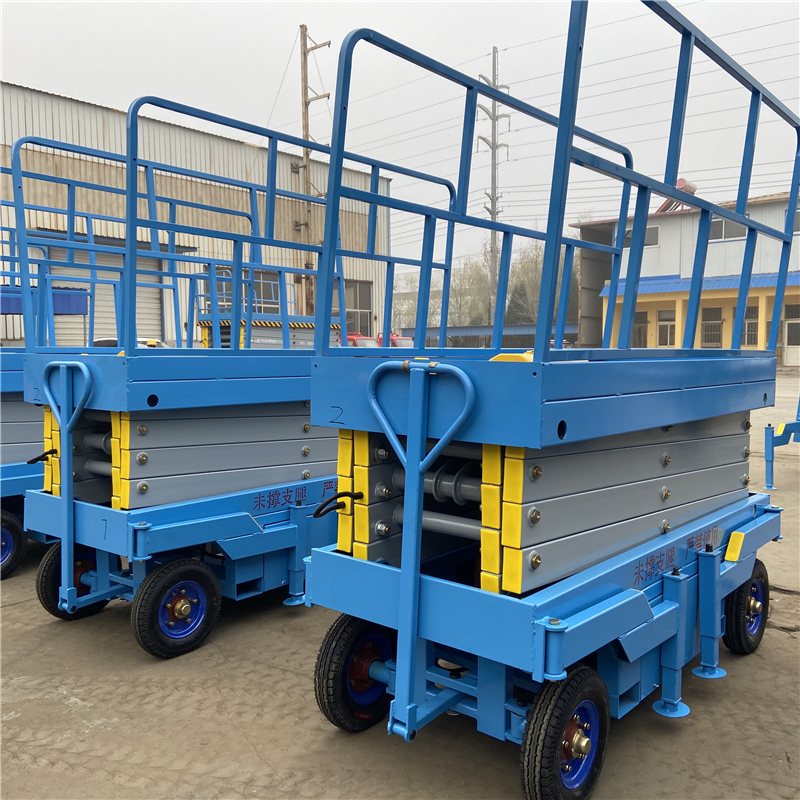

Mobile Scissor Lifting Platform Adopts High-Strength Manganese Steel Structure, Four Wheels Are Easy To Move, The Work Surface Is Wide, And The Bearing Capacity Is High. It Can Support Multiple People To Work At The Same Time. It Makes Aerial Work Safer And More Efficient.
|
1-The Conventional Configuration Is AC Power, And Battery Power Can Be Selected
|
||
|
2-Scissor Aerial Work Platform Features: Lifting Mechanism Of High-Strength
|
||
|
3-Manganese Steel Rectangular Tube Production. With A Safety Device To Prevent
|
||
|
4-Overloading Of The Lift. Provided To Prevent Hydraulic Line Rupture Safety
|
||
|
5-Protection Valve. Emergency Lowering Device In Case Of A Power Outage.
|
||
The Mile Meter Can Clearly See The Speed Per Kilometer, And The Rotary Switch Of AC And DC Can Be Switched By One Button. The Emergency Stop Device Can Ensure Maximum Construction Safety
The Motor Is Imported From The United States And Can Be Made 110V Or 220V, 380V, 50Hz Or 60Hz. Of Course, If You Need To Control The Cost, We Can Choose A Cheaper Chinese Motor Instead.
Made Of Polyurethane Material, It Is Wear-Resistant And Non-Slip, Can Adapt To All-Terrain Such Like Mud Road, Pit Posse Or Sand Terrain

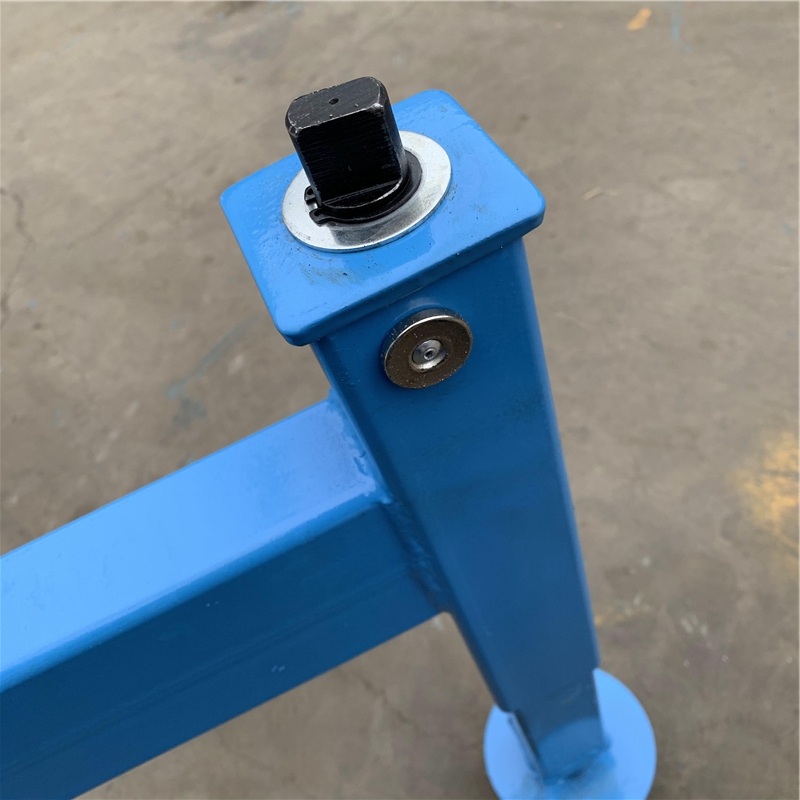

There Are 4 Legs On The Equipment, When The Lift Working In Height, Open Them To Make The Lift Safe, Close Them When The Lift Platform Down
You Can Control The Lift Up And Down By The Remote Control Any Where
|
Model
|
Lifting height
(m)
|
Load
(Kg)
|
Platform Dimension
(mm)
|
Overall dimensions
(mm)
|
Overall weight
(Kg)
|
|||||
|
500kg
|
||||||||||
|
QYCY0.5-4
|
4
|
500
|
2100 * 830
|
2250*950*1200
|
800
|
|||||
|
QYCY0.5-6
|
6
|
500
|
2100 * 830
|
2250 *950*1200
|
880
|
|||||
|
QYCY0.5-7
|
7
|
500
|
2100 * 830
|
2250 *950*1280
|
970
|
|||||
|
QYCY0.5-8
|
8
|
500
|
2100 * 930
|
2250 *1060*1380
|
1050
|
|||||
|
QYCY0.5-9
|
9
|
500
|
2100 * 930
|
2250 *1060*1500
|
1165
|
|||||
|
QYCY0.5-10
|
10
|
500
|
2100 * 1230
|
2250 *1350*1530
|
1360
|
|||||
|
QYCY0.3-11
|
11
|
300
|
2100 * 1230
|
2250 *1350*1650
|
1400
|
|||||
|
QYCY0.5-12
|
12
|
500
|
2550*1530
|
2796*1670*1750
|
2260
|
|||||
|
QYCY0.5-14
|
14
|
500
|
2812*1530
|
3067*1730*1810
|
2486
|
|||||
|
QYCY0.3-16
|
16
|
300
|
2812*1600
|
3067*1810*2080
|
3063
|
|||||
|
QYCY0.3-18
|
18
|
300
|
3070*1600
|
3321*1810*2080
|
3900
|
|||||
|
1000kg
|
||||||||||
|
QYCY1.0-4
|
4
|
1000
|
2100*1200
|
2250*1350*1180
|
1250
|
|||||
|
QYCY1.0-6
|
6
|
1000
|
2100*1200
|
2250*1350*1300
|
1400
|
|||||
|
QYCY1.0-8
|
8
|
1000
|
2100*1200
|
2250*1350*1420
|
1585
|
|||||
|
QYCY1.0-10
|
10
|
1000
|
2100*1200
|
2250*1350*1530
|
1700
|
|||||
|
QYCY1.0-12
|
12
|
1000
|
2550*1530
|
2796*1670*1750
|
2560
|
|||||
|
QYCY1.0-14
|
14
|
1000
|
2812*1600
|
3067*1810*1900
|
3230
|
|||||
Pallet Packaging
Wooden Packing
Naked Packing
Marine Transportation, Rail Transportation, Automobile Transportation
