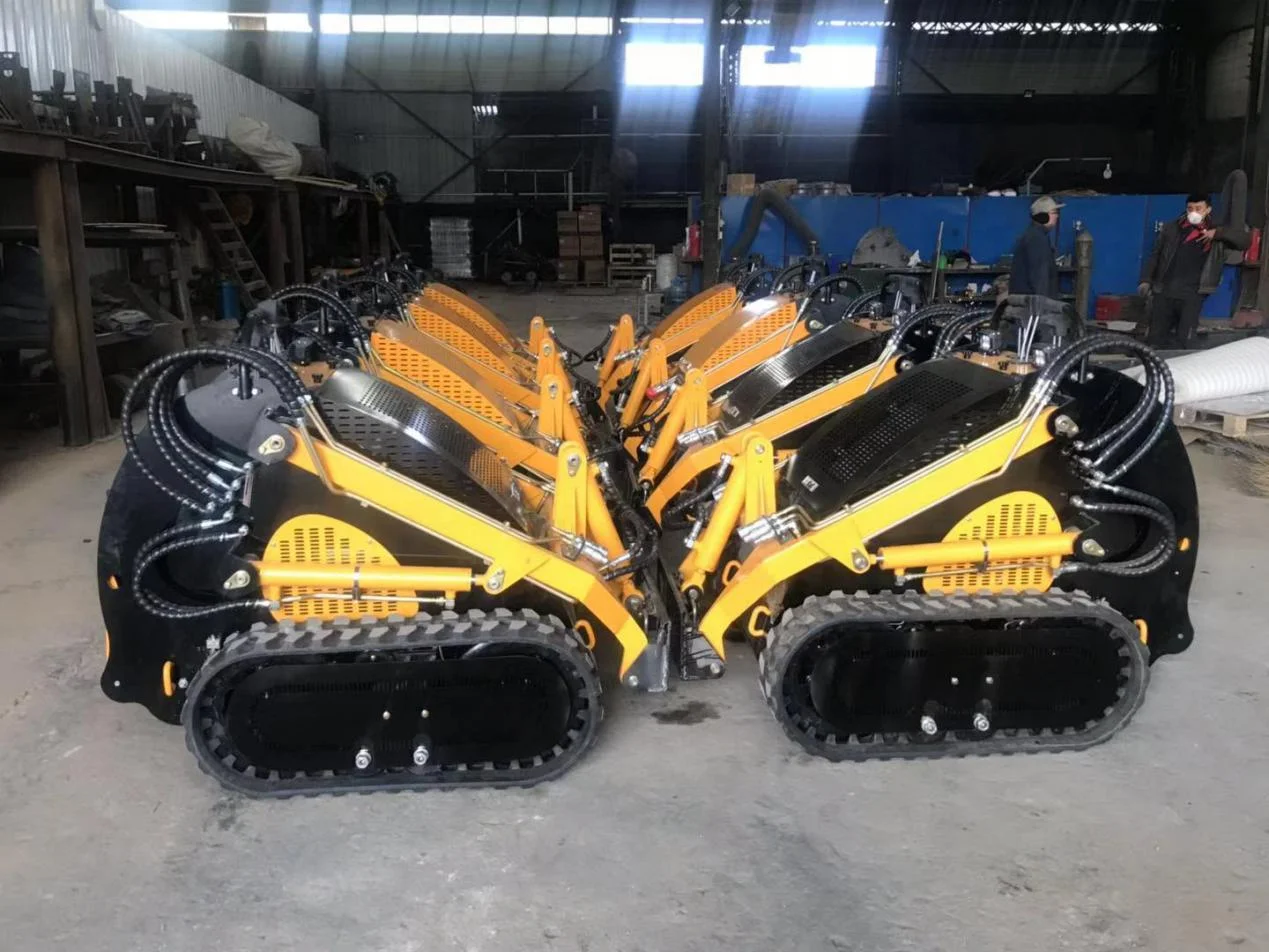

Free shipping skidsteer Rubber tracked crawler type skid steer loader with Trencher Pallet Fork
Product Description



Specification

Item
|
Metric
|
Inch
|
Max working height (H3)
|
2065mm
|
81.3inch
|
Max pin height (H2)
|
1803 mm
|
71 inch
|
Max discharge height (H1)
|
1386 mm
|
54.6 inch
|
The highest unload distance(E)
|
471mm
|
18.5 inch
|
Max angle of unloading(α3)
|
32°
|
32°
|
Retracting angle (α2)
|
33°
|
33°
|
Angle of departure (α1)
|
18°
|
18°
|
Total height(H)
|
1309mm
|
51.5inch
|
The height from the ground(H1)
|
123mm
|
4.8inch
|
wheelbase(L1)
|
690 mm
|
27.2 inch
|
No bucket height(L3)
|
1778 mm
|
70.0 inch
|
Total width (B2)
|
800 mm
|
31.5 inch
|
Bucket width(B1)
|
820 mm
|
32.3inch
|
Total length (L)(with bucket )
|
2210 mm
|
87inch
|
Turning radius (R)
|
1236mm
|
48.7 inch
|
Main performance parameter :
Model
|
HY280
|
||||||||||||
Engine
|
Rated power (KW)
|
American Briggs&Stratton engine 21HP/23HP
|
|||||||||||
Standard speed (rpm)
|
3600
|
||||||||||||
noise(Db)
|
≤95
|
||||||||||||
Hydraulic system
|
System pressure (Mpa)
|
17
|
|||||||||||
Working time (s)
|
Raise
|
Tipping
|
Low
|
||||||||||
4.27
|
1.34
|
3.31
|
|||||||||||
Performance parameter
|
Metric
|
Inch
|
|||||||||||
Load weight
|
200 Kg
|
||||||||||||
Bucket capacity
|
0.12 m3
|
4.26 ft3
|
|||||||||||
Max lifting power
|
375 Kg
|
827 Lb
|
|||||||||||
Speed
|
0-5.5 Km/h
|
0-3.4 mlie/h
|
|||||||||||
Operating weight
|
Track
tire |
855kg
|
1884 Lb
|
