Name: M3-M16 Flex Arm Electrical Tapping Machine flex arm tapping screws machine
SKU: 815596019181
Price: 5853.90 SAR
Availability: InStock

M3-M16 Flex Arm Electrical Tapping Machine flex arm tapping screws machine

ر.س5,853.90

Compare

Request quotation for: M3-M16 Flex Arm Electrical Tapping Machine flex arm tapping screws machine

Company Profile

Dezhou Borui Precision Co.,Ltd have 2 factory.
The 1th factory produce machine,such as tapping machine,milling machine,drilling machine;
The 2th factory mainly produce precision machine tool accessories which meet various international standards, including hundreds of products such as collets, tool holders, precision vise ,lathe chucks and so on. Especially the tool holders with HSK, VDI, and SK shank.

Product Description

Automatic Universal Servo Motor Electric Tapping Machine With Touch Screen

1.Adopts servo drive control,with only the torque protection
2.HD Touch Screen ,simple and flexible to operate.
3.Three working modes (Manual mode, Automatic mode, Linkage mode) are available for your choice.
4.Automatic mode can control tapping depth, The depth is automatically controlled by the controller.
5.The arm can be rotate 360 degrees, move up and down, back and forth easily.
6.Repetitive positioning rapid, tapping speed, high production efficiency.
7. Clamshell installation dustproof and anti-collision.
8. Each joint is fitted with a copper sleeve and bearing for greater.

Model	M3-M12	M3-M16	M6-M24	M6-M36	M6-M42
Voltage	220v/50HZ
Power	600w	1200w	2000w	2000W	2000W
Tapping range	M3-M16	M6-M30	M6-M36	M6-M36	M6-M42
Quick Change tapping Chuck	6PCS	8PSC	11PCS	11PCS	12PCS
Work way	vertical/universal
Radius	1100mm	1100mm	1200mm	1200mm	1200mm
Max speed(r/min)	320r/min	300r/min	200r/min	150r/min	250r/min
Weight	29kg	29kg	50kg	52kg	55kg
Control model	touch screen/Button

Details

01 Powerful Power Design

With servo motor,the output is stable.

the motor protection device protects the motor reduce to convert the motor into torque output,the tapping is strong and powerful.
the head can rotate 360° to realize vertical and side tapping.

02 Cantilever+Double Air Spring

1.The machine head is supported by Double Cantilever ,so the machine head is more stable

2.,Flexible central axis rotation naturally

03.Intelligent Servo System

Touch screen interface, clearly operate interface, parameter adjustment is convenient and quick, three kinds of tapping modes.

04.Graphite Bearing Joint

1.double layer wear resistant graphite copper sleeve
2.Rapid induction &easy set up date
3.Longer service life

Universal Tapping Machine

The machine head is rotated from 0° to 360°，it could tap vertical 90°，horizontal 45°

Vertical Tapping Machine

The machine head can’t be rotary,fixed angle
it is only tapped one surface.

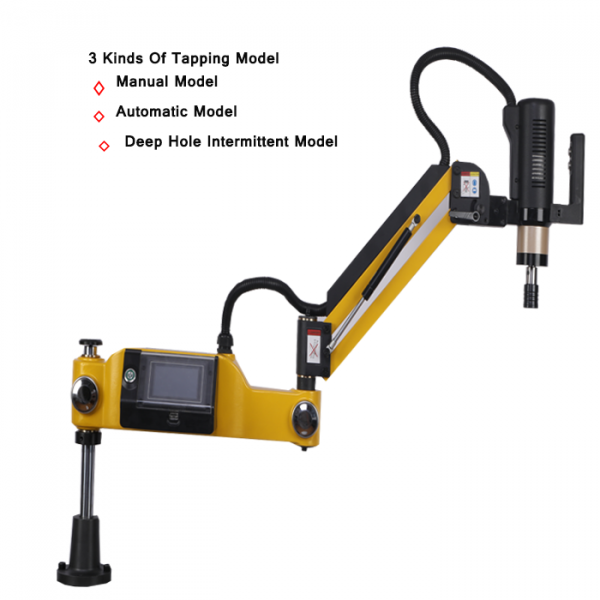

1.Manual Mode
Set the tapping speed and thread by yourself,observe the screen digital display,and press the exit button,manually after the depth reaches the required depth(suitable for different single processing)

2.Automatic Mode

Just input tapping depth,speed,exit speed and torque value to realize automatic tapping operation(suitable for batch processing)
3.Deep hole intermittent mode
This mode is mainly used for deep hole tapping,numerical control computer chip simulation manual processing method,while deep hole processing,while removing debris processing,to ensure the tapping effect.

Standards Accessories
