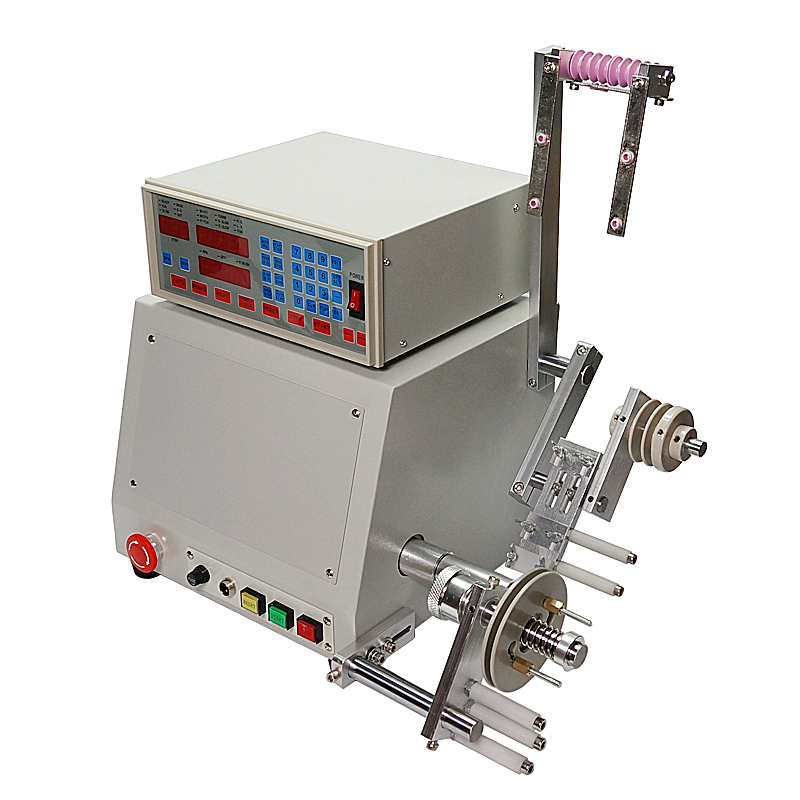

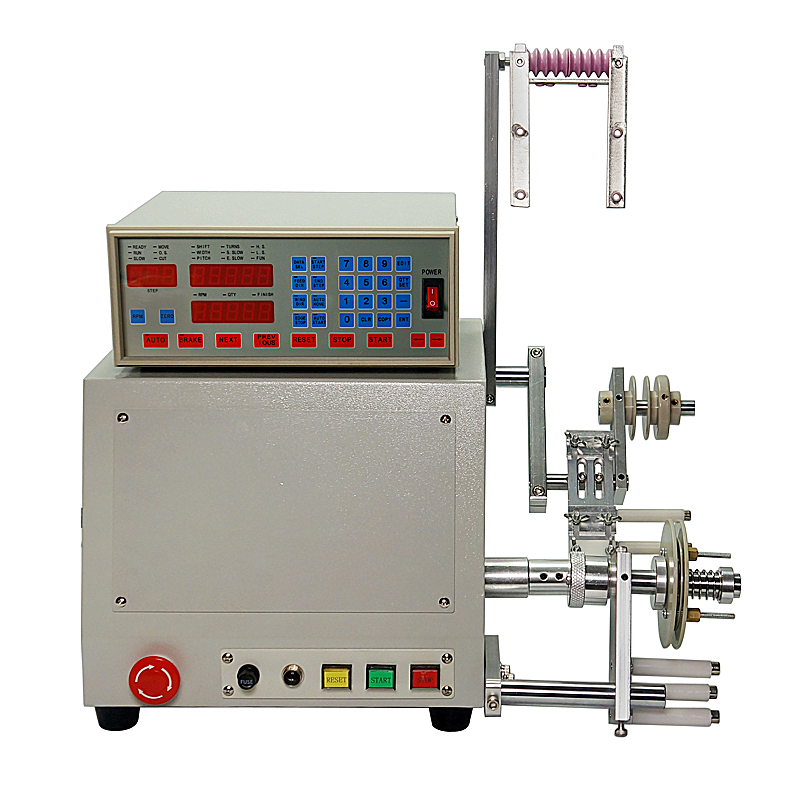

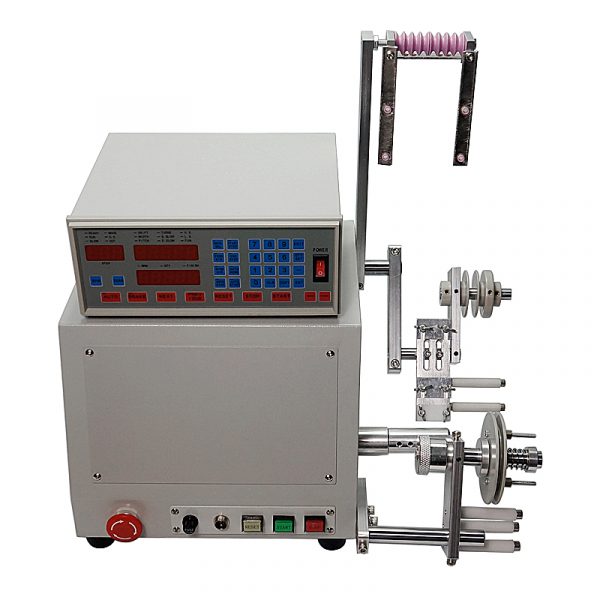

LY 820 High quality New Computer C Automatic Coil Winder Winding Machine for 0.2-3.0mm wire 220V/110V 750W
New Computer C Automatic Coil Winder Winding Machine for 0.2-3.0mm wire 750W
Notice : when the parcel arrived to your customs ,please pay the
tax and pick up the parcel ,we are not responsible for
any customs duty or import tax
if your place is remote ,then need to pay 35usd .
Feature
1.This series of automatic filament winder computer controller adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process .
2.Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipments ,excessive speed tracking and the calibration of the speed.
3.Has vernier caliper functions and can measure the winding width and starting point easily.
4.The speed of the cop motor can be changed at random when in operation , and the strand oscillator also can synchronize with it.
5.After the startup of the cop motor , the time of speed growing can be changed at random depend on the type of the machines.
6.Obtain winding excessive speed detecting function , and it can reduce the winding speed automatically to the most steady state.
7.Can settle data: starting point, wire gage, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)

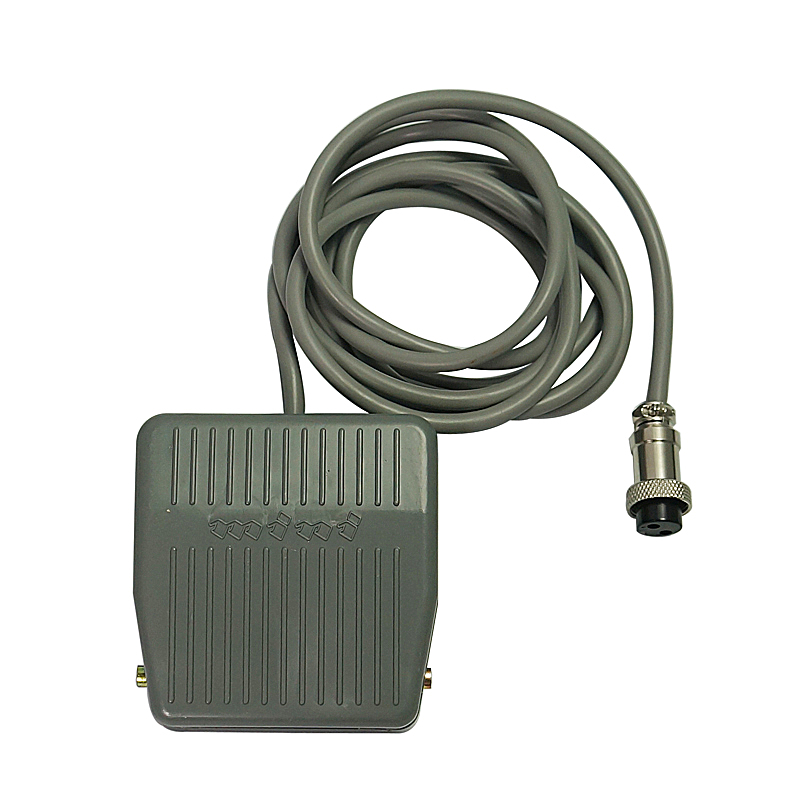

8.Foot-switch connection for better efficiency.
9.Winding parameters and options can be set independently for each step.
10.Memory capacity accommodates 999 steps of parameters with off-power memory retention.
Specification
power voltage:single phase AC 220V 50HZ
Cop motor:three phase machine 750W(1/2hp)
winding displacement machine:step-servo motor
Brand:LY
Spindle motor: Brushless DC
Numbers of cop:1
Windable wire gage:0.2-3.0mm
Maximum winding width:190mm
Maximum screw diameter:300mm
Maximum turning speed of cop:1500circles/minute,speed adjust function
Storable winding groups:999 groups
Counting resolution:0.1 circle
Complete appliance weight:48kg
Size:530*500*400mm
Packaging:
Packaging material: Carton/Wooden case with foam inside.
Shipping:
A. 3-5 workdays shipping from China by Air/Express(DHL,FedEx,UPS,EMS etc.)
B. 3-5 workdays shipping from UK Warehouse to European union countries.No need to pay for customs duties and VAT.
C. 25-30 workdays shipping from China to Russian customers. No need to pay for customs duties and VAT.
D. We can arrange shipment by sea. Minium CBM requirement : 1 CBM
1.We provide you the friendly English User manual or operating videos for free.
2.24 hours technical support by email or calling.
3.Warranty: 1 year free, 2-3 years cost price and free technical support always.
4.Free training to make sure you master the operating of our products.
5. OEM/ODM accept . But the MOQ of OEM/ODM is 100 sets.
LyBGA factory is located in Shenzhen, China.
Our factory owns 2 brands , Ly and Bauer.
We has 10 years experiences in manufacturing and exporting BGA rework stations.
Our BGA rework stations , such Ly IR6000, Ly IR6500, Ly IR9000,Ly IR-PRO-SC, Ly IR8000, Ly HR560, Ly HR560C, Ly HR500, Ly SV550C, Bauer IR-PRO-SCC ,Bauer OMEGA XD …
CNC machines like cnc 3020/4030/6040/9060 …series products ,Mobile LCD separating stations like 946D /947B /950V/948V/948B…are hot sale in the world, especially in these countries from North and South American,European and Asian.
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
