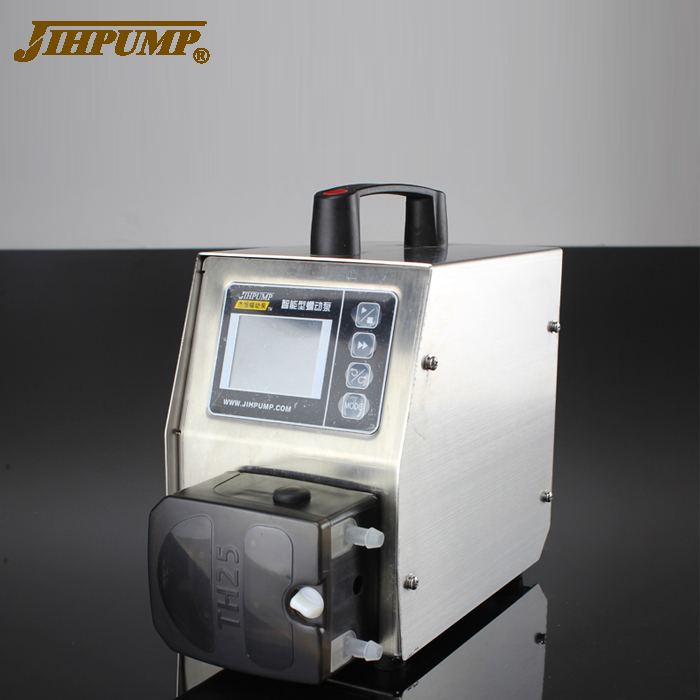

2 Head Semi Automatic Peristaltic Pump Liquid Filling Machine For Liquid Perfume Water Juice Essential Oil
Optional Pump Head
Optional Accessories
Foot switch Anti-float head Filling needle
Function
1. DG, 153Yx and 253Yx pump heads can be in single or double heads.
2. 153Yx and 253Yx pump head of black PPS material can resist strong corrosion, light color PSU material pump head can resist general chemical corrosion.
3. The pump has a timer counting and storage function, which can set the running, stopping time and program times, which is convenient for dispensing and delay shutdown.
4. Membrane keypad operation: start and stop, forward and reverse, speed up/down, timing and dispensing settings
5. External signal control: accept foot switch, analog (0-5V 0-10V 4-20mA) signal and MODBUS general protocol
6. Standard composition: drive, pump head, silicone tube (2 meters)
7. Optional parts/accessories: foot switch, spare tube, filling needle, tube fitting, anti-floating countersunk head, etc.
Feature
|
Item |
Feature |
|||||||||
|
Application |
Lab, sampling, filling, industrial process, biomedicine, chemical environmental protection, juice beverage, printing, atomic energy etc. |
|||||||||
|
Pump housing |
Outer housing is engineering plastics, inner housing is powder painting carbon steel |
|||||||||
|
Drive |
Stepper motor |
|||||||||
|
Display |
Touch screen display |
|||||||||
|
Pump head |
153Yx, 253Yx, DG, DGx |
|||||||||
|
Panel control |
Membrane keypad and rotary switch |
|||||||||
|
External control |
Foot switch, 0.5-5V/10V, 4-20mA, ModBus communication |
|||||||||
|
Function |
Start/stop, cw/ccw rotation, up/down speed |
|||||||||
|
Power supply |
220VAC/50Hz |
|||||||||
|
IP rating |
IP31 |
|||||||||
|
Dimension |
L275*W160*H150 |
|||||||||
|
Reference flow range(ml/min,speed 0-300rpm,medium:water) |
||||||||||
|
Pump model No. |
BTC-300CA/153Yx |
|||||||||
|
Tube |
14# |
16# |
25# |
17# |
18# |
|||||
|
ID×wall (mm) |
1.6×1.6 |
3.1×1.3 |
4.8×1.6 |
6.4×1.6 |
7.9×1.6 |
|||||
|
Flow rate (ml/min) |
0.03-63 |
0.08-230 |
0.17-500 |
0.3-890 |
0.4-1170 |
|||||
|
Pump model No. |

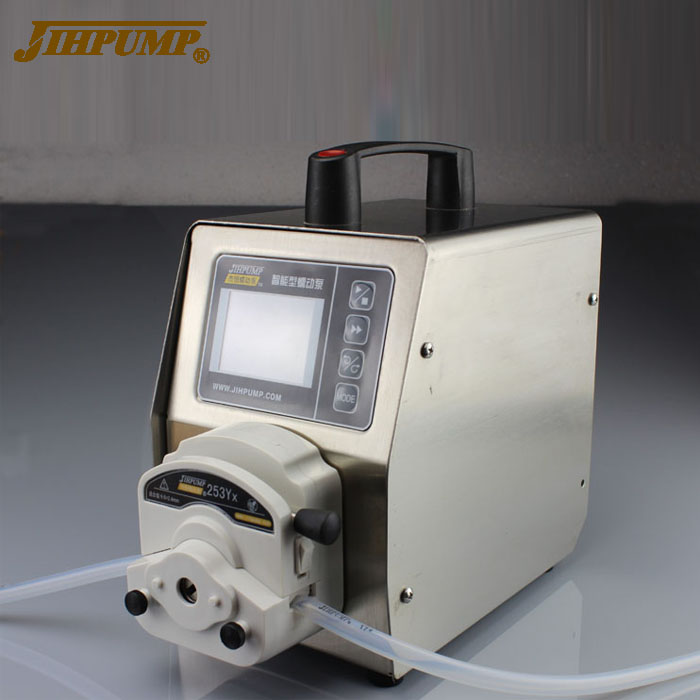

BTC-300CA/253Yx |
|||||||||
|
Tube |
15# |
24# |
35# |
36# |
||||||
|
ID×wall (mm) |
4.8×2.4 |
6.4×2.4 |
7.9×2.4 |
9.6×2.4 |
||||||
|
Flow rate (ml/min) |
0.2-445 |
0.3-840 |
0.4-1170 |
0.5-1500 |
||||||
|
Pump model No. |
BTC-300CA/DG |
|||||||||
|
Tube |
1*1 |
2*1 |
3*1 |
|||||||
|
ID×wall (mm) |
2×1 |
2×1 |
3×1 |
|||||||
|
Flow rate (ml/min) |
0-10.09 |
0-29.43 |
0-49.23 |
|||||||
|
Pump model No. |
BTC-300CA/DGx |
|||||||||
|
Tube |
14# |
16# |
25# |
|||||||
|
ID×wall (mm) |
1.6×1.6 |
3.1×1.3 |
4.8×1.6 |
|||||||
|
Flow rate (ml/min) |
0-77 |
0-233 |
0-430 |
|||||||
Dimension
Certification
CE
