Detailed Parameters
|
Drilling capacity
|
Drilling depth for water well
|
280m（152mm~203mm）
|
|
|
Wireline coring with 75mm Dia.
|
500m
|
||
|
Borehole (Drill bit) dia.
|
Ø75～Ø350mm
|
||
|
Drilling angle
|
90°
|
||
|
Drive head
|
Lifting capacity
|
100kN
|
|
|
Thrusting capacity
|
50kN
|
||
|
Rotary speed RPM
|
Forward：33、63、113、163、192、237、303 、537、906、1120r/min
|
||
|
Backward：37、180 r/min
|
|||
|
Max. Torque
|
9800N.m
|
||
|
Power Unit
|
Engine Model
|
YN27
|
|
|
Rated power/speed
|
42kW/ 2400r/min
|
||
|
Mechanical winch capacity
|
4.5Ton
|
||
|
Drill pipe
|
Drill pipe dia.
|
Ø50/ Ø60 / Ø76/ Ø89mm NQ/ HQ /PQ
|
|
|
Drill pipe length
|
2000mm
|
||
|
Mud pump
|
BW160/ BW200/ BW250
|
||
|
Air compressor
|
Air consumption
|
16～35m3/min
|
|
|
Air pressure
|
10.5～24.6bar
|
||
|
Crawler chassis
|
Walking speed
|
0～2 km/h
|
|
|
Climbing angle
|
Max. 25°~30°
|
||
|
Dimension
|
Transport
|
4600*1900*2540mm
|
|
|
Working
|
3800*2200*5700mm
|
||
|
Weight with steel crawler
|
3500kg
|
||

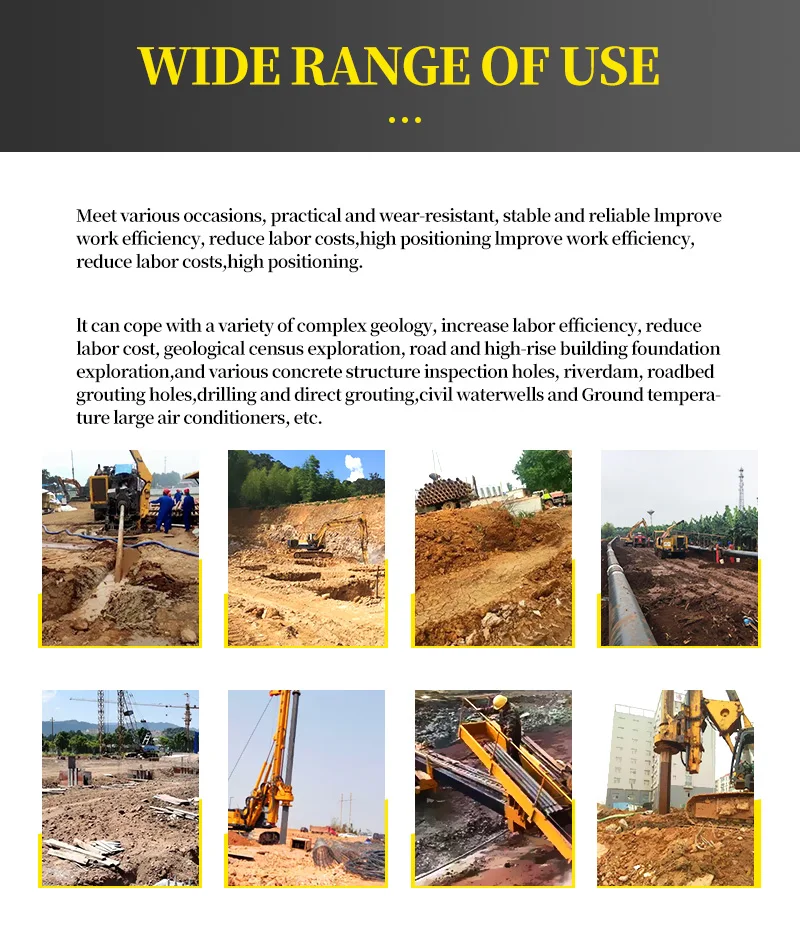

Meet various occasions, practical and wear resistant, stable and reliable lmprove work eficiency, reduce labor costs,high positioning Improve work efficiency, reduce labor costs,high positioning. lt can cope with a variety of complex geology, increase labor efficiency, reduce labor cost, geological census exploration, road and high -rise building foundation exploration,and various concrete structure inspection holes, riverdam, roadbed grouting holes, drilling and direct grouting, civil waterwells and Ground temperature large air conditioners, etc.
