Product Description

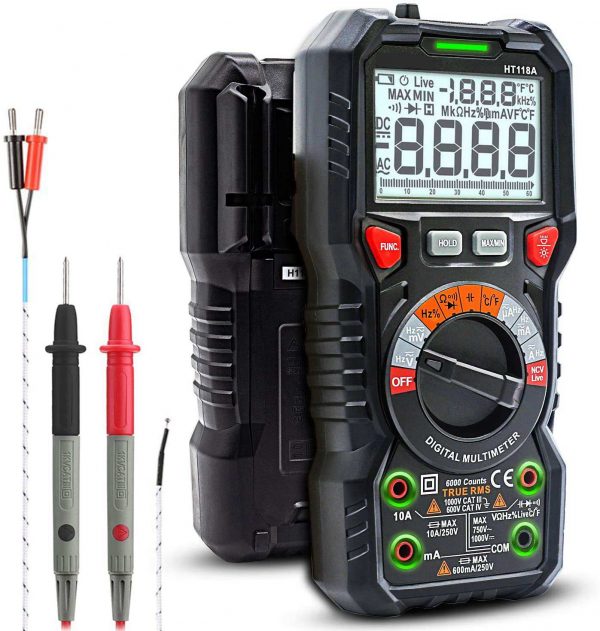

HT118A Digital Multimeter
An advanced multimeter designed to be used safely and accurately by electricians at work places or homeowner and DIYer who need more capabilities than the standard measuring tool.
* Light up the terminals: LED indication light as input terminal guidance
* CAT III 1000V, CAT 600V safety rating
* Double insulation, robust outer case

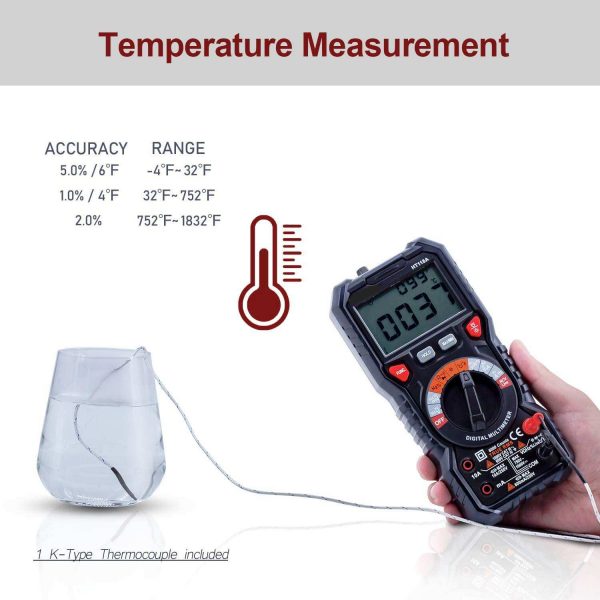

* Includes test leads, K-Type thermocouple, batteries and user manual
* Light up the terminals: LED indication light as input terminal guidance
* CAT III 1000V, CAT 600V safety rating
* Double insulation, robust outer case
* Includes test leads, K-Type thermocouple, batteries and user manual
Main functions
AutoRange/Analog Bar Display/True RMS/NCV/Data hold/Back light/LED lamp/Diode test/Triode test/Continuity/Over load protection/Low Battery Indication/Auto Power Off/Short-circuit protection.
NCV:
Place the multimeter close to the AC voltage source (no wire is required) and the multimeter will display the voltage and give a corresponding prompt.
HTN full-viewing angle screen, 180 degree viewing angle. Has two LED backlights, Display is brighter than other sellers’. When the measured voltage exceeds 80V or current exceeds 1A, the white backlight will turn orange as a danger warning.
Wide range of applications: car repair, industrial circuit inspection, home circuit check.
|
Safety Level/Certification
|
IEC-61010-1 CATⅢ 1000V, CAT IV 600V, double insulation
|
|
Display
|
True RMS, 6000 counts, 3 5/6 digits
|
|
Overload Display
|
Display OL
|
|
DC Voltage
|
600mV/6V/60V/600V±(0.5%+3), 1000V ±(0.5%+3)
|
|
AC Voltage
|
600mV/6V/60V/600V/750V±(0.8%+5)
|
|
DC Current
|
600μA/6000μA/60mA/600mA/10A±(1.2%+3)
|
|
AC Current
|
600μA/6000μA/60mA/600mA/10A±(1.5%+3)
|
|
Resistance
|
600Ω/6KΩ/60KΩ/600KΩ/±(1.0%+3),6MΩ/60MΩ ±(1.5%+3)
|
|
Capacitance
|
10nf/100nf/1000nf/10uf/100uf/1000uf±(4.0%+5), 10MF/100MF±(5.0%+5)
|
|
Frequency/Duty
|
10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz ±(1.0%+3),10MHz/±(3.0%+3)
|
Package Content:
1 x HT118A Multimeter
1 x Test Leads
2 x AA Battery
1 x User Manual
1x Thermocouple
1 x Test Leads
2 x AA Battery
1 x User Manual
1x Thermocouple
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Foshan JDY Co.Ltd specialise in hand tools over 10 years, we provide one-stop purchase on various kind of hand tools such as Screwdriver, Wrench, Plier……Please contact us to get more information and discount!!
FAQ
Q1. Can I use Alibaba Trade Assurance?
A1. Of course, We support Trade Assurance services.
Q2. Can I get a sample first to check the quality before order?
A2. We can provide an free sample. But we should charge the sample fee. And we will return after order confirmed.Send an inquiry Now!
Q3. Do you have any MOQ?
A3. Yes,we accept LOW MOQ, different MOQ is depending on different products.
Q4. If I want to custom my own Logo, can you do it?
A4. Yes. We have rich experience on OEM service. Send an inquiry with your demand now, and we will reply you in 12 hours.
Reviews
There are no reviews yet.
