Product Description

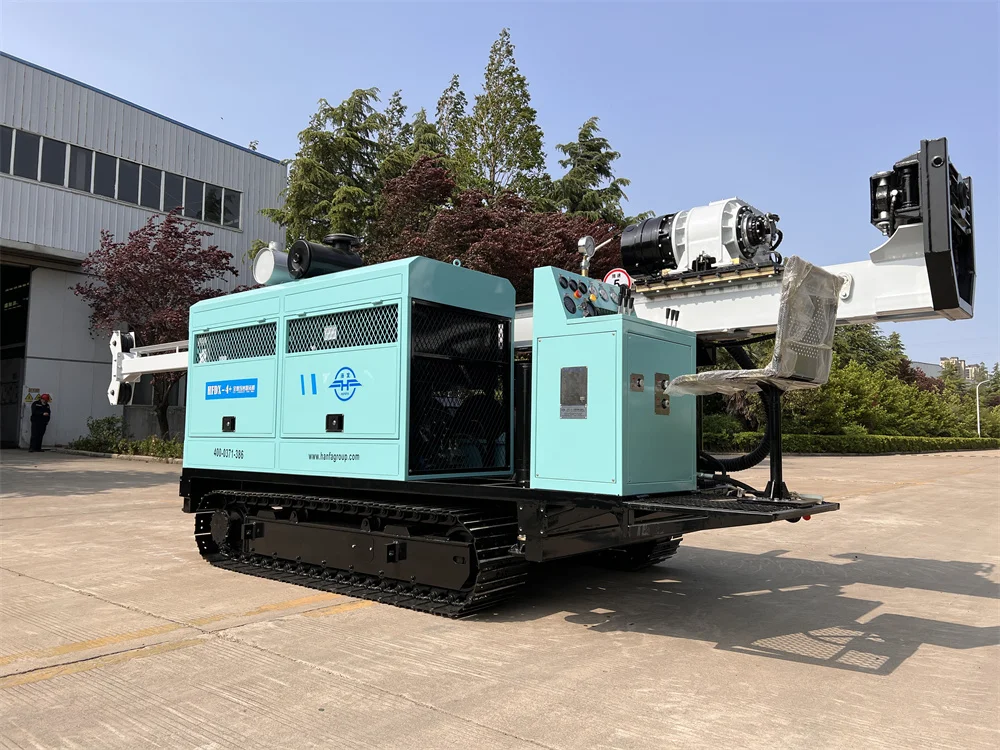

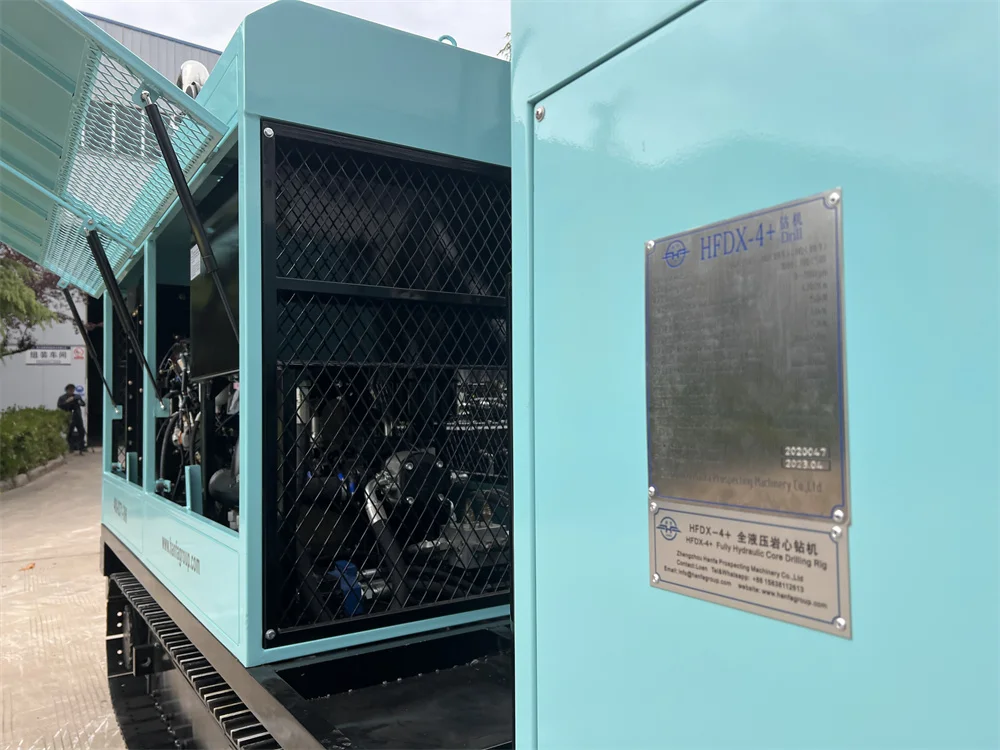

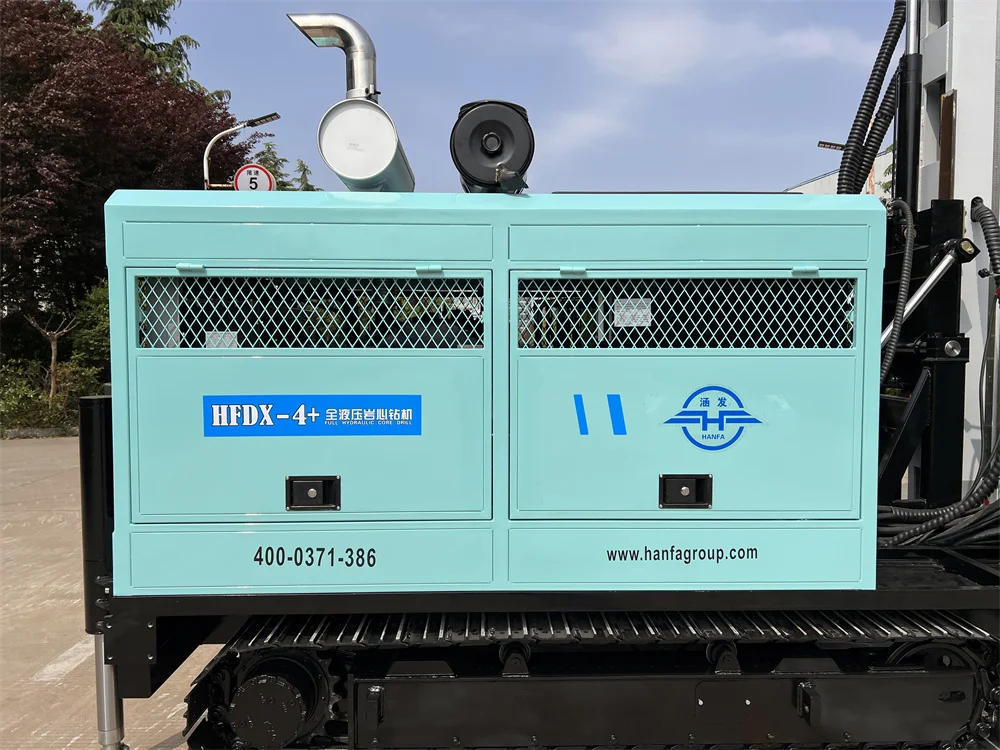

HFDX-4+ full hydraulic core drilling rig

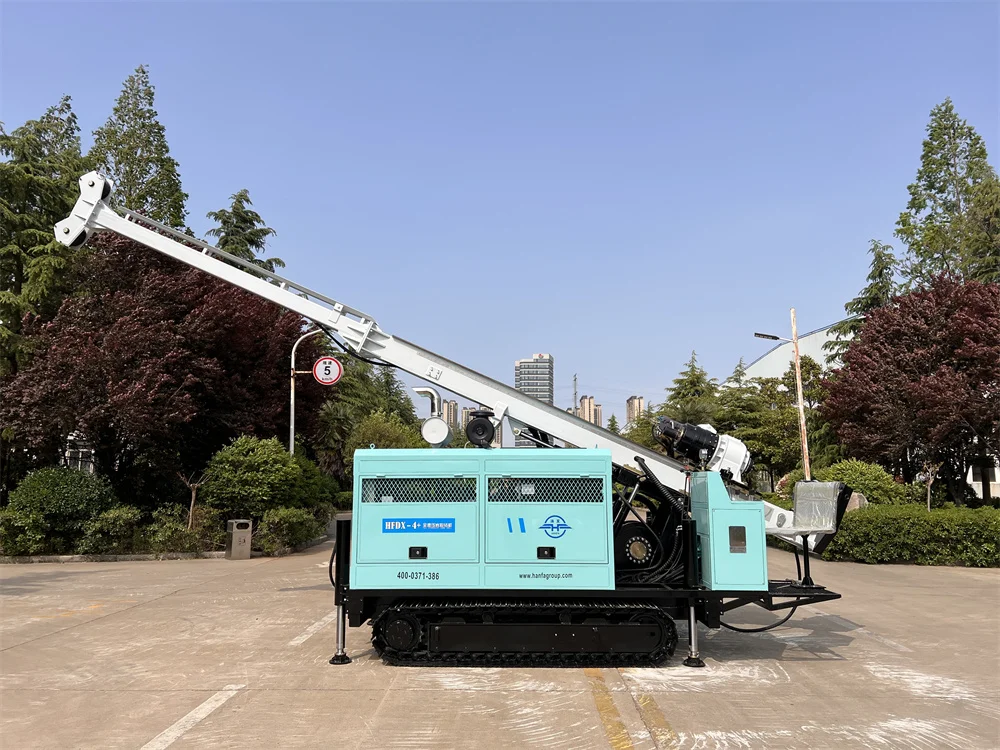

The core drill rig of full hydraulic and rotor adopted the technology of wire-line coring has been the dominant type rig for solid mineral deposits prospecting in developed counties of the world. The rig is light, simple in structure, and easy for transportation. The mast has the functions of sliding and touching ground, the spindle lifted and lowered with hydraulic cylinder.
It could be folded for transport and relocation. The spindle hole is in large diameter.
Application
HFDX-4+ full hydraulic core drilling rig is applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and for other industries.
It could be folded for transport and relocation. The spindle hole is in large diameter.
Application
HFDX-4+ full hydraulic core drilling rig is applied to exploration and prospecting of geology, metallurgy, coal, petroleum, natural gas, groundwater and for other industries.
If you need this drilling rig, please contact us, this is my WhatsApp, you can also send me an inquiry, we will help you make more money.
WhatsApp：+8617739786040
E-mail：info@hanfagroup.com
WhatsApp：+8617739786040
E-mail：info@hanfagroup.com
phone：0086-371-55019599

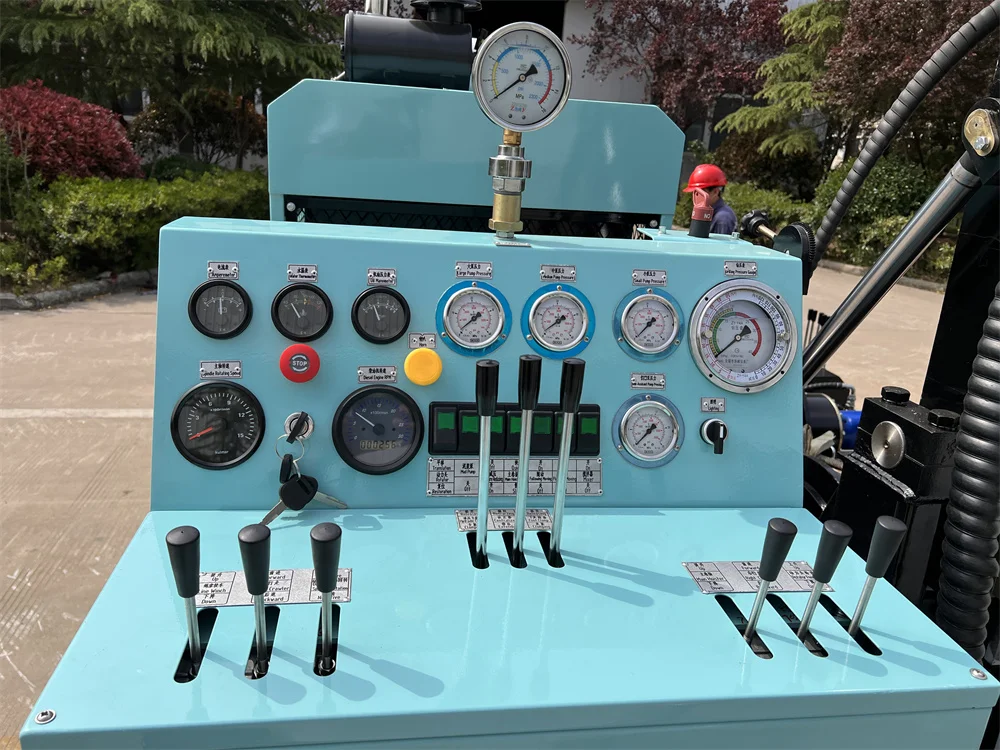

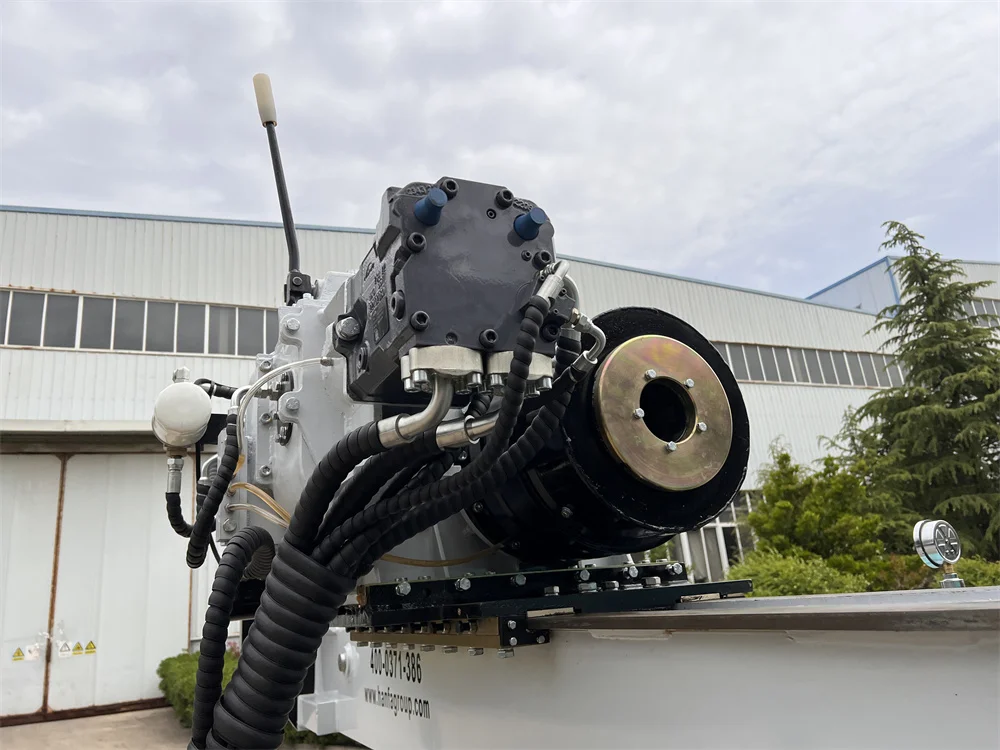

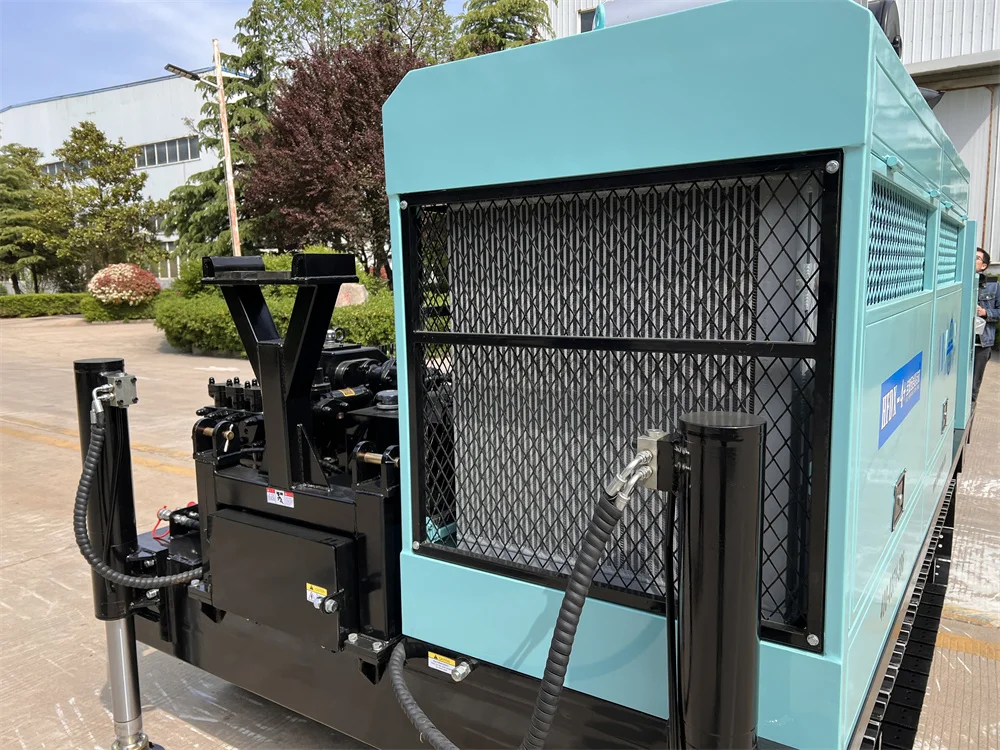

Detailed Images
|

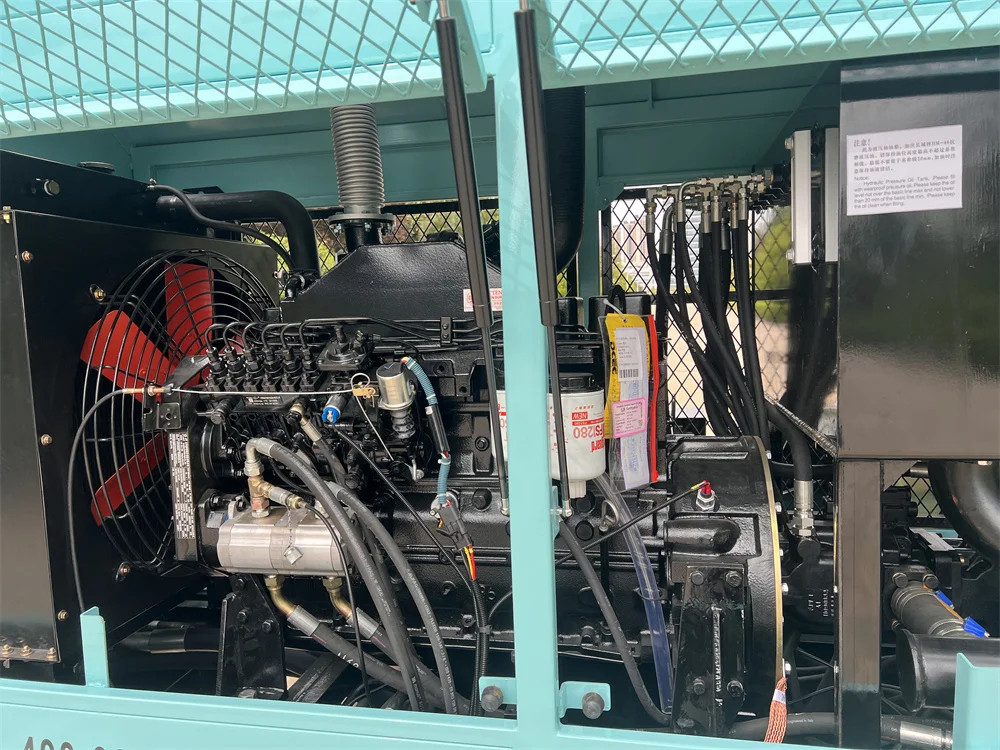

Diesel Engine
|
Model
|
Cummins 6BTA5.9-C180 (turbocharged
|
|
|
and charge water cooled)
|
|||
|
Displacement
|
5.9L (1.56 US Gallons)
|
||
|
Power
|
132Kw (180HP)
|
||
|
Rated RPM(Factory setting)
|
2200rpm
|
||
|
Drilling Capacity
|
BQ
|
1000m(3280ft)
|
|
|
NQ
|
700m(2296ft)
|
||
|
HQ 500m(1640ft)
|
500m(1640 feet)
|
||
|

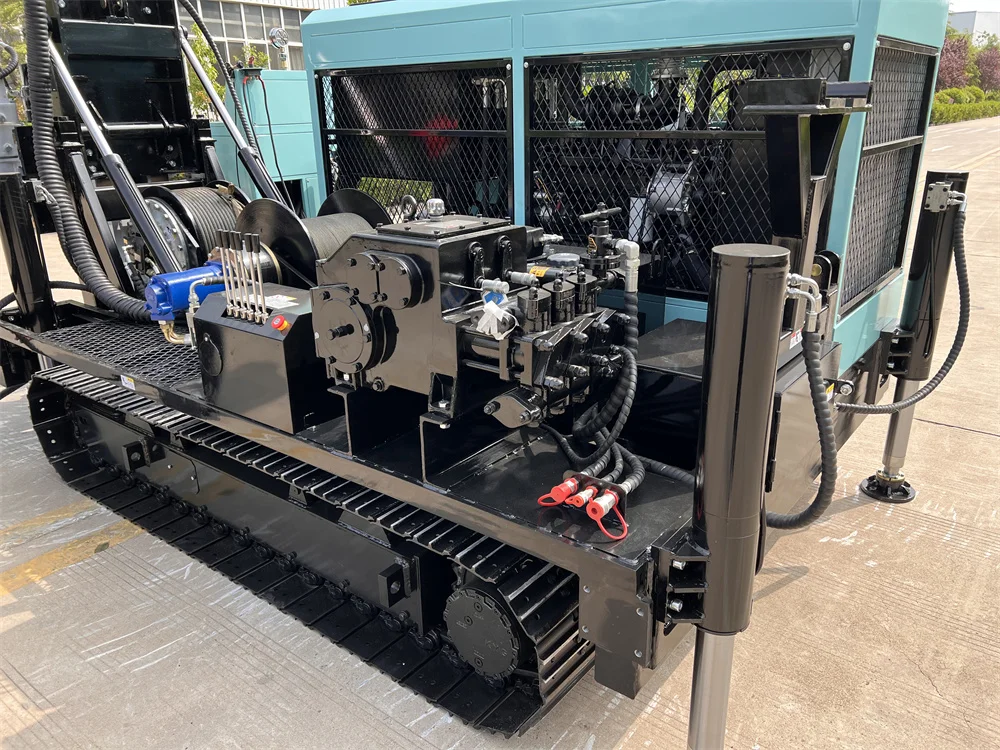

Mud Pump
|
Type
|
Reciprocating pump Triplex Plunger
|
|
|
Model
|
BW160/10
|
||
|
Stroke
|
70mm(2.76 inch)
|
||
|
Discharge pressure
|
2.5, 4.0, 6.5, 10.0 Mpa
|
||
|
(363, 580, 943, 1450 psi)
|
|||
|
Foot Clamp
|
Clamping Scope
|
55.5-110 mm(2.19-4.33 inch)
|
|
|
through hole Ф154mm(6.06 inch)
|
|||
|
Others
|
Weight (platform type)
|
9300 Kg(20502 lb)
|
|
|
Dimensions (L×W×H)
|
5100×2200×2450mm
|
||
|
16.73×7.21×8.03ft
|
|||
|
Transport Way
|
Crawler
|
||
Deliver
Working Site
