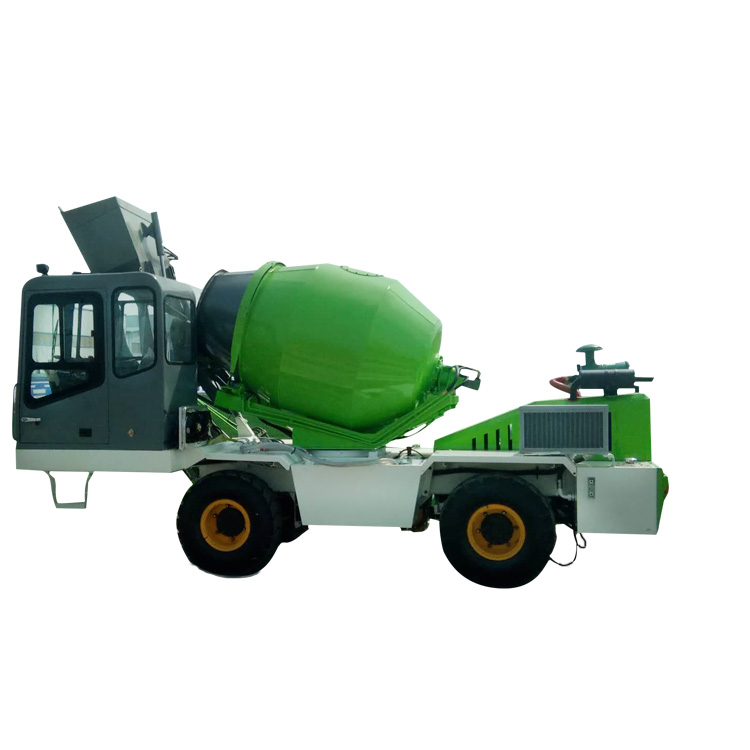

HAOHONG 2.6CBM 4CBM self loading concrete mixer truck price
Self loading concrete mixers are used to produce and transport concrete, because of self-loading design, productivity is highly improved! During project, it loads materials by self, don’t need any other auxiliary equipment, and it has small volume, four wheels-driving and steering. What’s more, it can discharge concrete at 270 degrees, which is much more convenient in all kinds of concrete production construction site, particularly small and narrow construction sites, very cost-saving for the majority of users. Self loading concrete mixer truck is widely used to mix plastic concrete and semi-plastic concrete. Our self loading concrete mixers have many types for your reference:1.6cub,2.6cub,3cub,4cub.
|
HAOHONG Self-loading concrete mixer truck |
|
|
Vehicle |
|
|
Mobile |
HH-2.6 |
|
Net |
6400kg |
|
Transmission |
Hydraulic |
|
4X4 |
|
|
Brake |
Pneumatic brake |
|
Wheelbase |
Front and rear independent system |
|
2200mm |
|
|
Loader capacity |
700L |
|
Loader control |
Hydraulic |
|
Tilt angle |
30° |
|
Speed |
High 0-10km/h |
|
Low 0-30km/h |
|
|
Tire |
16/70-20 |
|
Voltage DC |
24V DC |
|
Hydraulic tank |
140L |
|
Diesel tank |
100L |
|
Dimensions(L*W*H) |
7300*2460*3200mm |
|
Loader weighing mode |
Computer control |
|
Loader control |
Hydraulic pilot control handle |
|
Diesel engine |
|
|
Type |
YUCHAI 4105 Supercharged |
|
Rated power/rpm |
85KW/2200rpm |
|
Cylinder |
4-cylinder |
|
Starter |
Electric |
|
Emission standard |
China II |
|
Mixing drum |
|
|
Drum capacity |
2.6cbm,11-15cbm/hr |
|
Angle of drum rotation |
270° |
|
Discharge height |
1.7m |
|
Chute |
|
|
Swing angle |
120° |
|
Angle control |
Hydraulic |
|
Hydraulic system |
|
|
Hydraulic driving pump |
40Mpa,90ml/r |
|
Hydraulic driving motor |
40Mpa,63ml/r |
|
Hydraulic mixing pump |
40Mpa,60ml/r |
|
Hydraulic mixing motor |
20Mpa,63ml/r |
|
Water tank |
|
|
Supply |
Hydraulic water pump |
|
Water tank |
2*300L |
Advantages Of Self Loading Concrete Mixer Truck
1. Self loading concrete mixer truck can rotate 270 degrees;
2. Self load, meter, mix and discharge;
3. Compact structure and easy movement;
4. High working efficiency and less energy consumption;
5. Cost and time-saving;
6. One-stop service, full automatic feeding, weighing, stirring and discharging;
7. High stirring quality and short stirring time.
8. The main hydraulic components are imported!
9. At least 5 workloads are saved per day!
10. Save electricity 100 degrees everyday without a blender!
