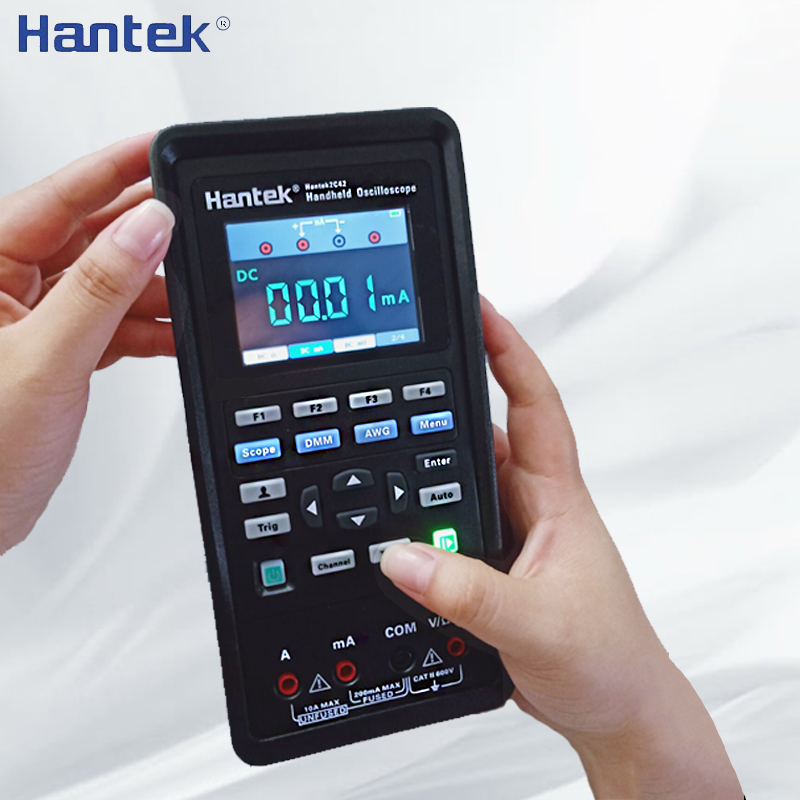

Hantek 2C42 2C72 2D42 2D72 Digital Oscilloscope Waveform Generator Multimeter 3in1 Portable USB 2Channel 40mhz 70mhz Test Meter
An all-new handheld oscilloscope-Hantek2000 series, it continues the compact and lightweight concept but with a new generation of 3 in 1 multifunction tester: oscilloscope, signal source and multimeter; A small volume of the non-profit grip by a single hand; The suspendingstand was designed to support multi-angle adjustment; Ultra-low-power, Type C charging interface, each 2 hours battery charge allow working one full day or standbytwo months; High-definition color LCD screen display clear and delicate; Minimalist keyboard design simplifyoperation, easy to use.
Features
1. Oscilloscope + Waveform Generator + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers.(2C42 and 2C72 does not contain generator)
2. Intelligent charging control: Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy;
3. Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;
4. Large-capacity lithium battery power supply: 18650 replaceable lithium battery power system, free from replace battery;

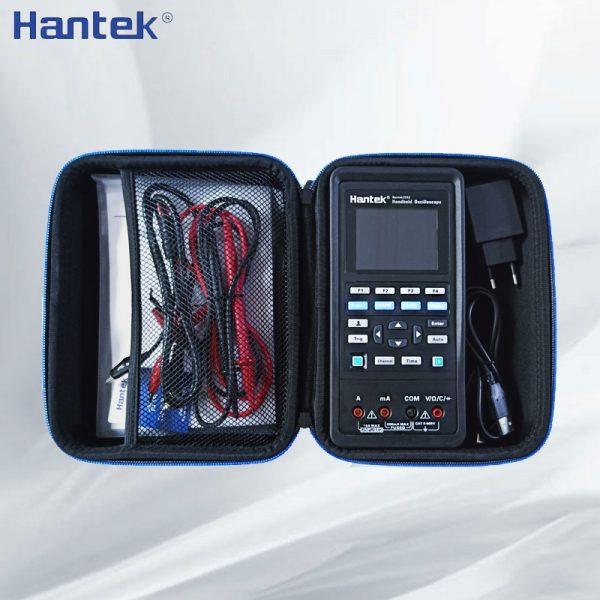

5. 5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone;
6. AUTO one-key test: Magic tool and essential function for test newbie;

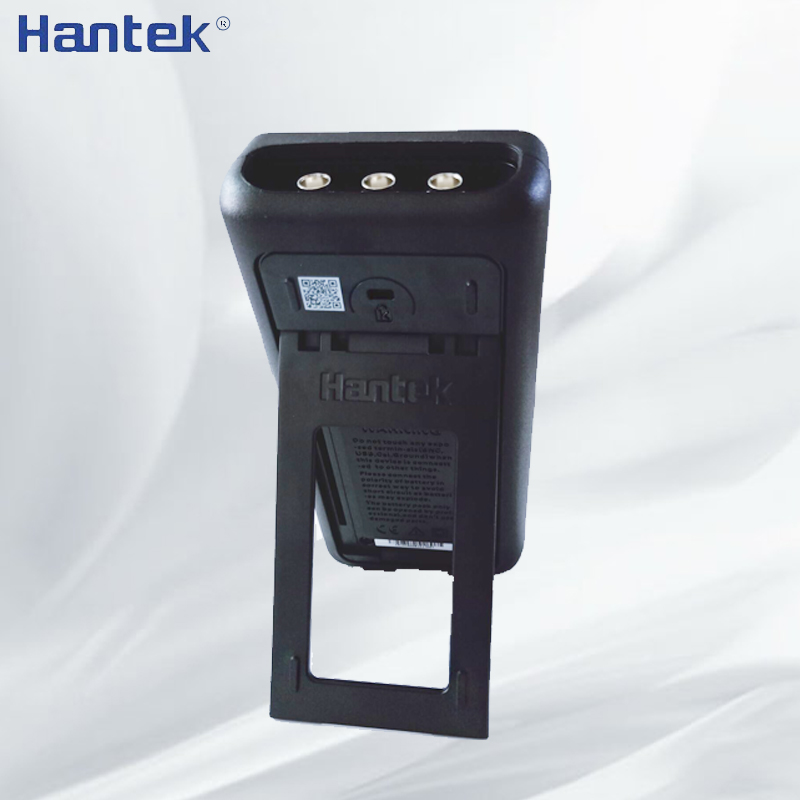

7. Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime;
8. One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective;
9. Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free;
10. Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately;
11. One-click switching its Chinese and English language menu;
12. Color LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify;
13. Minimalist keyboard design simplify operation, convenient to use;
14. Unibody casing: fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;
15. Self-calibration function: free from level drift after long time unused;
16. Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;
17. Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz;
18. Function of video help: scan code on back of machine to get help of video course;
19. The PC software supports windows7/8/10 32-bit and 64-bit.
