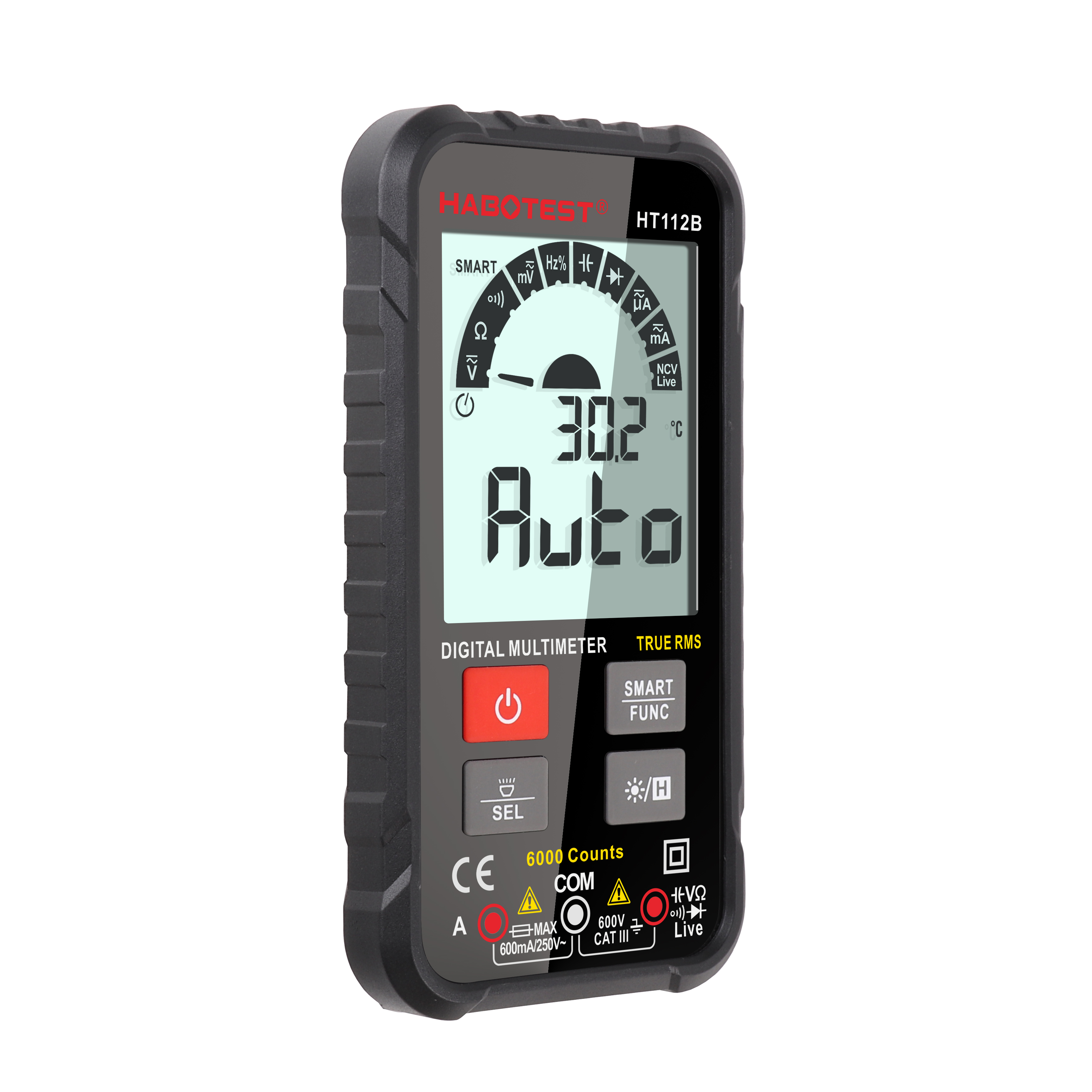

Habotest Digital Multimeter HT112B T-RMS with AC DC Voltage to 600V AC DC Current from 600 uA to600 mA
HT112B 6000Counts Smart Digital Multimeters
|
Specification |
Range |
Accuracy |
|
DC Voltage |
600.0mV;6.000V/60.00V/600.0V |
±(0.5%+3) |
|
AC Voltage |
600.0mV;6.000V/60.00V/600.0V |
±(0.8%+3) |
|
DC Current |
600.uA/6000uA;60.00mA/600.0mA |
±(0.8%+3) |
|
AC Current |
600.uA/6000uA;60.00mA/600.0mA |
±(1.0%+3) |
|
Resistance |
600.0Ω/6.000kΩ/60.00kΩ/600.0kΩ/6.000MΩ/60.00MΩ |
±(0.8%+3) |
|
Capacitance |
9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF |
±(4.0%+3) |
|
9.999mF |
±(5.0%+5) |
|
|
Frequency |
99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz |
±(1.0%+3) |
|
Duty |
0.1%-99.9% |
±(1.0%+2) |
|
Counts |
6000 Counts |
|
|
Bargraph |
Yes |
|
|
Smart Function (AC/DC Voltage,Rsistance and Continuity |
Yes |
|
|
Automatic identification of current input |
Yes |
|
|
Live Test |
Yes(Sound and light alarm) |
|
|
NCV |
Yes(Sound and light alarm) |
|
|
Diode Test |
Yes(Sound alarm) |
|
|
Continuity Test |
Yes(Sound and light alarm) |
|
|
Data hold |
Yes |
|
|
True RMS |
Yes |
|
|
Fusing Burning Prompt Function |
Yes |
|
|
Low Battery Indication |
Yes |
|
|
Auto Power off |
Yes |
|
|
Flashing Light |
Yes |
|
|
Power |
2*CR2302 Batteries |
|
|
Weight |
Approx 150g |
|
|
Size |
113mm*68mm*19mm |
|
|
Safety Rating |
EN61010-1,-2-030 EN61010-2-033,EN61326-1 CAT Ⅲ 600V |
|
