HABOTEST HT118A 6000 Counts Digital Multimeter with True RMS Capacitance Frequency Temperature Testing LCD Dual Display

ر.س400.15

Clear
Qty:
Compare

Request quotation for: HABOTEST HT118A 6000 Counts Digital Multimeter with True RMS Capacitance Frequency Temperature Testing LCD Dual Display

Product Description

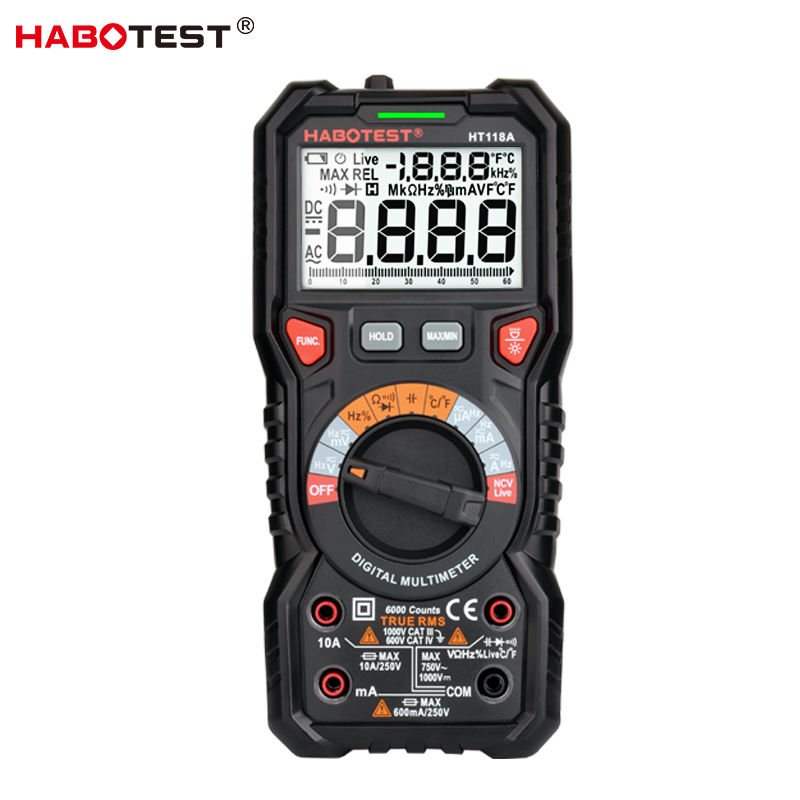

HABOTEST HT118A 6000 Counts Digital Multimeter Double Color Backlight



Specifications

Range

Accuracy

DC Voltage

600mV

±(0.5%+3)



6V60V/600V/1000V

±(0.5%+3)

AC Voltage

600mV

±(1.0%+5)



6V/60V/600V/750V

±(1.0%+5)

DC Current

600uA/6000uA/60mA/600mA

±(0.8%+3)



6A/10A

±(1.2%+3)

AC Current

600uA/6000uA/60mA/600mA

±(1.0%+3)



6A/10A

±(1.5%+3)

Resistance

600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ

±(0.8%+3)

Capacitance

10nF/100nF/1μF/10μF/100μF/1mF/10mF

±(4.0%+3)



100mF

±(5.0%+5)

Frequency

10Hz/100Hz/1kHz/10kHz

100kHz/1MHz/1MHz

±(1.0%+3)

Duty

1%~99%

±(1.0%+2)

Temperature

-40℃~1000℃

±(1.0%+3)



-40℉~1832℉

±(1.0%+3)

Counts

6000 Counts

Auto/Manual Range

Auto

Display

LCD dual display

Bargraph

Live Test (Sound and Light Alarm)

NCV (Sound and Light Alarm)

Diode Test

Continuity (Sound and Light Alarm)

MAX/MIN Hold

Relative Measurement

Data Hold

True RMS

Bandwidth

1kHz

Low Battery Indication

Auto Power Off

Double Color Backlight

Input Jack LED Indicate

Flashlight

Power:                             2X1.5V AA batteries

Weight:                            Approx.350g

Size:                                188mm*88mm*58mm

Safety Rating:  EN61010-1,-2-030 EN61010-2-033,

                       EN61326-1 CAT ΙΙΙ 1000V,

                       CATIV 600V








Packaging & Shipping



Our Services



Company Information



Dongguan Habotest Instrument Technology Co.,Ltd is an innovation orientied technology enterprise with an over 20 years R&D team, injection molding, professional production line and assembly capabilities.



We offering professional and innovative measuring products as Digital Mltimeter, Digital Clamp Meter, Earth Resistane tester, Insulation Tester, Enviromental detector and other testing insturments for the worldwide customers to meet the global market demand, we also provide electronic test tools, measurement solutions and ODM and OEM services to specific customers.



Habotest now has over hundred various patents and set an independent innovation goal of reaching more than 100 authorized patents each year. After 20 years industry experience in research and development, Habotest standardized its management and quality systems, obtaining ISO9001-2008 and ISO/TS16949, CE, IEC safety standards and introducing financial ERP systems.



For providing qualified products and superior serivice to all customers, we have been always producing products which meet the industry standards, and creating unique innovative solutions in high-growth fields.

Habotest is currently developing test meters and instruments in an industry park nearly 5000 square meter facility. With this new facility, Habotest is capable to fully supply product demands from all customers across the world.



Now our Daily Production is over 10,000 pcs, We are one of the pioneer domestic enterprises who sucessfully in Research, Development and production.



Our products is widely used in the field from industrial electronic installation, maintenance service to DIY and daily household needs.
