Name: FCY10 1t 1 Ton 4x4 Small Mini Wheel Dump Truck with Self Loader for Sand Mining Farm Use Work Dumper
SKU: 212764566019181
Availability: InStock

FCY10 1t 1 Ton 4×4 Small Mini Wheel Dump Truck with Self Loader for Sand Mining Farm Use Work Dumper

ر.س12,836.72

FCY10 1 ton small mini wheel dump truck with self loader for sand mining farm use work dumper in stock

Product Description

Model	FCY-10	FCY-20	FCY30
Performance
Rated Loading Weight	1000KG	2000KG	3000KG
Bucket capacity	0.5	1. 2m3	1.50m3
Wheel base	1700	1280mm	1360mm
Thread	1300	1500mm	1960mm
Gradeability	21	21	21
Overall dimensions	260014502050mm	3017x1900x2465mm	3650x1800x2550mm
Mini turning radicus	3500	4000mm	4000mm
Walking speed
Forward gear 1	6.5km/h	6.5km/h	6.5km/h
Forward gear II	11km/h	11km/h	11km/h
Forward gear III	24km/h	24km/h	24km/h
Backward gear	4.5km/h	4.5km/h	4.5km/h
Engine model	ZS1100	CHANGCHAI390	Quanchai490
Engine type	3 cylinders	3 cylinders	4 cylinders
Cooler type	water	water	Water cooler
Rated power	12.1KW	20KW	38KW
Tire size	Front tire 750-16 Rear tire 550-16	825-16	20.5/70-16

Model	FCY50	FCY70
Performance
Rated Loading Weight	5000kg	7000kg
Bucket capacity	2.5CBM	3.5 m3
Wheel base	2000mm	2200 mm
Thread	1580mm	1580 mm
Gradeability	21	21
Overall dimensions	430019202650MM	525022502700 mm
Mini turning radicus	4000MM	4000MM
Walking speed
Forward gear 1	6.5km/h	6.5km/h
Forward gear II	11km/h	11km/h
Forward gear III	24km/h	24km/h
Backward gear	4.5km/h	4.5km/h
Engine
Engine model	Weichaihuafeng 4102	Yuchai 60kw engine
Engine type	4 cylinders	4 cylinders
Cooler type	Water cooler	Water cooler
Rated power	47kw	60kw
Tire size	14-17.5	16/70-20

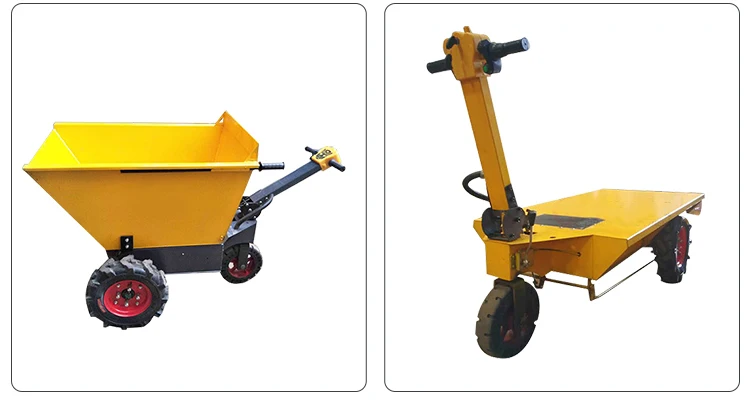

Dimensions	12507001100mm	14507801100
product weight	130kg	75KG
Safe load	600-700kg	600-700KG
Gradeability	35°	0-45°
operating hours	8-10h	8-10h
Charging time	8h	7-8h
battery	48V20AH*4	48V20AH*4
Motor	800W	800W

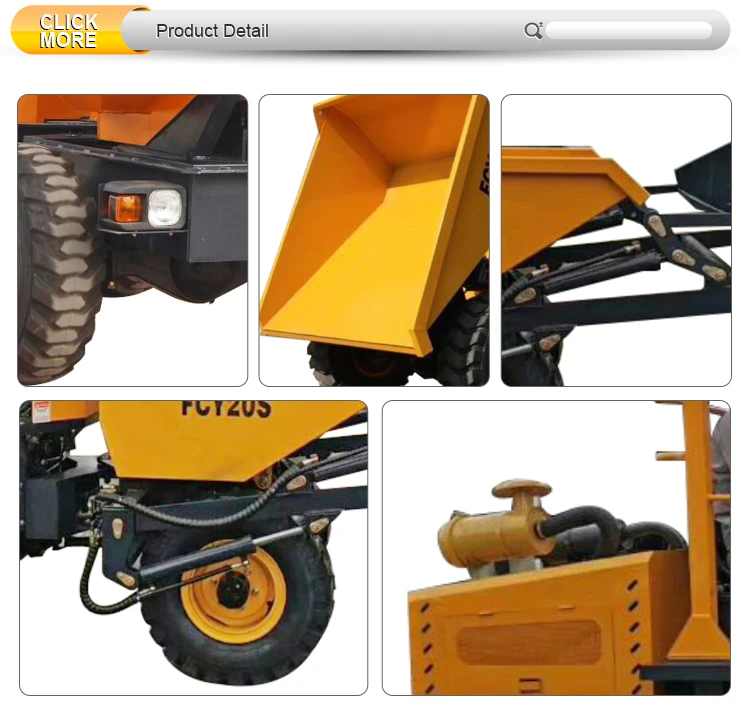

Product Details

Product Feature

1.Hydraulic steering,can unload materials smoothly by strong hydraulic pressure unloading system.

2.Low walking speed,short-distance transport of bulk materials.

3.Easy operation,small turning radius can be used in a narrow environment.

4.With self loading bucket can realize the multiple function tools. With full seal cabin optional.

5.Off road wider types as option ,can work in muddy and bumpy roads.

6.With bucket 180 rotate can realize side dumping and dumping in each direction can have high efficiency working.

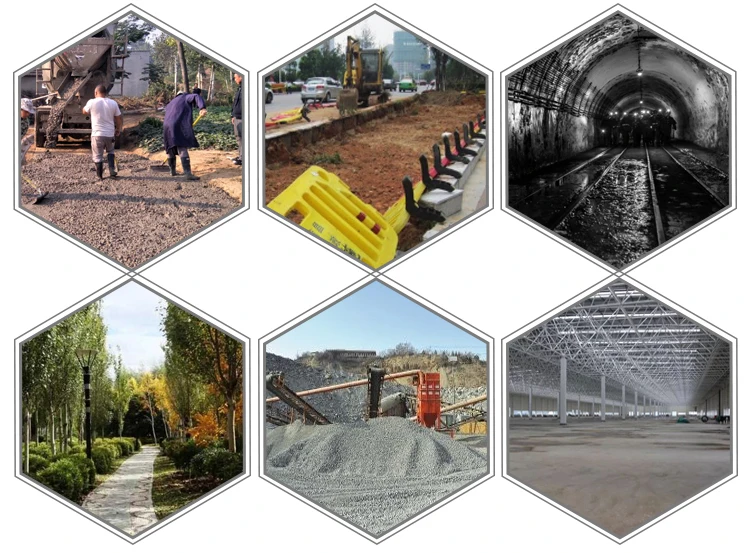

Product Application

As a low-volume, short-distance transport of bulk materials for small site dumpers. Dumpers are widely used in many different occasions, such as the construction industry, the factory floor, battlefield ,protecting road section, the municipal engineering, underground mines and so on.
