Product Description

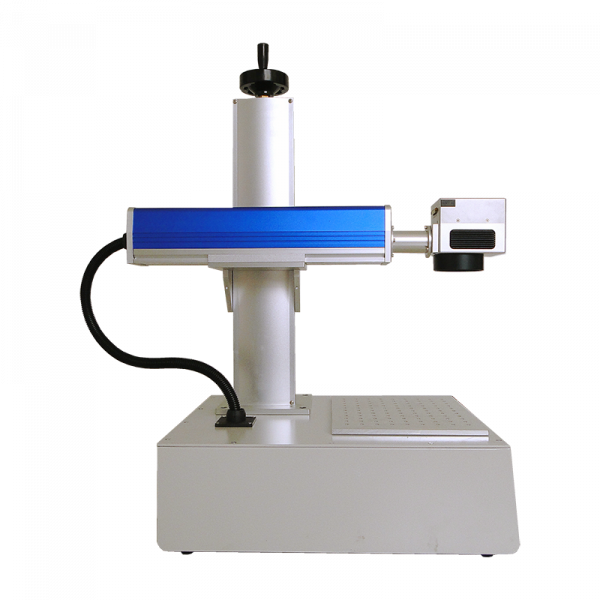

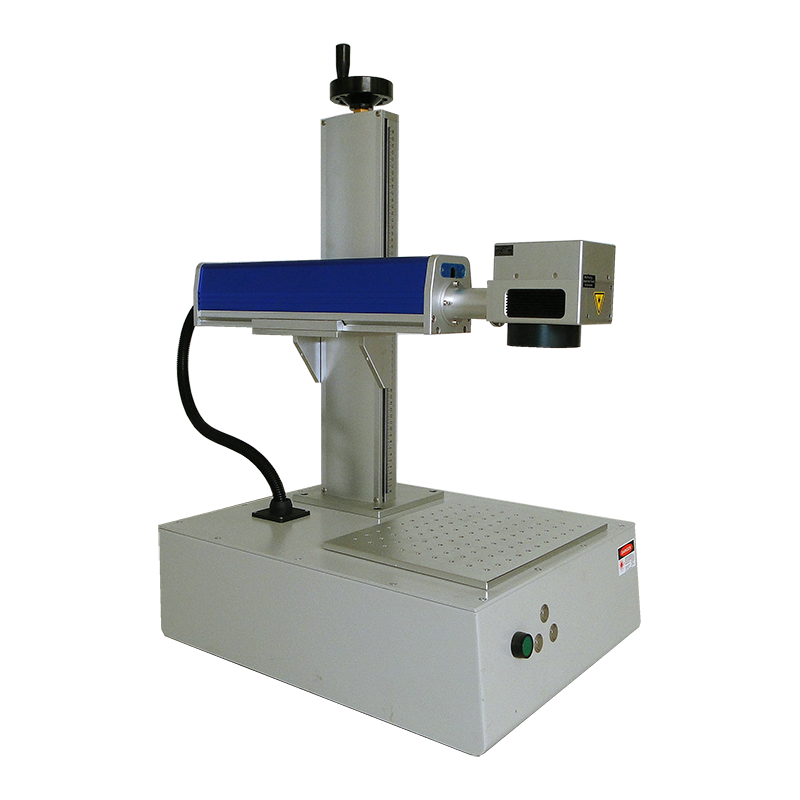

PL130 FIBER LASER MARKING MACHINE
1.Long service life, can print 100,000 hours, and works eight hours a day for about 35 years.
2.laser marking machine maintenance operation is simple, just need to carry out a simple cleaning.
3.The subsequent use cost is very low, not need other consumables.
4.laser marking machine printed picture or mark can be permanently saved and will not disappear.
laser marking machine is small, light and easy to carry, weight only 25kg
Can Be carved on most metal surfaces and some non-metal surfaces
It can carve all kinds of metal and some non-metal, metal alloy materials, plastic, rubber, leather and other materials
Laser marking machine is widely used in various industries, such as metal processing, jewelry processing, parts processing and so on
Meet the high-speed production requirements of automobile, electronics, medical machinery processing, etc
-Engraving pattern, text, datmatrix QR code, serial number, counter, date, shift, variable, etc
-Engraving pattern, text, datmatrix QR code, serial number, counter, date, shift, variable, etc
Different uses of different power
|
Laser
|
applications
|
|
20W
|
multi purpose solution
|
|
30W
|
super high speed marking
|
|
50W
|
depth marking / engraving
|
laser source
Laer marking machine adopts Chinese first-line light source brands raycus and Max, as well as international famous brand IPG light source,to ensure the printing quality.The service life can reach 200000 hours.
High speed galvanometer
Laer marking machine adopts sinogalvo high-speed galvanometer to ensure the stability of printing process
Flexible match of field lens
The machine adopts the Singapore wavelength high transmittance galvanometer.The printing range can be adjusted from 12 * 12cm to 40 * 40cm by changing galvanometer
Connectable rotator
The machine can be equipped with optional rotator to print the arc object
Machine parameters
|
Laser wavelength
|
1060nm
|
|
laser power
|
20W or 30W or 50W
|
|
Laser type
|
Pulse or continuous
|
|
Marking depth
|
Up to 0.5mm depending on material
|
|
Marking speed
|
≤7000mm/s
|
|
Minimum characters
|
0.15mm
|
|
Minimum line width
|
0.012mm
|
|
Repeatability
|
±0.002
|
|
Marking range
|
Standard configuration: 100mmx100mm
|
|
Operating life
|
Laser operation > 100000 hours
|
|
External dimension
|
450 mm x 540 mm x 800 mm weight 25 kg
|
|
Worktop
|
320 mm x 200 mm 30 kg
|
|
Lifting height
|
Lifting 550, printable workpiece height less than 280mm.
|
|
Cooling system
|
Built in air cooling
|
|
operating system
|
WinXP/Win7
|
|
Graphic conversion
|
Provide CAD, CorelDRAW, CAXA file conversion
|
|
Use environment
|
Temperature: – 20 ° C- 45 ° C, relative humidity 80%
|
