22HP Diesel Hydraulic Water well drilling machine
Diesel hydraulic drilling machine is suitable for soil layer, quicksand layer and a small amount of rock and soil layer drilling, is mainly used for drilling civil water Wells, ground source heat pump air conditioning Wells, engineering precipitation Wells, drought Wells, industrial Wells, etc..

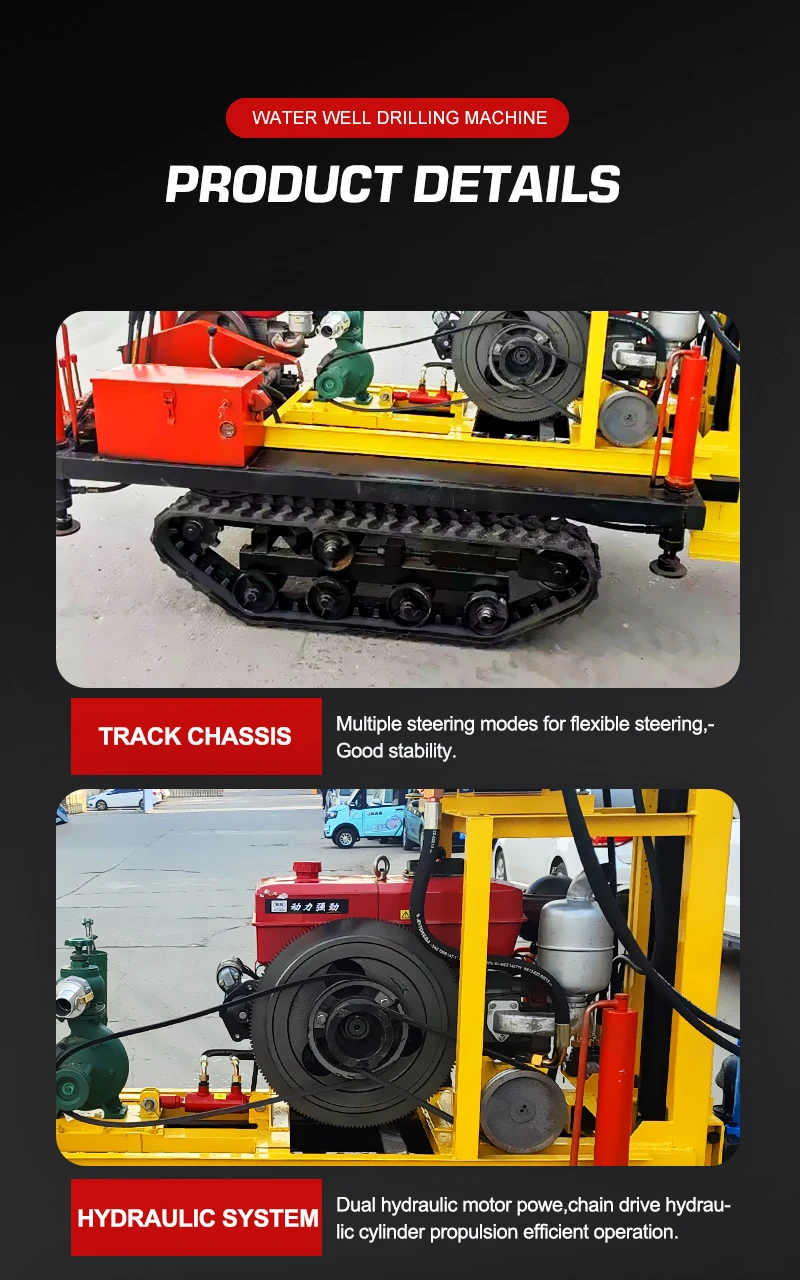

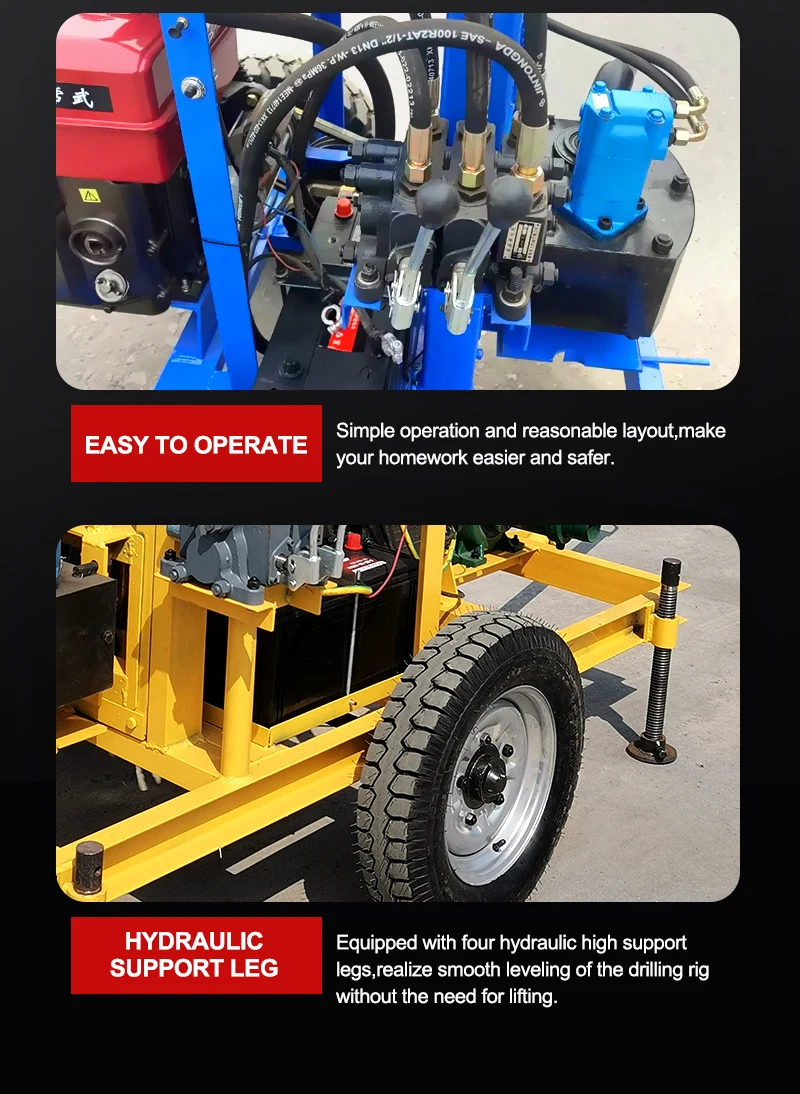

Diesel hydraulic drilling machine characteristics: 1, diesel engine configuration electric start, convenient start, reduce the operator’s labor intensity. 2, the drilling machine adopts hydraulic working principle, equipped with radiator, the drilling machine can work with high efficiency. 3, equipped with high power hydraulic motor, power head can be reversed. 4, drilling frame is equipped with hydraulic cylinder, through the operation handle can achieve oil pressure lifting and dropping. 5, the rig has its own water pump, reasonable structure, compact layout, good slag discharge effect. 6, equipped with traction bar and wheel walking mechanism, the rig is convenient to move. 7, equipped with silk support legs, used for leveling drill.
Detailed Parameters
|
Model
|

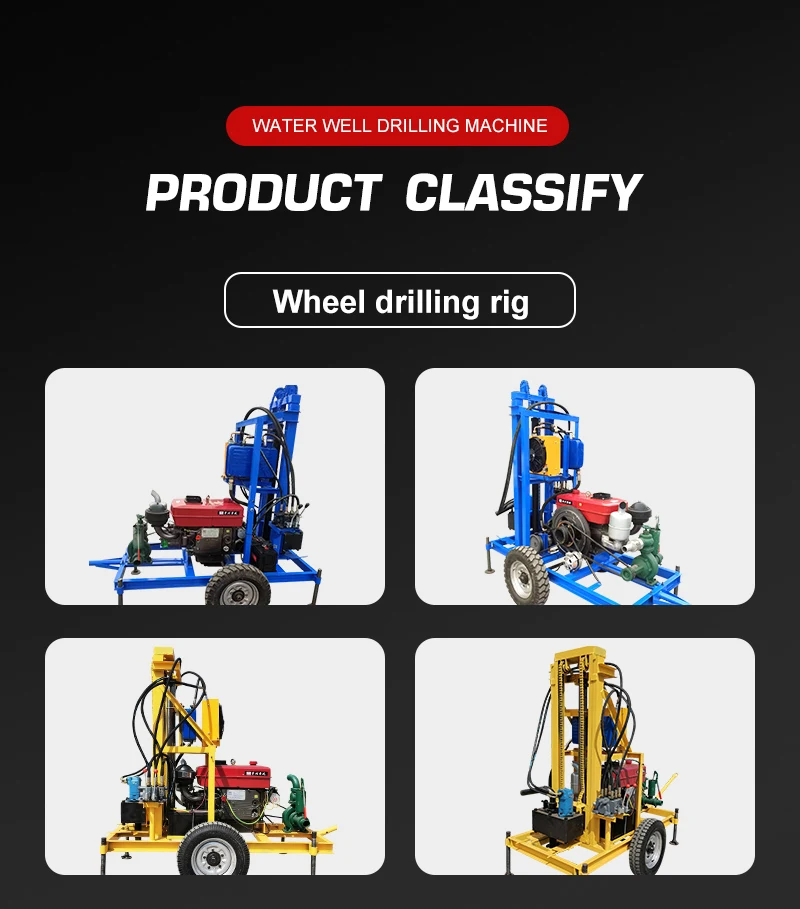

Wheeled RLD-180
|

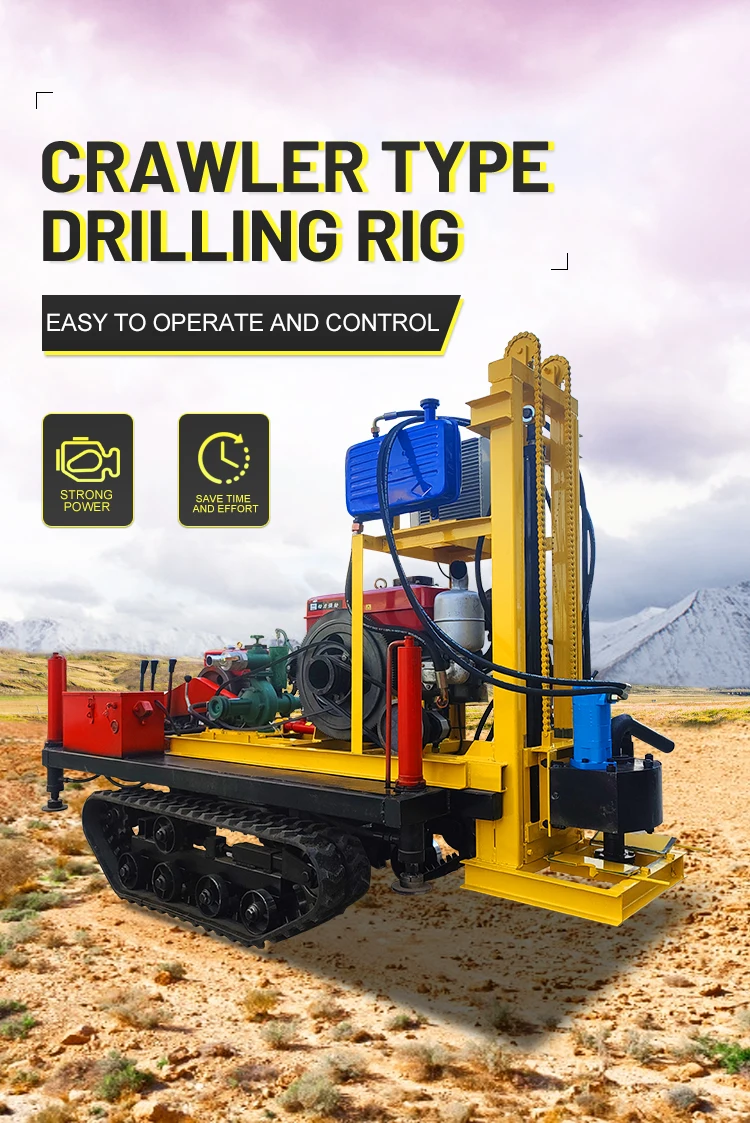

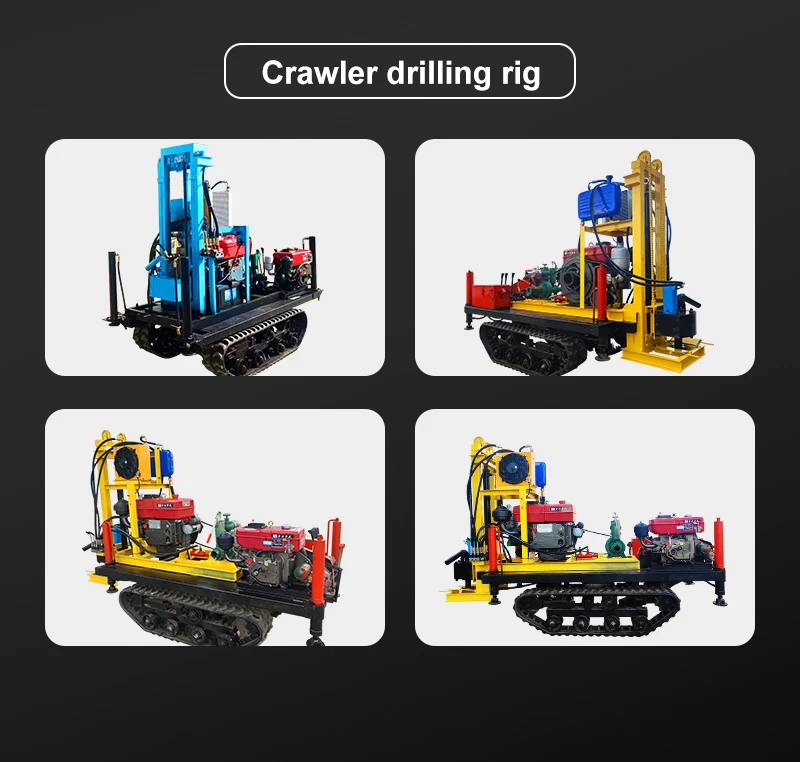

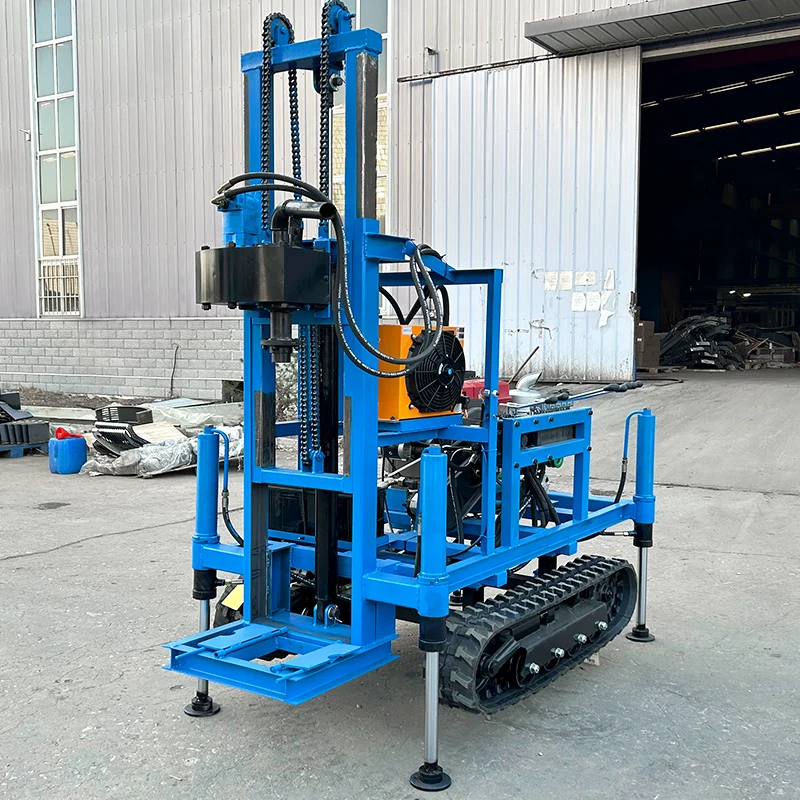

Crawler RLD-180
|
|||
|
Max. Drilling Depth
|
180m
|
||||
|
Max. Drilling Diameter of bits
|
70-300mm
|
||||
|
Drill Rod diameter
|
50mm
|
||||
|
Drill rod length
|
1.5m/pc
|
||||
|
Drilling speed
|
160rpm/min
|
||||
|
Engine power
|
Diesel 22hp (can be customized)
|
||||
|
Centrifugal pump
|
Head
|
35m
|
|||
|
Flow rate
|
65 cubic meters per hours
|
||||
|
Suction
|
9m
|
||||
|
Power
|
4kw
|
||||
|
Speed
|
2900r/m
|
||||
|
Net weight
|
23kg
|
||||
|
Host max. height
|
2.5m
|
||||
|
Drilling head – torque Kn
|
950 N/M
|
||||
|
Weight
|
450kg
|
||||
|
Size
|
2770*1300*2000(mm)
|
||||
|
Package
|
Wooden case
|
||||
|
Application
|
Engineering construction, home use, etc.
|
||||
