Product Description

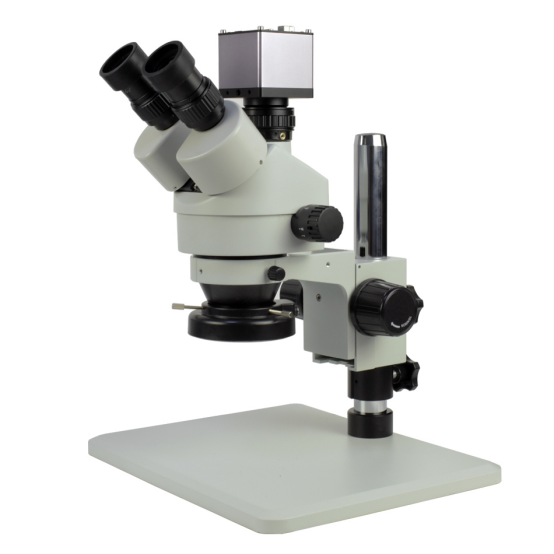

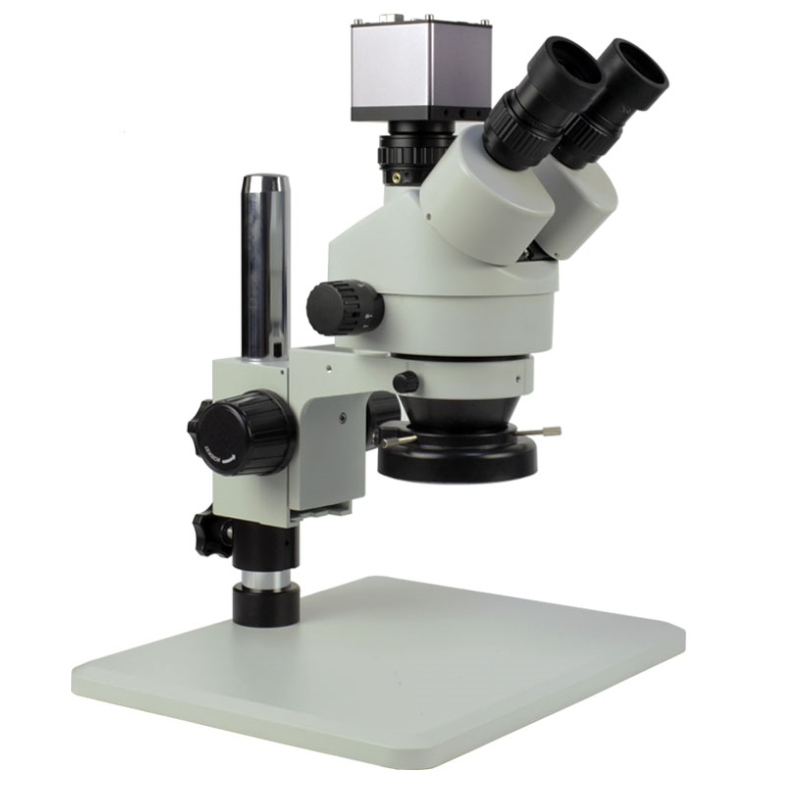

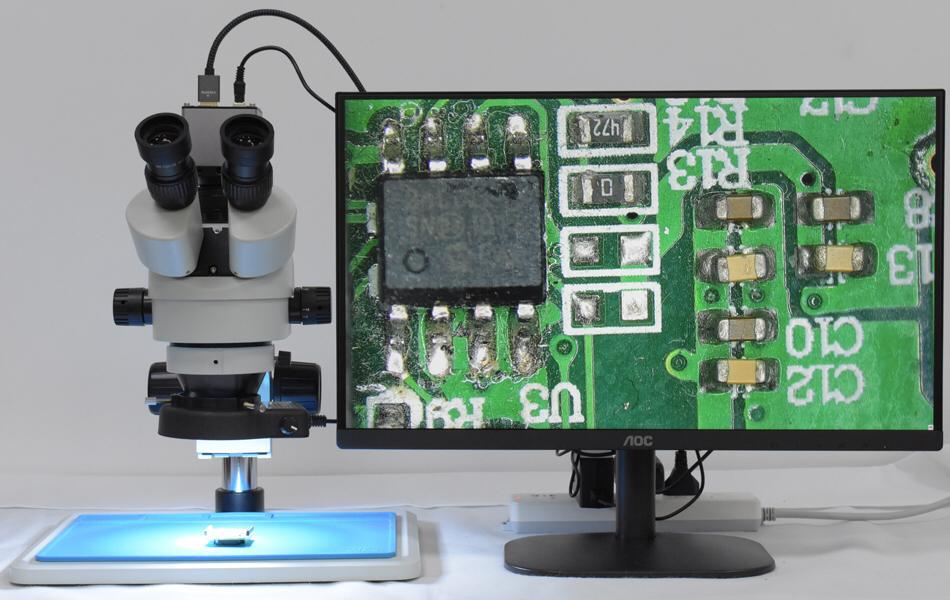

Digital Electron Microscope Camera For Phone Lcd Tv Display Screen Repair In Stock
microscope
7X-45X Specification:
Binocular head: 45 ° tilt, 360 ° rotation
Trinocular head: Trinocular synchronized focus, 45 ° tilt, 360 ° rotation
Eyepieces: Fine-adjustable eyepiece WF10X/20MM
Objective Zoom Range: 0.7X-4.5X
Magnification: 7X-45X
Zoom Ratio: 1:6.4
Working Distance: 100mm
Field Size: 28.6mm-4.4mm
Interpupillary Distance: 54mm-76mm
Head Barrel Diameter: 76mm
Bracket Stop Ring Diameter: 32mm
Auxiliary objective lens: 0.5X (165mm), 0.7X (135mm), 2X (30mm)
Binocular head: 45 ° tilt, 360 ° rotation
Trinocular head: Trinocular synchronized focus, 45 ° tilt, 360 ° rotation
Eyepieces: Fine-adjustable eyepiece WF10X/20MM
Objective Zoom Range: 0.7X-4.5X
Magnification: 7X-45X
Zoom Ratio: 1:6.4
Working Distance: 100mm
Field Size: 28.6mm-4.4mm
Interpupillary Distance: 54mm-76mm
Head Barrel Diameter: 76mm
Bracket Stop Ring Diameter: 32mm
Auxiliary objective lens: 0.5X (165mm), 0.7X (135mm), 2X (30mm)
Bracket size: bottom plate 320*260*17mm, column height 280mm, column diameter 32mm, lens hole diameter 76mm
Camera parameters:
Image specifications: 1920×1080 * 24Bit
Frame rate: 60 frames / second @ 1920×1080
Optical size: 1/3 ”
Pixel size: 2.75×2.75um
Photo resolution: 1920 * 1080
Recorded video: 1080P @ 30FPS
Color adjustment: R, G, B are independently adjustable
Strong light suppression mode: Level 3
Edge Enhancement Mode: Level 3
Crosshair function: superimpose or cancel
Lens interface: C interface
Power supply: 12V
White balance adjustment: one-touch setting / manual setting
Exposure adjustment: automatic mode / manual mode
Contrast adjustment: manual setting
Dimensions: 61x61x70mm
Weight: 150g
Frame rate: 60 frames / second @ 1920×1080
Optical size: 1/3 ”
Pixel size: 2.75×2.75um
Photo resolution: 1920 * 1080
Recorded video: 1080P @ 30FPS
Color adjustment: R, G, B are independently adjustable
Strong light suppression mode: Level 3
Edge Enhancement Mode: Level 3
Crosshair function: superimpose or cancel
Lens interface: C interface
Power supply: 12V
White balance adjustment: one-touch setting / manual setting
Exposure adjustment: automatic mode / manual mode
Contrast adjustment: manual setting
Dimensions: 61x61x70mm
Weight: 150g
