CX-ULM-C 0-15m 3 wires Level measurement digital ultrasonic fuel sensor
1. What’s the Digital Fuel Level Sensor?
It is non-contact type,high reliability, cost-effective, easy to install and maintain level measurement instruments.
It does not have to contact medium and it can meet most of the requirement of level measurement.
2.What’s the benefits to customer?
Due to the non-contact measurement, the measured medium is almost unlimited and can be widely used for the measurement of various liquid and solid materials. It’s suitable for all kinds of corrosive and chemical occasions like the following:
- Chemical
- Mining
- Aggregate
- Power generation
- Pulp and paper
- Iron and steel
- Waste water
- Food and beverage
- Quarries
3.What are the disadvantages of Digital Fuel Level Sensor?
under the following circumstance, you need to pay attention
temperature is higher than 80℃——pls choose Radar Level Meter
pressure is higher than 10Mpa——pls choose Radar Level Meter
steam and dust are too dense——pls choose Radar Level Meter
A.[Parameter]
| price at 216USD main specification of CX-ULM-A Digital Fuel Level Sensor | |
| Measuring Range | 0-15m |
| Types | Three wires |
| Output | 4~20mA |

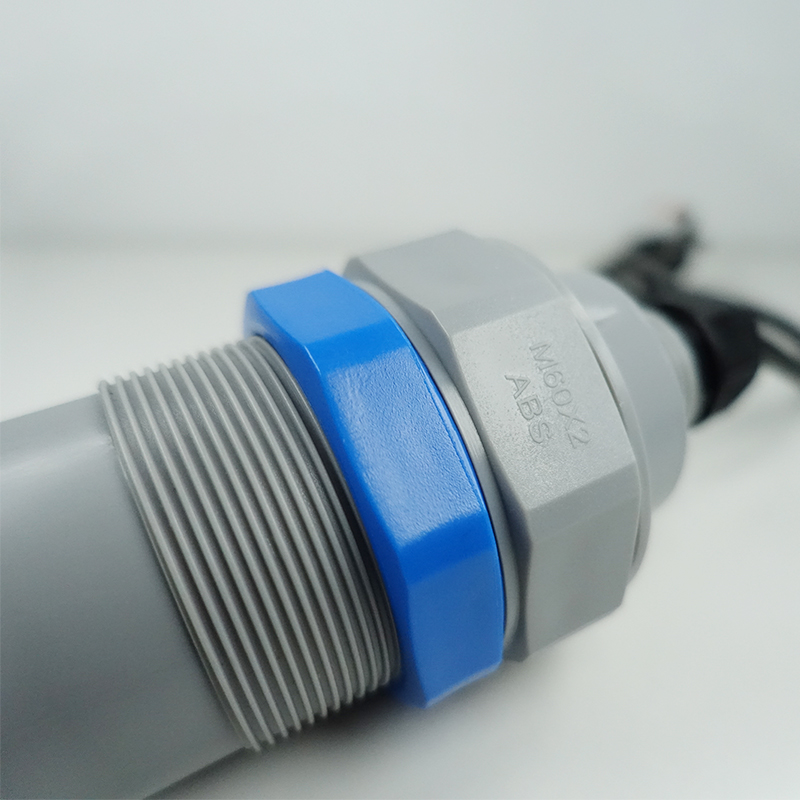

| Connection | M60*2 ABS |
| Protection class | IP65 |
| Power supply | 12~24VDC |
| Display | without display |
| Accuracy | +/-0.3% |
| Blind zone | 0.6m |
| If you have any problem about price, such as special customization(220V power optional/exproof optional/0-5V optional/Relay optional/IP68 optional), please do not hesitate to contact us! | |
B.[Installation]
- Digital Fuel Level Sensor should be placed where there is no obstacle between emission surface and measured liquid,it also should be far away from feeding throats;
- Tank shape should be considered.some type of container will bring second echo,expecially conical and spherical tank,a good installation place will solve the problem;
- Digital Fuel Level Sensor can be installed thread,whatever installation way,make sure the Level meter bottom through the installation hole .
- If the liquid to be measured has sewage,a float impurities or flunctuation .use a wave guide and the diameter of the waveguide should over 120mm.
C.[Company Info]
- Our Company is Top 10 Manufacture on Alibaba;
- We have about 30 years of experience in Manufacture;
- Our products have been exported to more 100 coutries and area;
- ISO,SGS,CE and more ceterficates for you reference;
- Patent technology and more than 3 years working life
