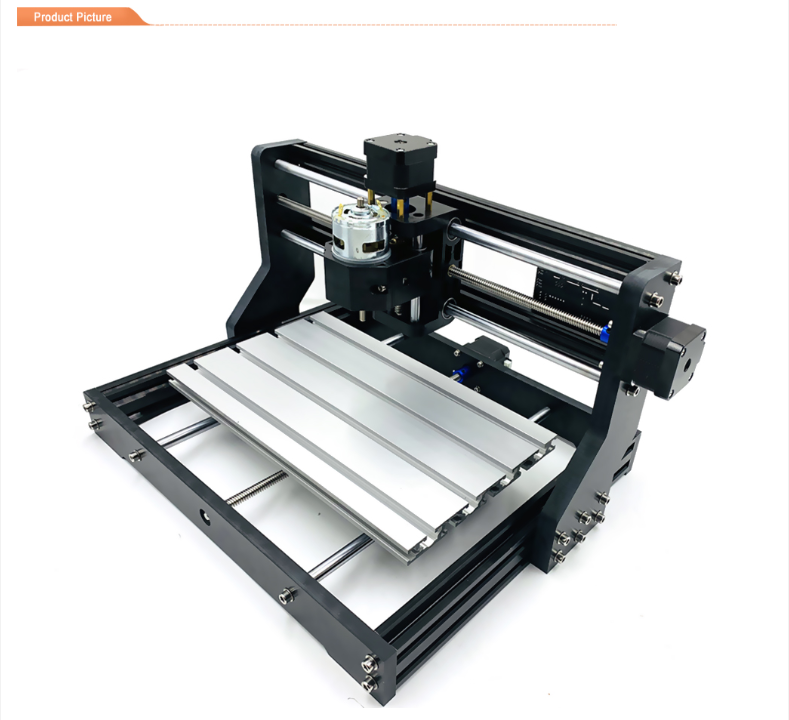

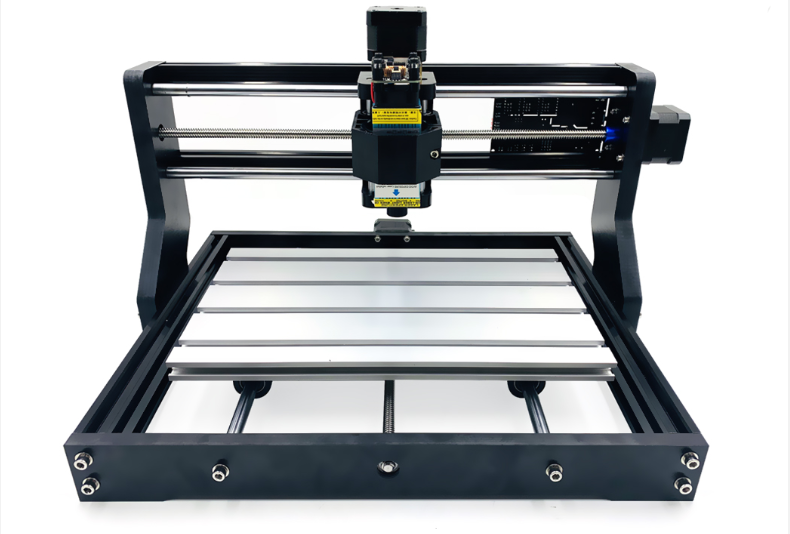

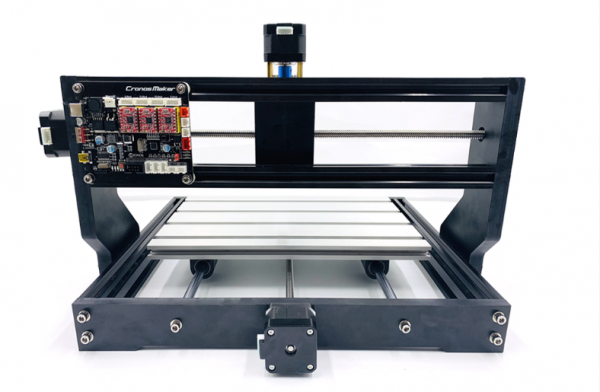

cnc3018 diy cnc router kit 2in1 mini laser engraving machine for Wood
Product Description
|
Code
|
CNC 3018 PRO
|
|
Construction
|
Aluminum + Bakelite
|
|
Control software
|
GRBL control
|
|
Frame size
|
400*330*240mm
|
|
Working area
|
300*180*40mm
|
|
Spindle
|
775 spindle motor 24V: 10000r/min
|
|
Step motor
|
1.3A 0.25N.m
|
|
Power supply
|
12V 5A
|
|
Supported system
|
Windows XP/ Win 7/ Win 8/ Win10
|
|
Laser (options)
|
500MW/2500MW/5500MW/15000MW
5500MW & 15000MW Can engrave metal such as 304 stainless steel |
Product Effects
1. The laser can be carved including: mahogany, bamboo, paper cards, ivory, leather, flammable plastic, PCBA, etc
2. We have 15,000mw laser , which can engrave metal materials such as stainless steel and alumina.
3. The blade can be engraved plastic, cork wood, acrylic, pvc, pcb, plywood or the like material
4. ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter, but ER11 is designed to be minus tolerence to
spindle so you cannot put it on directly.

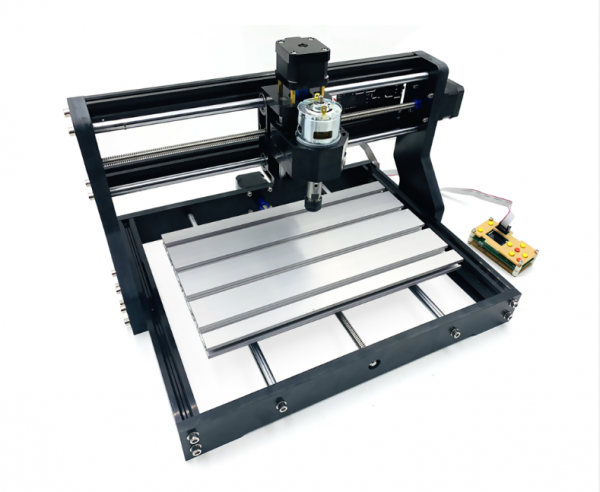

5. Offline controller supports offline work, you will not need to connect to a computer
6. You can choose offline controller or laser
7. We have EU , US, AU, UK adapters and I will send the correct plugs according to your country.(Please leave the message to tell
me which one you need) Without message, we will send the EU plug.
8. If you need more accessories, please contact me.
9. We suggest that you make an unboxing video upon receival of this machine. Just in case you receive any defective or damaged
part, please contact us for replacements.
10.We put the software and manual into 4G U dick instead of CD, so that you can use it well. If you need more software, please
contact me!
2. We have 15,000mw laser , which can engrave metal materials such as stainless steel and alumina.
3. The blade can be engraved plastic, cork wood, acrylic, pvc, pcb, plywood or the like material
4. ER11 needs shrink fitting. Both the spindle and ER11 have the correct diameter, but ER11 is designed to be minus tolerence to
spindle so you cannot put it on directly.
5. Offline controller supports offline work, you will not need to connect to a computer
6. You can choose offline controller or laser
7. We have EU , US, AU, UK adapters and I will send the correct plugs according to your country.(Please leave the message to tell
me which one you need) Without message, we will send the EU plug.
8. If you need more accessories, please contact me.
9. We suggest that you make an unboxing video upon receival of this machine. Just in case you receive any defective or damaged
part, please contact us for replacements.
10.We put the software and manual into 4G U dick instead of CD, so that you can use it well. If you need more software, please
contact me!
Detailed Images
Success Case
