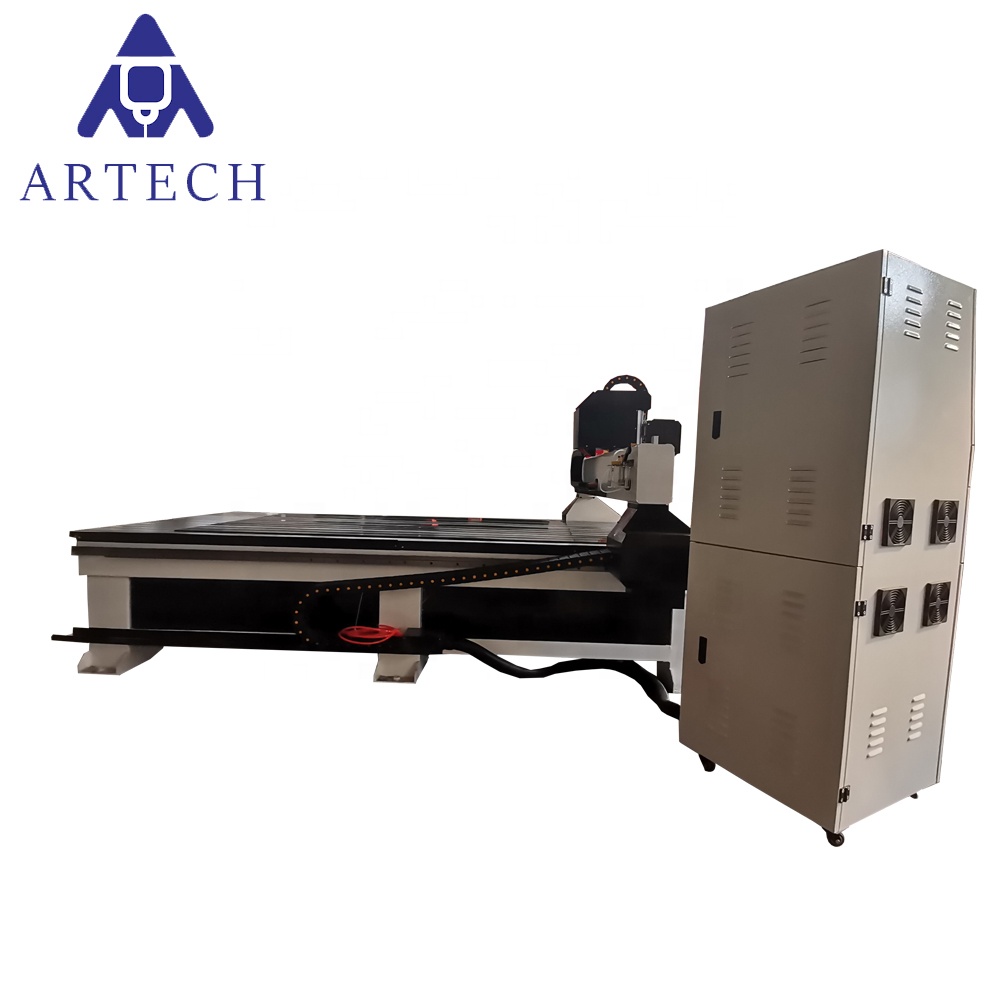

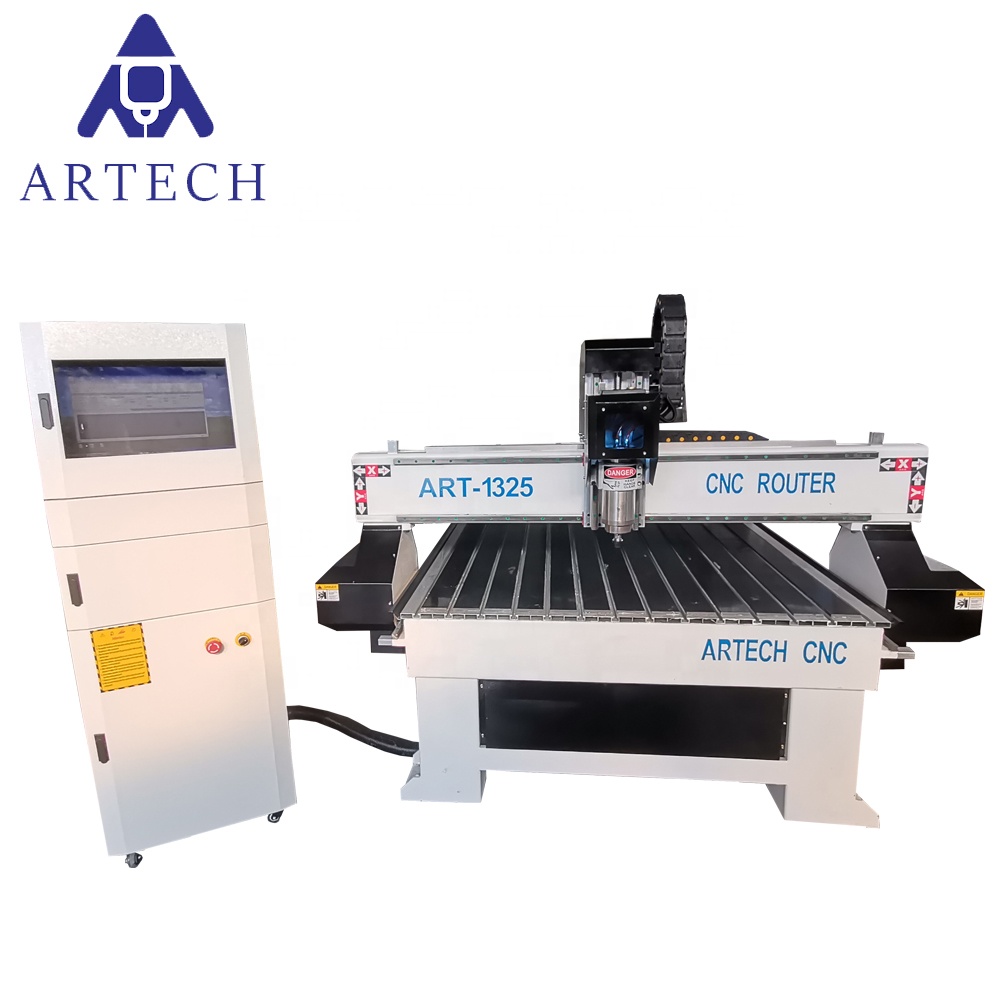

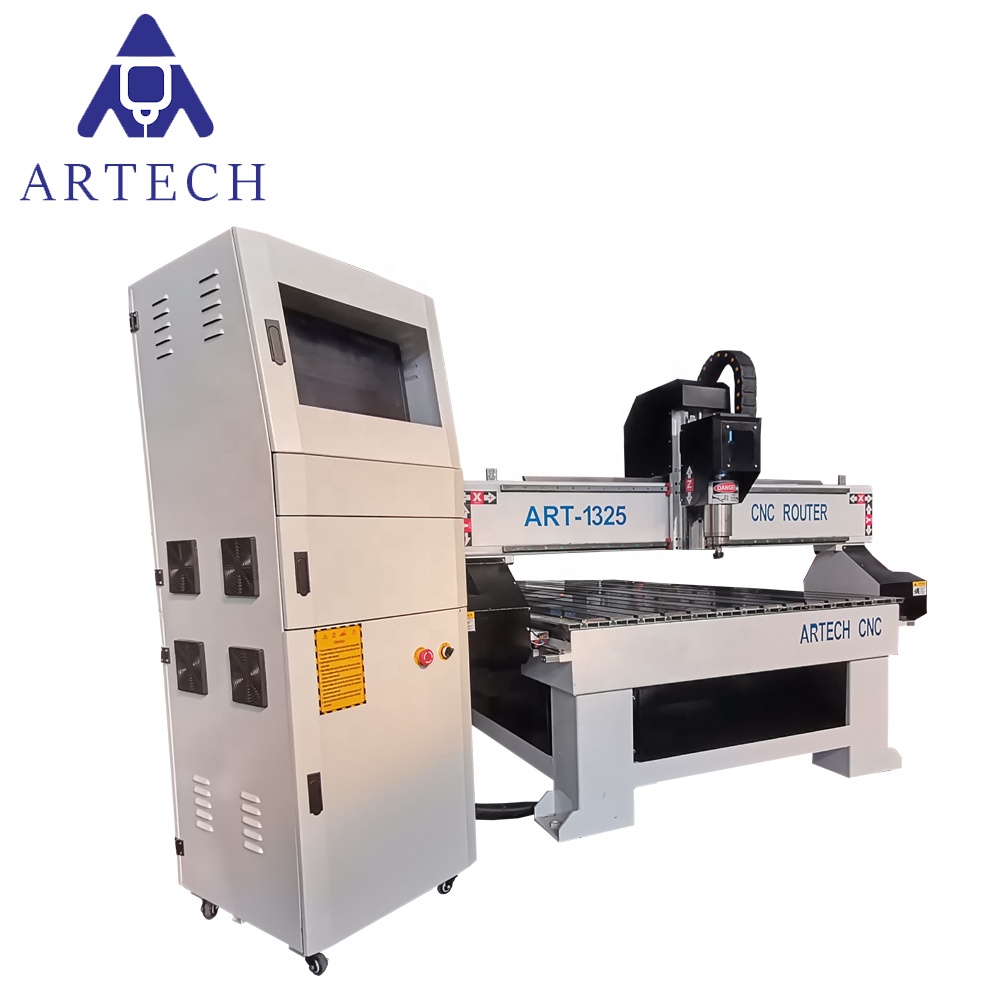

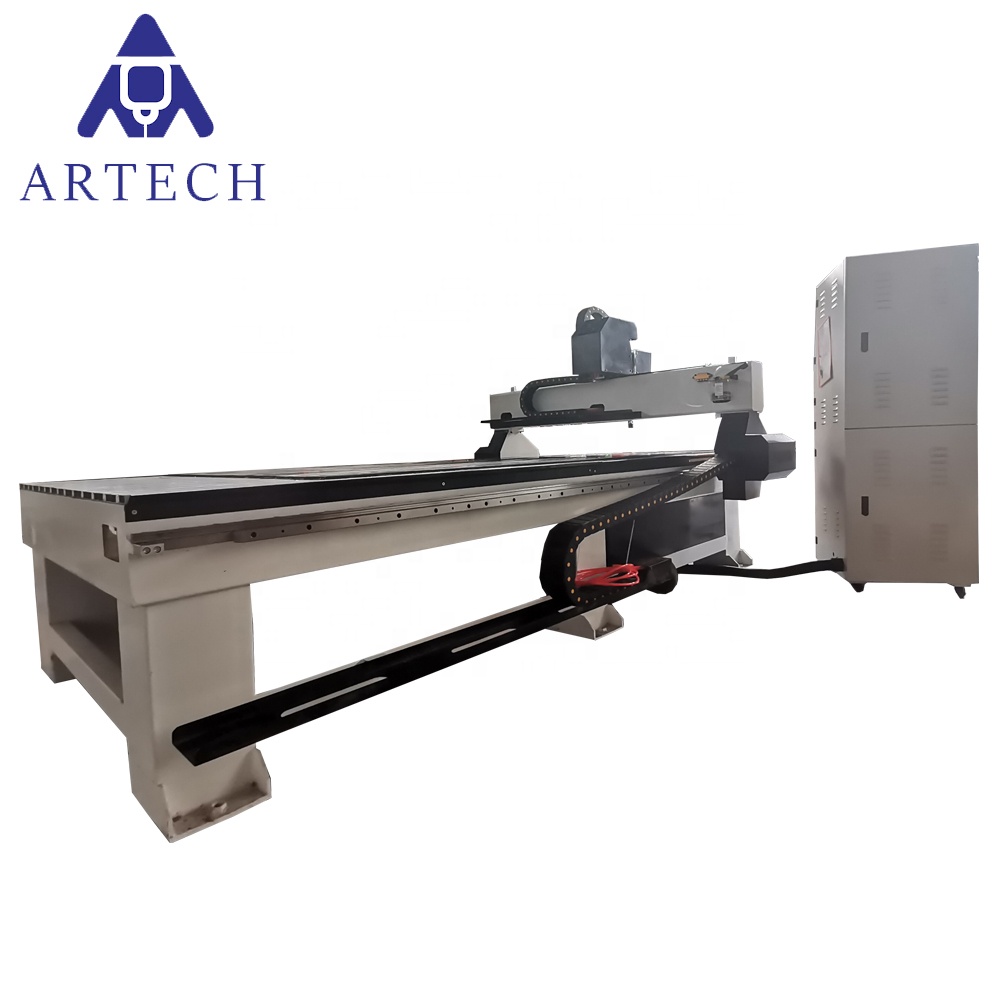

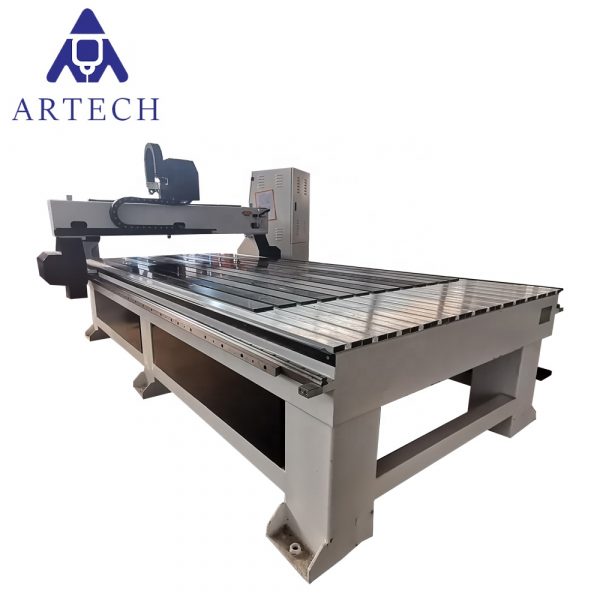

Cnc router cnc 3d router hot sales 1325 price 3d wood carving machine cnc router

ر.س16,408.90

Clear
Qty:
Compare

Request quotation for: Cnc router cnc 3d router hot sales 1325 price 3d wood carving machine cnc router

Cnc router cnc 3d router hot sales 1325 price 3d wood carving machine cnc router

Cnc router cnc 3d router hot sales 1325 price 3d wood carving machine cnc router

Description

Feature of cnc router 1325:

1. Ball screw for Z axis.It’s stable running,precision and fast.

2. X,Y axis are gear rack,steady rate transmission,fast speed and high efficiency.

3. With NC studio control system,easy to learn design software,just install it onto your computer and start creating patterns.

4. With T.slot working table,holding the materials with clamps,you can do variety of high precision works.

5. Heavy duty frame and gantry,it’s very strong and stability.

Technical Parameter of  cnc router 1325:

Parameters

Standard Specifications

X,Y,Z Working Area

1300*2500*250mm jinan unique cnc router

Spindle Power

3.2kw water cooling spindle

X,Y,Z Traveling Positioning Accuracy

±0.01/2000mm

Table

T.slot table or vacuum table

vacuum pump

 air cooling 5.5kw pump

X,Y,Z Rail and Transmission

Taiwan TBI Ball Screw and gear rack

Max. Rapid Travel Rate

50000mm/min

Max. Working Speed

30000mm/min

Spindle Speed

24000RPM

Drive Motors

stepper motor and drivers or servo motor and drivers

Working Voltage

AC380V/3PH/50Hz or 220V

Command Language

G Code

Operating System

Nc studio or DSP/Mach3/Syntec

Software Compatibility

Option:Type3, Ucancam, Artcam, solidworks,etc.

Running Environment

Temperature: 0℃~45℃

Relative Humidity: 30%~75%

Parameters

Standard Specifications

Oil system

 Handel

Frame structure

Welding structure

Collect

 ER32 collect

Dust collector

1 pieces

wireless wheel

Yes

Application

Application of cnc router 1325:

1. Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.

2. Advertising industry:advertising materials such as PVC,acrylic,double color plate.

3. Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.

4. Metal industry:carving aluminum,copper,stainless steel and so on.

Cnc router cnc 3d router hot sales 1325 price 3d wood carving machine cnc router

Production Process:

Cnc router cnc 3d router hot sales 1325 price 3d wood carving machine cnc router

Package and Delivery

Package and Delivery of cnc router 1325:

Package Detail: 1.Outside package:Standard plywood package.

                           2.Inner package:Stretchy film and plastic film for humidity.

                           And we can package according to your requests.

Delivery Detail:  For atandard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients’ specific requirements,it will be 15 to 30 working days after payment.

Cnc router cnc 3d router hot sales 1325 price 3d wood carving machine cnc router

Company Information

Artech is comprehensive in the production, design, manufacturing, trade and service of CNC machine, and provide high quality and good efficient CNC machines worldwide. With a strong staff team, “Brand ArtechCNC” gained success in woodworking engraving machine, advertising engraving machine, stone engraving machine, metal engraving machine, laser engraving machine and laser cutting industry equipment. The production facilities occupies China’s forefront in development and expansion.

Cnc router cnc 3d router hot sales 1325 price 3d wood carving machine cnc router

Cnc router cnc 3d router hot sales 1325 price 3d wood carving machine cnc router

FAQ

Q1 For offer the most suitable machine,how should i do ?

1).The exact material you want to engrave/cut? (such as wood, acrylic, cloth, fabric, leather, metal…. ? )

2). For the Spindle Power, may I know the cutting or engraving depth you want?

3). The working area you demand? (such as max dimension of material, width*length,1200*1200mm,1300*2500mm,2000*3000mm, etc…

4). Do you want to engrave on planar &flat surface or round &curved surface?

If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.



Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if  you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.



Q3.How about your after-sales service?

we offer you 24 hours service phone,skype or MSN.



Q4.How about your guarantee period?

one year and during the time,if you have  any questions ,we will solve it for free.
