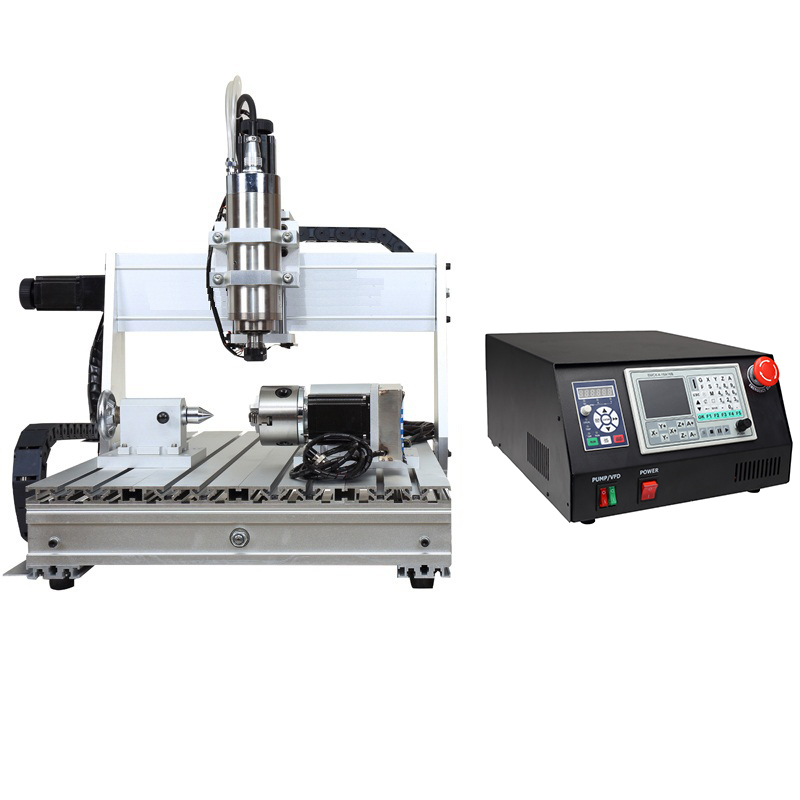

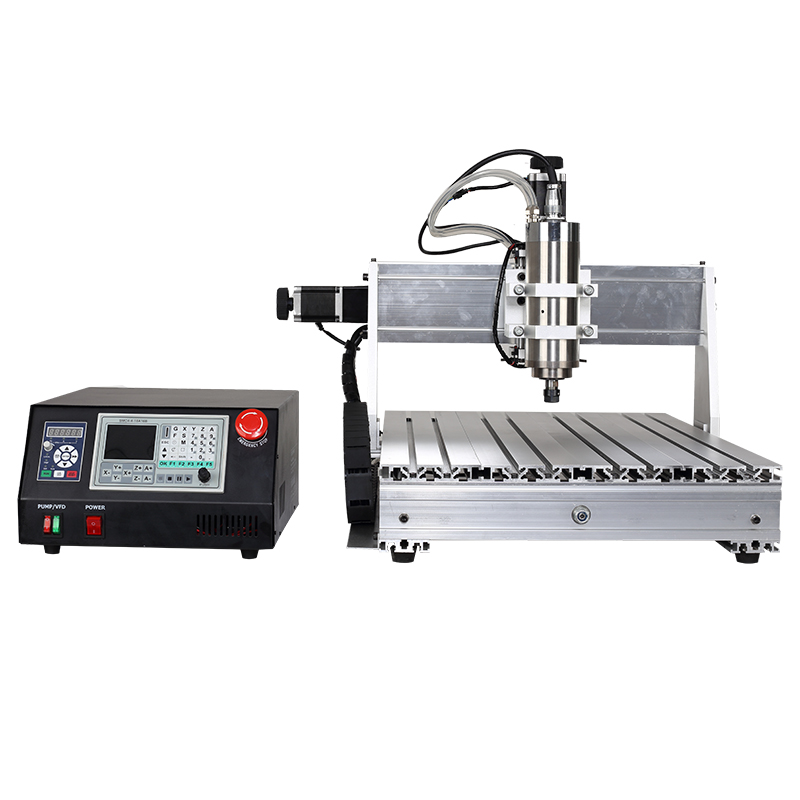

CNC 6040 4 Axis DSP mini wood Router Engraver Machine 1500W milling machine no need connect PC laptop

ر.س11,873.39

Clear
Qty:
Compare

Request quotation for: CNC 6040 4 Axis DSP mini wood Router Engraver Machine 1500W milling machine no need connect PC laptop

CNC 6040 4 Axis DSP mini wood Router Engraver Machine 1500W milling machine no need connect PC laptop


Highlights

 Highlights for this Multi-function 4 axis 6040 drilling and milling machine

Machine Structure Highlights

1.Operates without connevting computer

2.Ball screw made it a higher precision

3.Limited switch added

4.1500W water cooling spindle

5.4th axis can be plug-and-play.

6.Independent power supply for mainboard, prolong using life.

7.Auto-Checking function

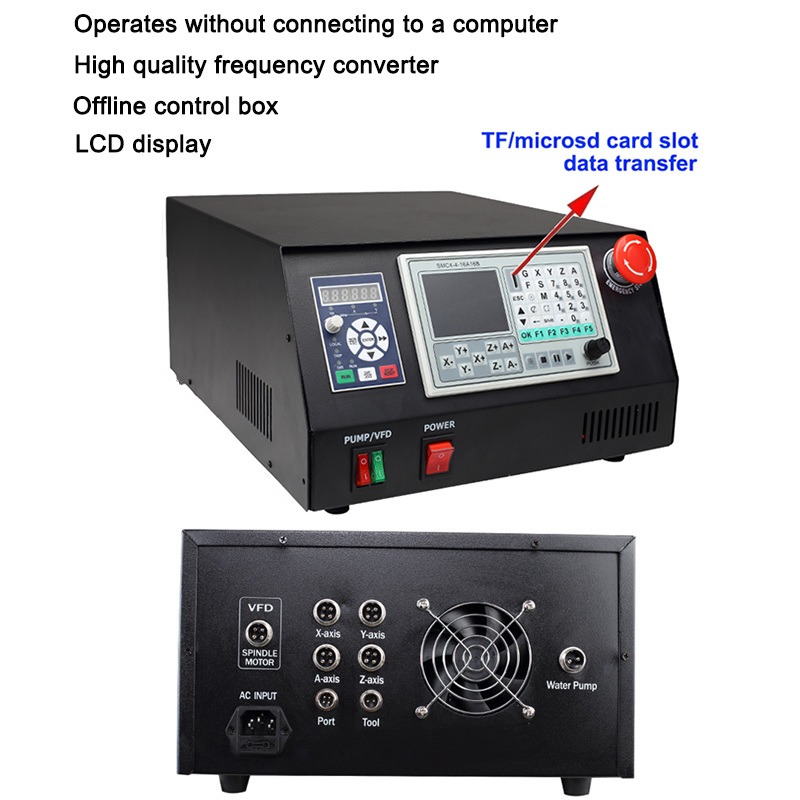

8.Control System Highlights

9.DSP version, no need connect extra PC laptop



Easy operate Mach 3

Auto-Checking function, easy to set origin of Z axis

Built-in frequency converter in control box

The control box can be CNC 4 axis universal

China Mini CNC Machine Manufacturer Excellent Service

Got CE approved

From reliable & trusworthy profesional China CNC router engraver manufacturer

Youtube cnc machine video support

Technical team always available

English manual available





This Easy handle 4 axis 6040 cnc bobby engraving machine can be widely used

A. Widely used not only for Aluminum but also acrylic, brass, wood, PVC, PCB and so on.

B. Ideal for milling, engraving, drilling & routing.

C. For Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes, Building Model Making, Advertising Signs,Artwork,Crafts,Aircraft Models,RC Model parts


Specifications





Effective working travel

580(X)mm*400(Y)mm*105(Z)mm

Shape dimension

880*670*640mm

Max.workpiece dimension

750mm*450mm<150m

Work table dimension

750mm*480mm

Frame materials

Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs

acceptable material thickness

≤150mm

Driving units

X/Y/Z axis

1605 ball screw

Sliding units

X axis

Dia.16mm chrome plate shafts

Y axis

Dia.20mm chrome plate shafts

Z axis

Dia.13mm chrome plate shafts

Stepping motor type

57 two-phase 3A 150N.cm

Spindle motor

Brand new 1500W water cooling spindle, 24000RPM

Principal axis collet

ER20/3.175 mm/6mm

Repeat accuracy

0.05mm

Spindle precision

radial beat accuracy is 0.03 mm

Carving Instructions

G code/TAB files/nc file/NCC files

Communication interface

offline connection with computer

Software environment

Windows xp/Win7/Win8/Win10

Maximum speed

0-4000mm/min

Carving speed

0-2500mm/min(different materials differ)

Control unit

Toroidal transformer+PWM power supply module +TB6560 3axis drive board

Computer connection

Operates without connevting

Command code

G code

Acceptable software

Mach3

protection

Emergency stop button

Operating Voltage

AC110V/220V

Machine weight

(Package weight)

3axis 61kg  4axis 68kg

Package dimension

Top:62*49*52cm Bot:80*22*63cm

The 4th axis parameter

Size

220(L)*116(W)*105(H)mm

Centre-height

65mm

Clamping diameter

80mm

Reduction ratio

1:3





Product Description



Why CNC 6040 Machine be better than others?







Detailed Images

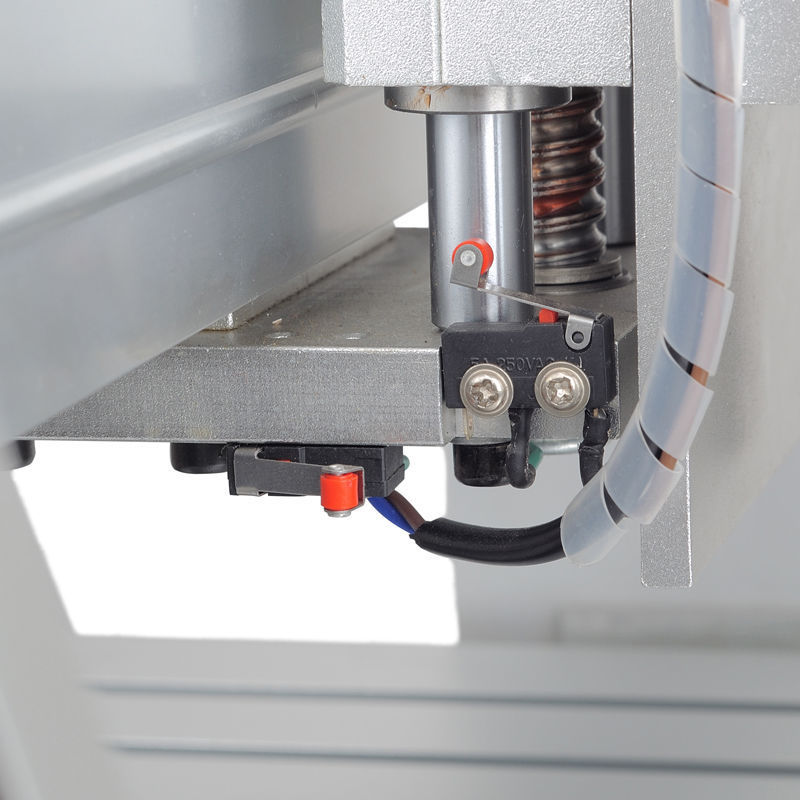

123.jpg51113.jpg1314.jpg6 Limit Switches On X / Y / Z Axes1418.jpg1617.jpg66.jpg








Packaging list



Packing list : (TWO Carton Box, 62*49*52cm / 80*22*63 cm, total weight 68KG)

1 * CNC 6040 engraving machine

1 * 4axis controller box

1 * 4th axis for CNC6040
1 * water pump for cooling spindle
1 * CD (software)
4 * Fixed briquetting
1 * milling bit
3 * clamp tool
1 * auto-checking tool
6 * clamp tool
3 * engraving bit
1 * collet 3.175

4 * screws

4 * limited switch
packing list - .png
