Product Overview
Mixer maintenance and maintenance：
1 Maintain the cleanliness of the body and remove dirt and obstacles on the body.
1 Maintain the cleanliness of the body and remove dirt and obstacles on the body.
2 Check the oil and circuit and control equipment of each lubrication place, and add lubricating oil as required.
3 Before each shift, add water to the mixing drum and run it for 1 to 2 minutes. At the same time, check the reliability of the clutch and brake device.
4 During the operation of the concrete mixer, check whether the noise of the motor, reducer, and transmission gear is normal, and whether the temperature rise is too high.
5 After each shift, the concrete mixer should be cleaned carefully.
6 In order to ensure its technical performance, it is necessary to pay attention to not shoddy, and high-quality bearings must be selected during maintenance and reconstruction.

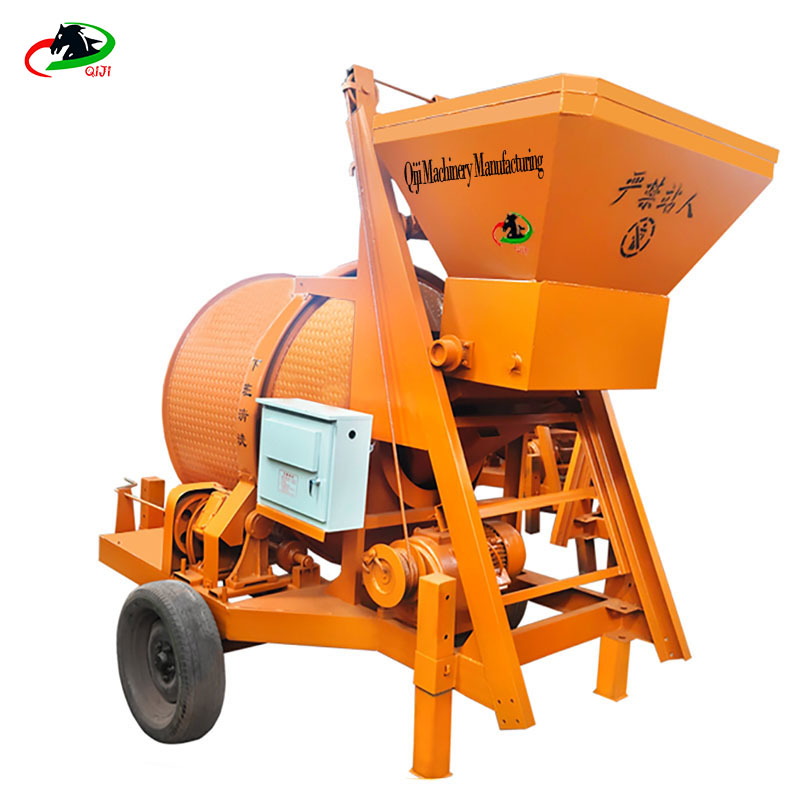

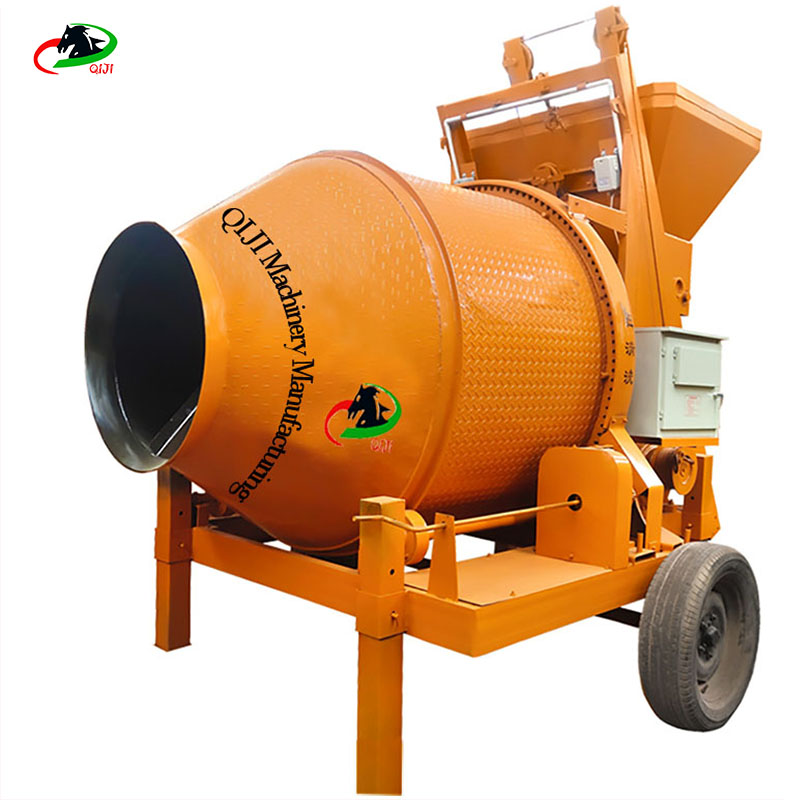

Multifunctional concrete mixer
Concrete mixer is a kind of ring gear drive concrete mixing equipment. The mixer produced by our factory is easy to operate, convenient and fast, low energy consumption, low noise, stable operation, and compact structure. At present, most of the domestic construction concrete mixing facilities are based on it, which is very common.
The mixer is designed and manufactured according to GB/T9142-2000 <>, with reasonable structure, high productivity, good mixing quality, beautiful appearance, convenient movement, etc.It is a popular model.
PRODUCT SPECIFICATIONS
|
Concrete mixer parameters
|
||
|
Product brand
|
QIJI
|
|
|
Product model
|
QJ-JZC500
|
|
|
capacity
|
800L
|
|
|
stirring motor
|
5.5KW
|
|
|
water supply motor
|
0.75kw
|
|
|
Lifting motor
|
4.5KW
|
|
|
Producivity
|
18-20m³/H
|
|
|
Mixing barrel speed
|
18r/min
|
|
|
Discharge capacity
|
500L
|
|
|
Feeding Capacity
|
800L
|
|
|
stir the largest partcles
|
60MM
|
|
|
Water supply accuracy
|
Error≤2%
|
|
|
Tire specifications
|
6.50-18
|
|
|
weight
|
2800kg
|
|
|
Dimensions
|
3200*2700*3400mm
|
|
PRODUCT CONFIGURATION
Pure copper core motor
The multi-function concrete mixer adopts all-copper international motor, and the movement adopts high quality red copper coil. The coil is high temperature resistant, the motor is not burned, the speed is faster, the attraction is stronger and the service time is longer.
Recommend Products
Company Profile
|
Packaging
|
||
|
Size
|
2766(L)*2140(W)*3000(D)
|
|
|
Weight
|
1950kg
|
|
|
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to europeancountries,the wooden box will be fumigated.If container is too
tigher,we will use pe film for packing or pack it according to customers special request |
|
We are a manufacturer and exporter specializing in the design, development and production of construction machinery products. The company is located in Xingtai City with convenient transportation. All our products comply with international quality standards and have passed CE, SGS and other EU certifications. Our products enjoy a good reputation among customers. We welcome friends from business associations around the world to contact us and seek mutually beneficial cooperation.
Our company produces various specifications and models of electric/diesel concrete pumps. Mortar spraying machine. Gypsum putty sprayer. Multifunctional sprayer of waterproof material. Mortar grouting machine. Automatic plastering machine. Construction machinery, such as high-pressure airless sprayer. The product has passed CE certification. SGS. Product warranty for 12 months.The main parts are guaranteed for 2 years.
FAQ
1.Are you manufacture？
ans：Yes, we have more than 15 years of professional manufacturing experience.
2.what is your terms of payment? ans：Payment terms support TT. credit card. Bank card. LC. Wait for customer service。
3.what is your terms of delivery？
ans：EXW，FOB, CFR, CIF, DDP, DDU.
ans：EXW，FOB, CFR, CIF, DDP, DDU.
4.About delivery time？
ans：Shipped within 3-7 days after receiving payment. Except for customized
models (you can contact customer service.
5What is the warranty of our machine？
ans：The machine is guaranteed for 12 months and the main parts are guaranteed for 2 years.
6.Do you test att your goods before delivery？
ans：Products will be tested before delivery.
7.What is your terms of packing？
ans：Use fumigation-free wooden box.
8.Do you Preferrde provide wear parts for transacted clients？
ans：We provide customers with wearing parts.
Reviews
There are no reviews yet.
