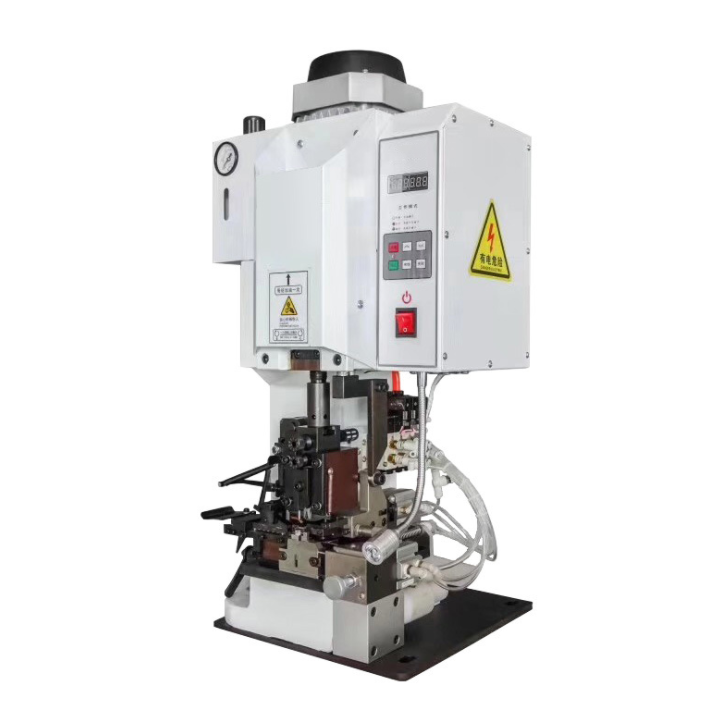

Automatic horizontal feeding stripping and multi-core wire riveting terminal stripping integrated pneumatic crimping machine

ر.س3,050.00

Clear
Qty:
Compare

Request quotation for: Automatic horizontal feeding stripping and multi-core wire riveting terminal stripping integrated pneumatic crimping machine

Product Description

Notice before order

1. The price is for machine price, not including mold, according to different requirements, the mold will be different, the price of mold wil be different, u can contact with us. WP:+8.6.1.3.2.7.0.9.8.7.5.3.6 or haoxinhe(@)foxmail(.)com

2.The color and face will be not same because of different big bulk production,the function will be same, if u have special requirement of color, welcome to contact me here.
Scope of application:

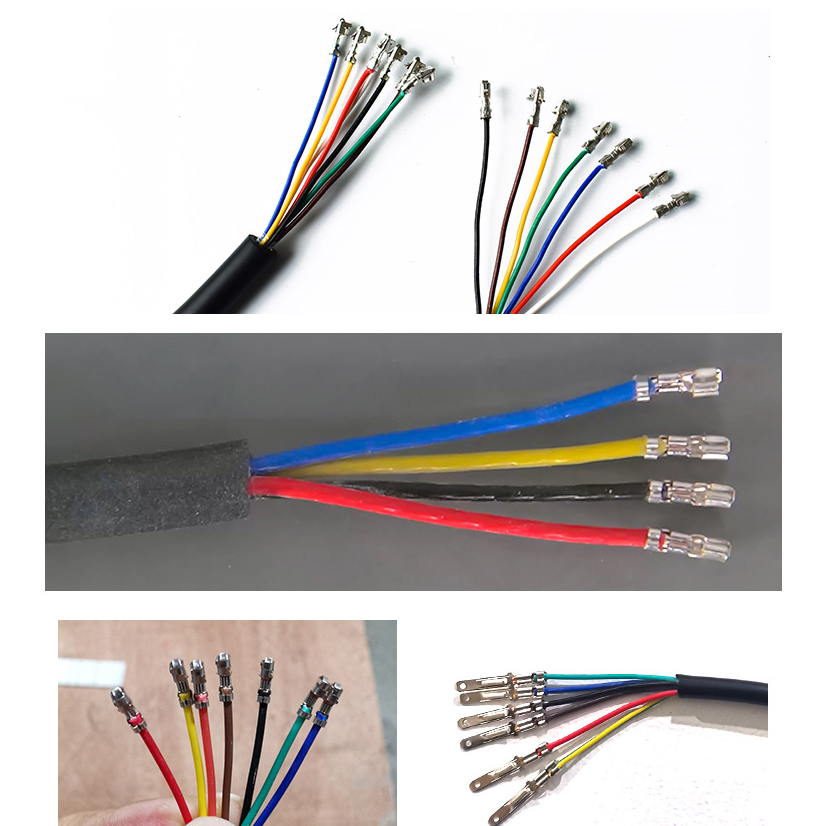

USB multi-core wire, computer multi-core wire and various screen multi-purpose core wires and other wires
Wire specification: AWG18# -32#
Stripping length: 1-7mm
Cutting precision: adjustment range 1mm+cutting length*0.5% or less
Terminal type: open continuous terminal, horizontal
Terminal machine pressure: 1.5T/2.0T
Stroke: 30mm
Power supply: AC220V
Weight: 70kg
Size: 400*600*850mm
Specification
Place of Origin
China
Jiangsu
Brand Name
HXH
Model Number
HX-BPDD2.0T
Usage
Multifunctional
Function
Terminal Crimping Machine wire crimping machine
AWG18# -32#Weight
70KG
Power
220V/110V
Crimper capacity
2000KC
stroke
30MM
Keywords
wire crimping machine
Mould
integrated,only can change blade
Size
L460*W210*H220MM
Packing & Delivery
It depends on the situation,wooden case packing,
carton packing,and so on
Packing according to customer's requirement
