Horizontal prying air compressor
Vertical prying air compressor

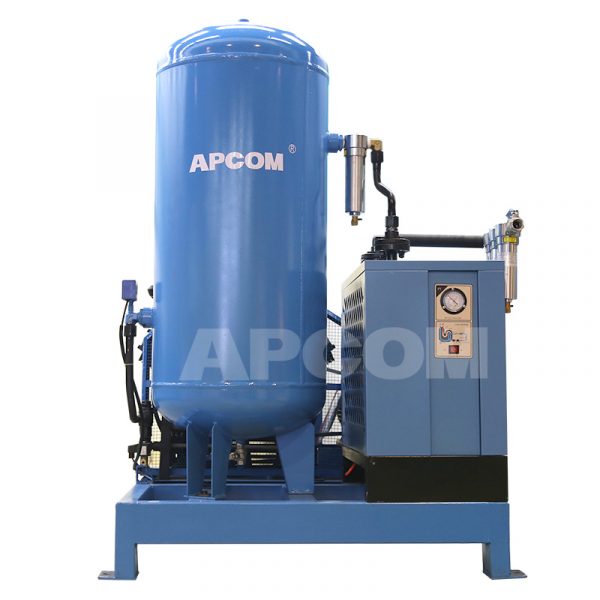

Air compressor with air tank
|
Model
|
SWH-1.2/30-D
|
|
|
Power
|
15kw
|
|
|
Air flow
|
1.2m3/min
|
|
|
Pressure
|
3.0Mpa
|
|
|
Power Supply
|
380V
|
|
|
Motor speed
|
820r/min
|
|
|
Size
|
1600*1400*2000mm
|
|
|
Weight
|
800kg
|
|
|
Volume of air tank
|
300L
|
1 Horizontal prying air compressor
2 Vertical prying air compressor
High pressure PET bottle blowing
Air compressor specialized series:
* All-around-clock continuous running；
* Stable,safe and reliable;APCOM PET bottle Blowing high pressure air compressor pet blow moulding 40 30 20 bar air compressor
* PLC control,high-efficient and energy-conserving;
* Small cover,low maintain,the best of air supply system for PET bottle blowing machine.
|
Model
|
Power
|
Capacity
|
Pressure
|
Speed
|
Size
|
Weight
|
|
kw
|
m3/min CFM
|
bar
|
r/min
|
L*W*H cm
|
Kg
|
|
|
SSA130H
|
18.5
|
1.6m3/min 57 CFM
|
30
|
750
|
101*110*165
|
740
|
|
2*SSA130H
|
2*18.5
|
3.2m3/min 114 CFM
|
30
|
750
|
203*110*165
|
2*740
|
|
3*SSA130H
|
3*18.5
|
4.8m3/min 171 CFM
|
30
|
750
|
307*110*165
|
3*740
|
|
SSA120H
|
15
|
1.2m3/min 43 CFM
|
40
|
800
|
101*100*165
|
725
|
|
2*SSA120H
|
2*15
|
2.4m3/min 86 CFM
|
40
|
800
|
203*100*165
|
2*725
|
|
3*SSA120H
|
3*15
|
3.6m3/min 129 CFM
|
40
|
800
|
305*100*165
|
3*725
|
|
SSA135H
|
22
|
1.7m3/min 60 CFM
|
40
|
850
|
101*111*165
|
811
|
|
2*SSA135H
|
2*22
|
3.4m3/min 120 CFM
|
40
|
850
|
203*111*165
|
2*811
|
|
3*SSA135H
|
3*22
|
5.1m3/min 180 CFM
|
40
|
850
|
307*111*165
|
3*811
|
3 Air compressor with air tank
20 – 30 bar
|
Model
|
Power
|
Pressure
|
Capacity
|
Cylinder diameter
|
Size (L*W*H)
|
Weight /Tank
|
|
HTA100X
|
7.5kw
|
20-30 bar
|
0.63m3/min 25 CFM
|
2*Φ100+1*Φ55
|
149*60*116
|
380kg /220 L
|
|
HTA120X
|
11kw
|
20-30 bar
|
1.00m3/min 35 CFM
|
2*Φ120+1*Φ65
|
174*69*138
|
576kg /400 l
|
|
STA155
|
15kw
|
20-30 bar
|
1.20m3/min 43 CFM
|
Φ155+Φ100+Φ55
|
183*73*144
|
610kg /400 L
|
|
SSA130
|
18.5kw
|
20-30 bar
|
1.60m3/min 57 CFM
|
2*Φ135+Φ100+Φ60
|
185*75*149
|
695kg /400L
|
40 bar
|
Model
|
Power
|
Pressure
|
Capacity
|
Cylinder diameter
|
Size (L*W*H)
|
Weight /Tank
|
|
HTA110X
|
11kw
|
40 bar
|
0.73m3/min 26 CFM
|
2*Φ110+1*Φ65
|
161*65*130
|
450kg /220 L
|
|
SSA120
|
15kw
|
40 bar
|
1.20m3/min 43 CFM
|
2*Φ120+Φ100+Φ55
|
181*75*148
|
681kg /400 l
|
40 bar 185 CFM Compressor
3*22kw combined air compressor with electric control cabinet, 40 bar 185 CFM 5.1m3/min.
20 30 40 bar Compressor Host
20 bar series piston air compressor;
30 bar series piston air compressor;
40 bar series piston air compressor.
Real production workshop
100% of the parts of the high pressure piston engine are manufactured by themselves (except piston rings, pistons, intake and exhaust discharge groups, valves).
