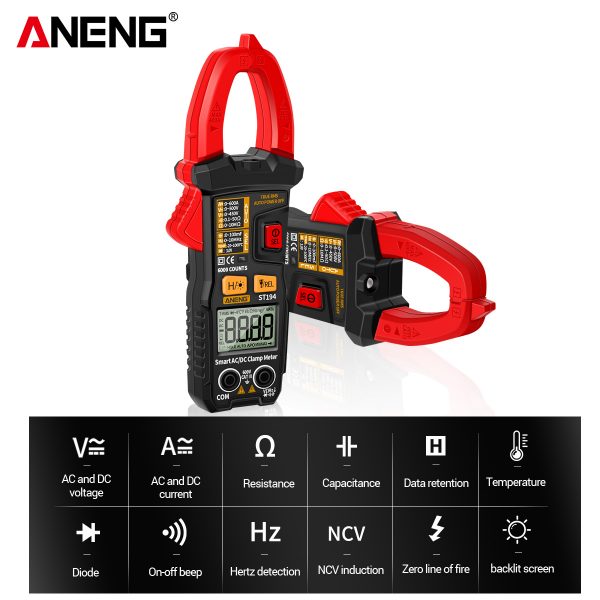

ANENG ST194
Digital Professional Multimeter Clamp
Description:
The strument is an professional measuring instrument with liquid crystal display and a back light source.
The user readings in easily.Single hand operation with overload protection and low battery Indication.For professional,factory,school,lovers,or family use,is a ideal multi-functional Tester
Specification:
|
Function |
ST193 |
ST194 |
|
DC Current DCA |
|
Yes |
|
AC Current ACA |
Yes |
Yes |
|
DC Voltage DCV |
Yes |
Yes |
|
AC Voltage ACV |
Yes |
Yes |
|
Resistance |
Yes |
Yes |
|
Diode/Capacitor/On-off beef |
Yes |
Yes |
|
Frequency |
Yes |
Yes |
|
Touch Key |
Yes |
Yes |
|
Data Retention |
Yes |
Yes |
|
NCV |
Yes |
Yes |
|
Zero Line/Fire Line Test |
Yes |
Yes |
|
Backlight manual/Auto off |
Yes |
Yes |
|
True RMS Measurement |
Yes |
Yes |
|
Temperature(℃°F) |
Yes |
Yes |
|
Flashlight lighting |
Yes |
Yes |
|
Function |
Range |
Accuracy |
|
AC Current ACA |
6~600A |
+-(3%+20) |
|

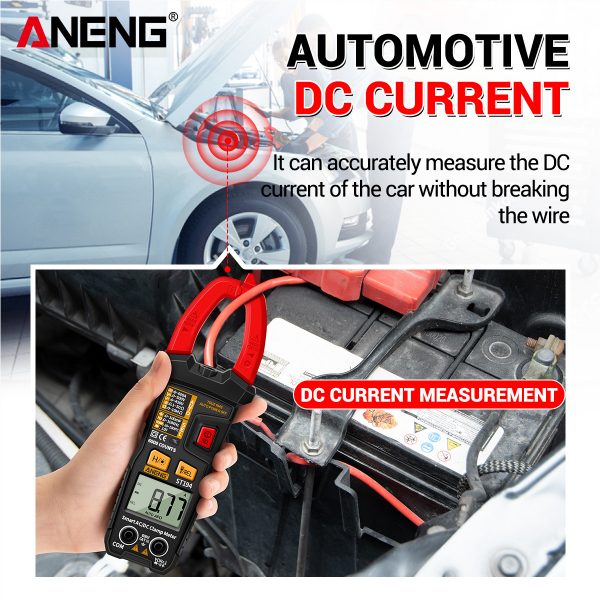

DC Current DCA |
0~600A |
+-(3%+8) |
|
DC Voltage DCV |
0~500V |
+-(0.5%+5) |
|
AC Voltage ACV |
0~450V |
+-(1.2%+5) |
|
Capacitor |
0~99.99mF |
+-(2%+20) |
|
Resistance |
0~10MΩ |
+-(0.8%+3) |
|
Temperature(℃°F) |
-20℃~1000℃ |
+-(1.9%+5d) |
|
|
-4°F~1832°F |
+-(1.9%+6d) |
|
Frequency |
0~9.999MH |
+-(0.1%+2) |
|

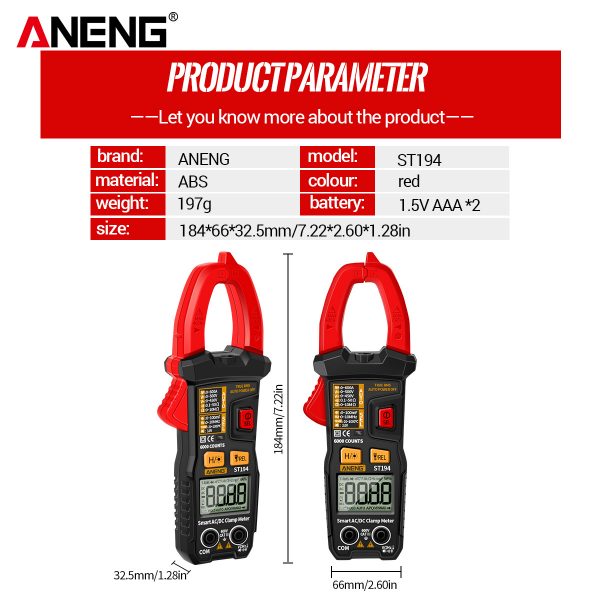

Max Display(LCD) |
Battery Type |
Material |
|
6000 Counts |
AAA(1.5V)*2 |
ABS |
C.Package Include:
1*clamp meter
2*Test lead wire
1*Thermocouple
1*Manual
1*Storage bag
1*Packing box(According to the choice)
