Specification:
|
Brand |
ANENG |
Model |
Q10 |
|
Display (LCD) |
9999 |
Range |
automatic / manual |
|
Material |
ABS+TPE |
Sampling rate |
3 times/sec |
|
True RMS |
yes |
Data retention |
yes |
|
Screen backlight |
yes |
Low battery warning |
yes |
|
Automatic shut-down |
yes |
type of battery |
3 * 1.5V AA battery (not included) |
|
Features |
Range |
Precision |
AC frequency response |
|
DC Current |
9.999A/999.9mA |
±(1.0%+3) |
– |
|
DC Current |
99.99mA/9.999mA/99.99μA/999.9μA |
±(0.8%+3) |
– |
|
AC current |
9.999A/999.9mA |
±(1.2%+3)
|
40Hz~1kHz |
|
AC current |
99.99mA/9.999mA/99.99μA/999.9μA |
±(1.0%+3) |
40Hz~1kHz |
|
DC voltage |
999.9mV/9.999V/99.99V/ 999.9V/9.999mV/99.99mV/999.9mV |
±(0.5%+3) |
– |
|
AC voltage |
999.9mV/9.999V/99.99V/ 750.0V/9.999mV/99.99mV/999.9mV |
±(1.0%+3) |
40Hz~1kHz |
|
Resistance |
99.99Ω |
±(1.0%+3) |
– |
|
Resistance |
999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ |
±(0.5%+3) |
– |
|
Resistance |
9.999MΩ |
±(1.5%+3) |
– |
|
Resistance |
99.99MΩ |
±(3.0%+5) |
– |
|
Capacitance |
9.999nF |
±(5.0%+20) |
– |
|
Capacitance |
99.99nF/999.9nF/ 9.999μF/99.99μF/999.9μF |
±(2.0%+5) |
– |
|
Capacitance |
9.999mF |
±(5.0%+5) |
– |
|
Frequency |
99.99Hz/999.9Hz/9.999kHz/ 99.99kHz/999.9kHz/5.000MHz |
±(0.1%+2) |
– |
|
Temperature |
(-20~1000)℃ / (-4~1832)℉ |
±(2.5%+5) |
– |
|
Duty cycle |
1%~99% |
diode |
yes |
|
On and off |
yes |
NCV |
yes |
|
working environment |
temperature |
0~40℃ |
|
|
humidity |
<75% |

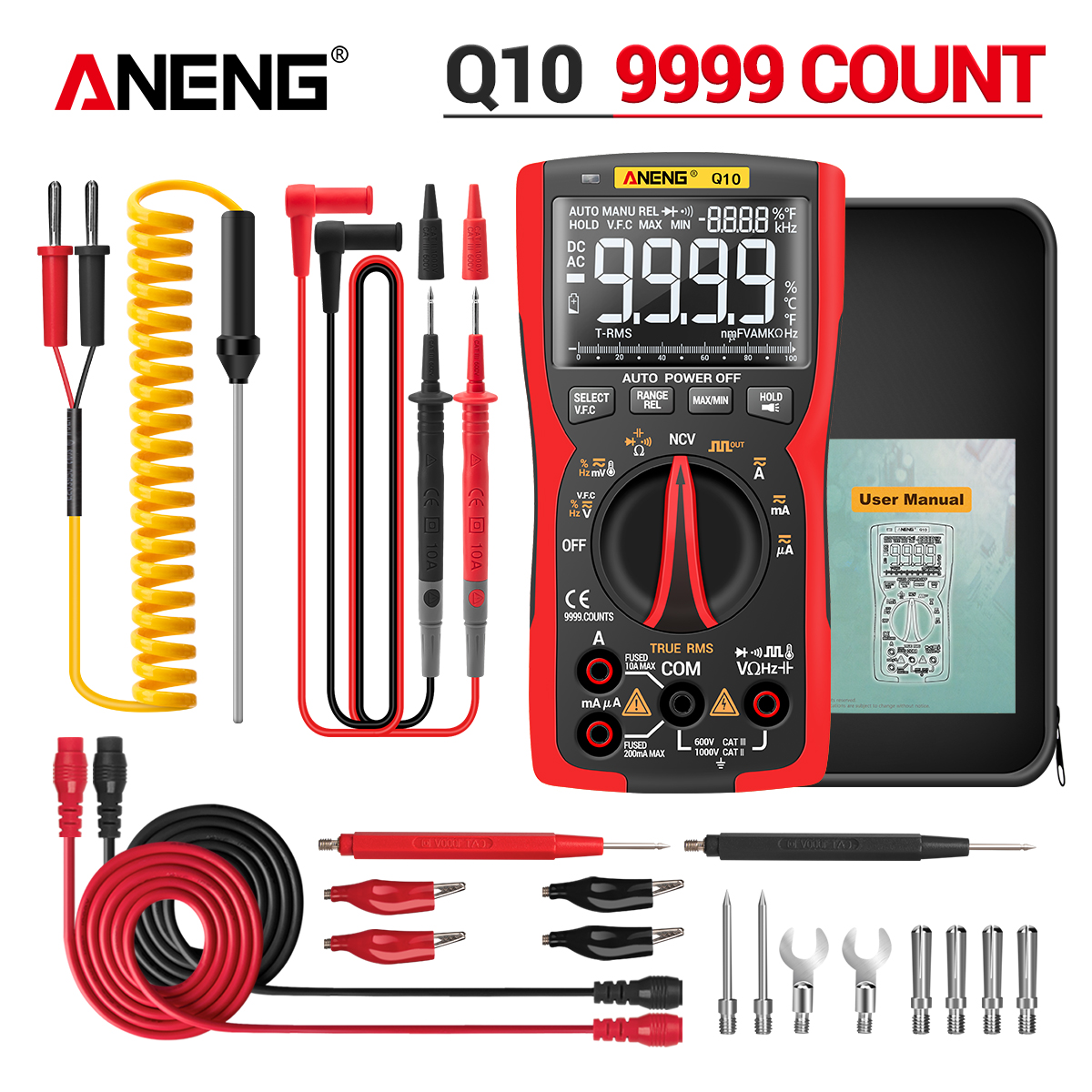

Package:
1 * ANENG Q10 Digital Multimeter
2 * Test lead wire
1 * Thermocouple
1 * Manual
1 * Cloth bag(According to the choice)
1 * 16 in 1 combination line(According to the choice)
