ANENG M11 PRO Digital Multimeter 6000 Counts Profissional Transistor Tester Multimetro Multitester Analogico Lcr Meter

ر.س322.21

Clear
Qty:
Compare

Request quotation for: ANENG M11 PRO Digital Multimeter 6000 Counts Profissional Transistor Tester Multimetro Multitester Analogico Lcr Meter

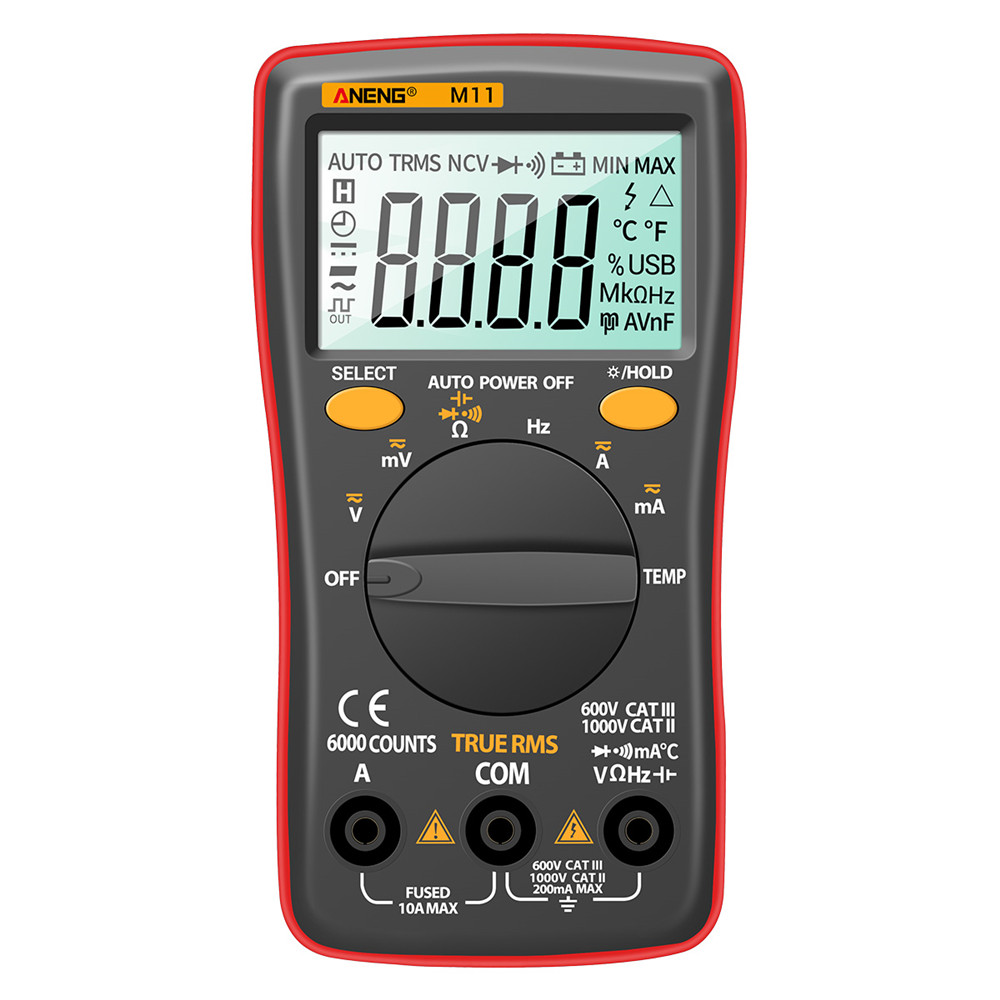

ANENG M11 Digital Multimeter AC/DC Voltage Ammeter Capacitance Resistance Triode Tester

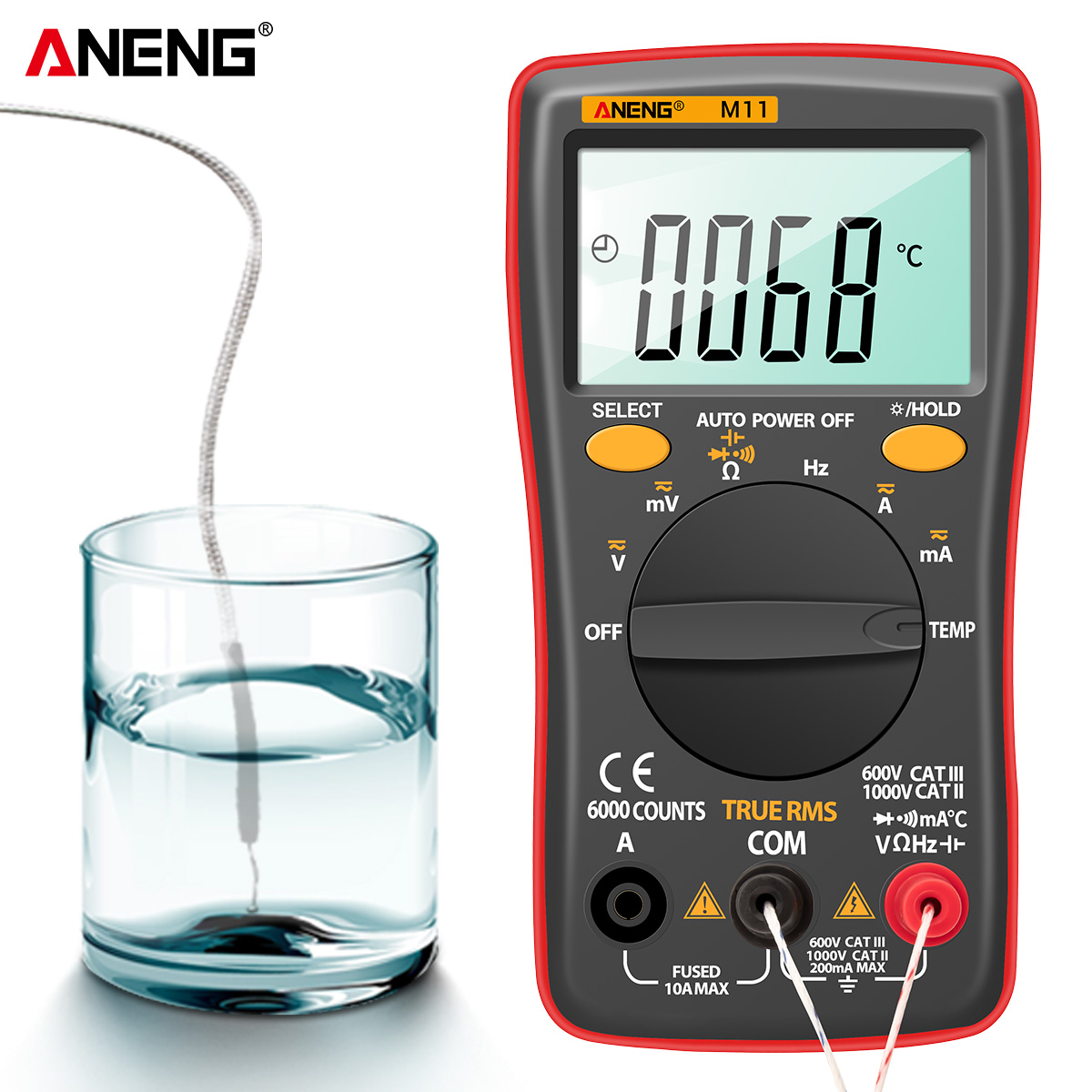

 M11 can measure temperature

Specification:

  Display(LCD)   6000 counts  Ranging   Auto
  Material   ABS       Update Rate   3 times/second
  Ture RMS      Data Hold
  Backlight      Low Battery Alert
  Auto Power Off      Diode
  Continuity      Battery Type   1.5V AAA Battery * 2(Not Included)
  Function   Range   Accuracy   MAX.Value
  DC Voltage (V)   6.000V / 60.00V / 600.0V / 1000V   ±(0.5%+3)   1000V
  DC Voltage (mV)   60.00mV / 600.0mV  ±(0.5%+3)   600mV
  AC Voltage (V)   6.000V / 60.00V / 600.0V / 750V   ±(1.0%+3)   750V
  AC Voltage (mV)   60.00mV / 600.0mV   ±(1.0%+3)   600mV
  DC Current (A)   6.000A / 10.00A   ±(1.2%+3)   10A
  DC Current (mA)   60.00mA/ 600.0mA   ±(1.2%+3)   600mA
  AC Current (A)   6.000A / 10.00A   ±(1.5%+3)   10A
  AC Current (mA)   60.00mA/ 600.0mA   ±(1.5%+3)   600mA
  Resistance   600.0Ω/ 6.000kΩ/ 60.00kΩ/ 600.0kΩ / 6.000MΩ   ±(0.5%+3)   60MΩ
  Resistance   60.00MΩ   ±(1.5%+3)   60MΩ
 Capacitance   9.999nF   ±(5.0%+20)   9.999mF
Capacitance
  99.99nF/ 999.9nF/ 9.999μF / 99.99μF / 999.9μF   ±(2.0%+5)    9.999mF
  Capacitance   9.999mF   ±(5.0%+5)    9.999mF
  Frequency   99.99Hz / 999.9Hz/  9.999kHz / 99.99kHz/ 999.9kHz / 9.999MHz   ±(0.1%+2)   9.999MHz



  Duty Cycle   1%~99%   ±(0.1%+2)

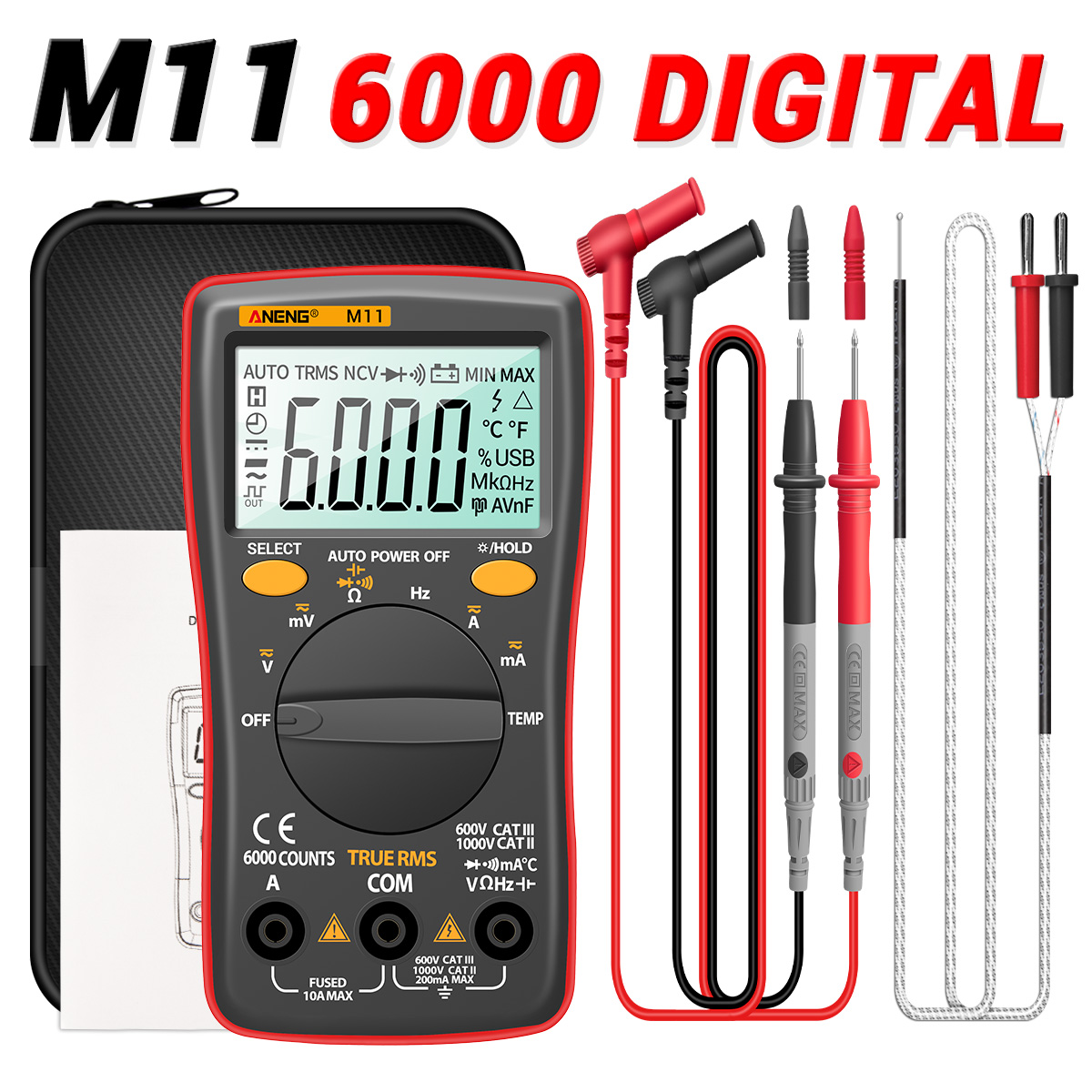

Packing lncluded:

1 x ANENG M11 Digital Multimeter

1 x Standard wiring

1 x English User Manual

1 X Cloth bag

-750_01.jpg-750_02.jpg-750_03.jpg-750_04.jpg-750_05.jpg-750_06.jpg-750_07.jpg-750_08.jpg-750_09.jpg-750_10.jpg-750_11.jpg-750_12.jpg-750_13.jpg-750_14.jpg-750_15.jpg-750_16.jpg

Color

Red, Blue, Orange
