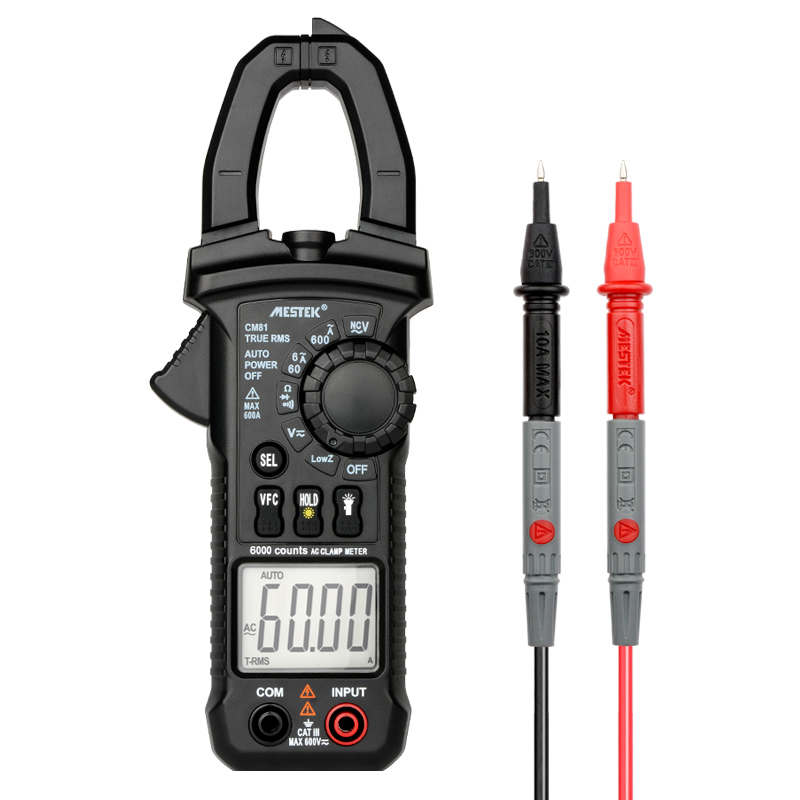

CM81 is a stable, secure, and reliable Digital Clamp Meter. Full mechanical and electrical circuit design LSI double integral A / D converter change as the core, full scale overload protection circuit,independent. The special design makes it the superior performance of the dedicated electric Instrumentation.Clamp can be used to measure AC and DC voltage, AC Current, resistance, diode, the circuit off and so on.
Specifications
Specification Range CM81
DC Voltage 600mV ±(1.0% +3)
6V/60V/600V ±(0.8% +5)
AC Voltage 6V/60V/600V ±(1.5% +5)
AC Current 6A/60A/600A ±(4.0% +10)
Resistance 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ ±(2.0% +2)
Display 6000 counts

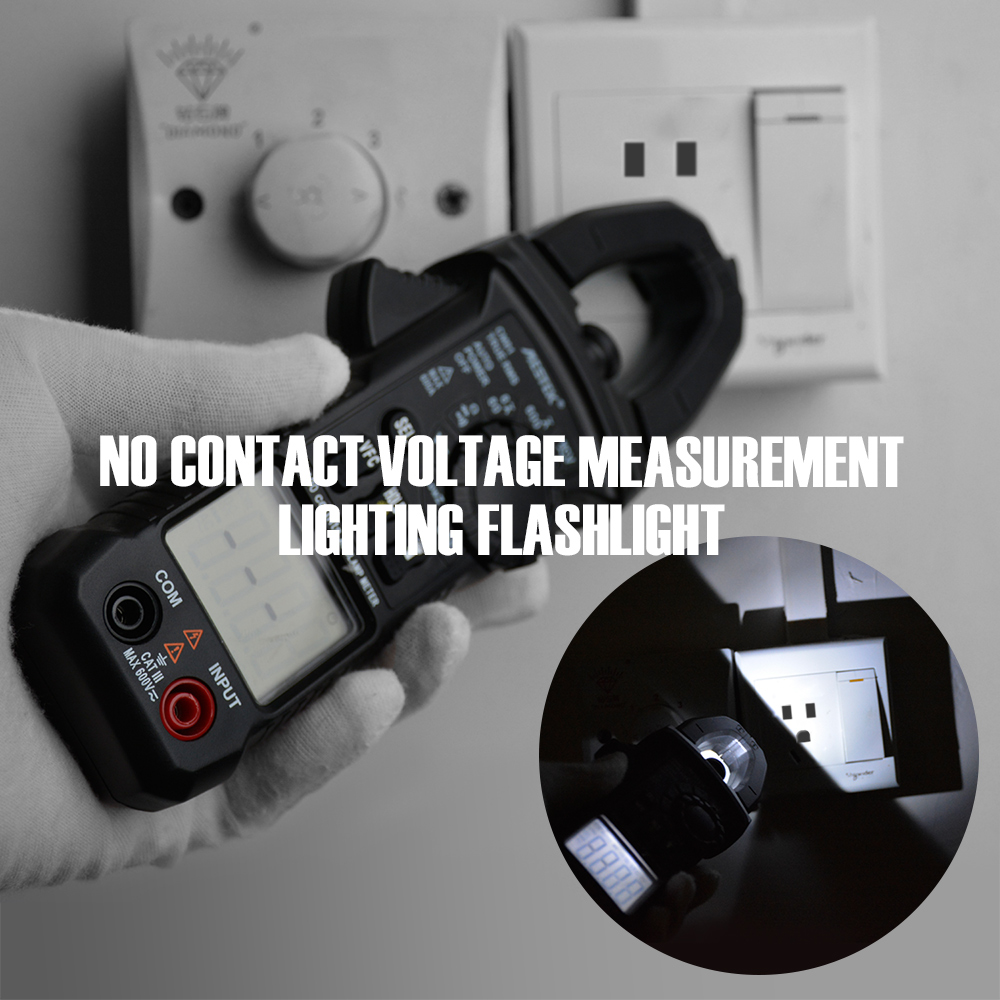

Non-contact AC Voltage Detection √
Diode 2.7V √
Continuity Buzzer <50Ω √
Data Hold √
Display Backlight √
Power Supply 2×1.5V AAA Batteries √
Product Size 191mm×70mm×37mm√
Product Weight 195g/0.4lb √
Safety Level CAT.III 600V CE

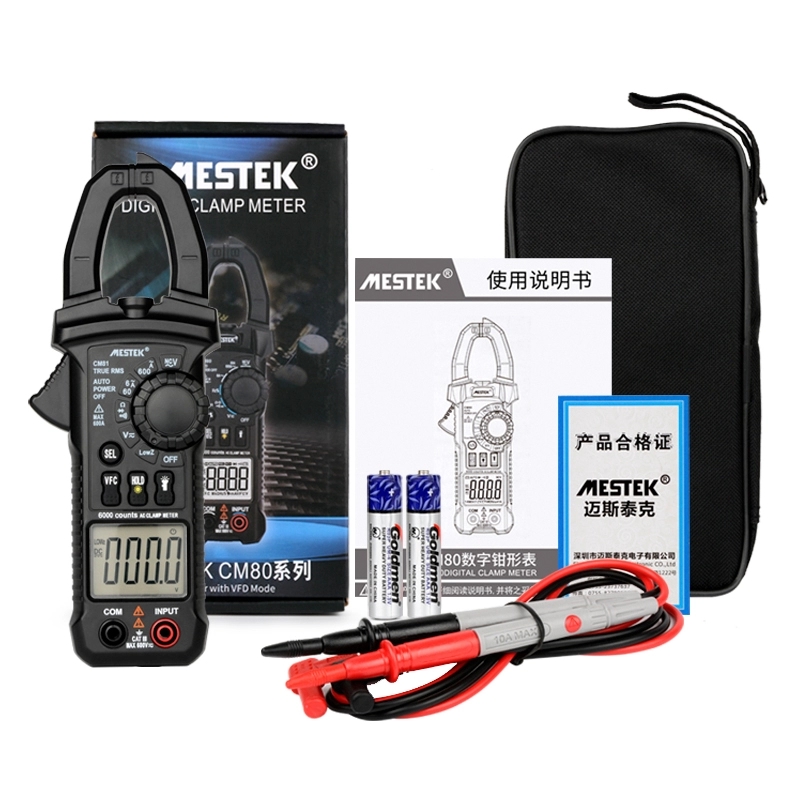

Standard Accessories Multimeter-Probe-Batteries-User Manual-Color Box
