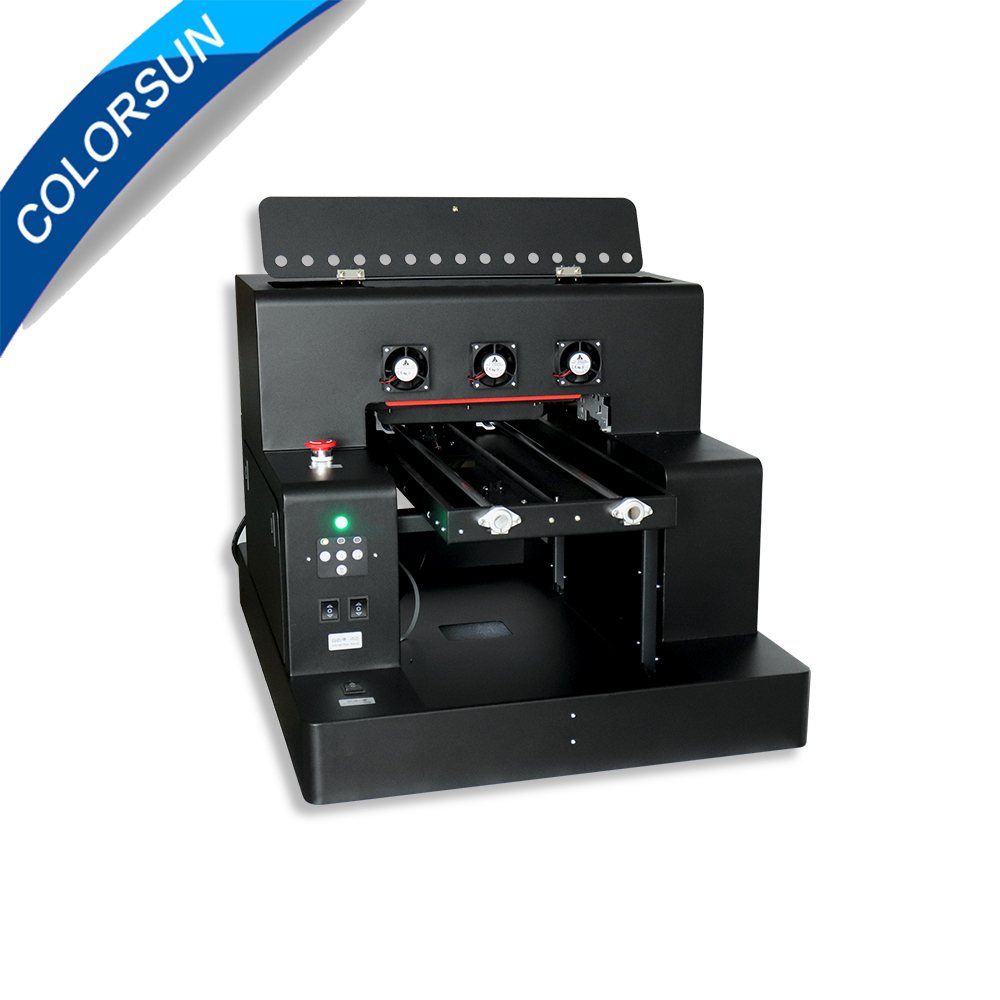

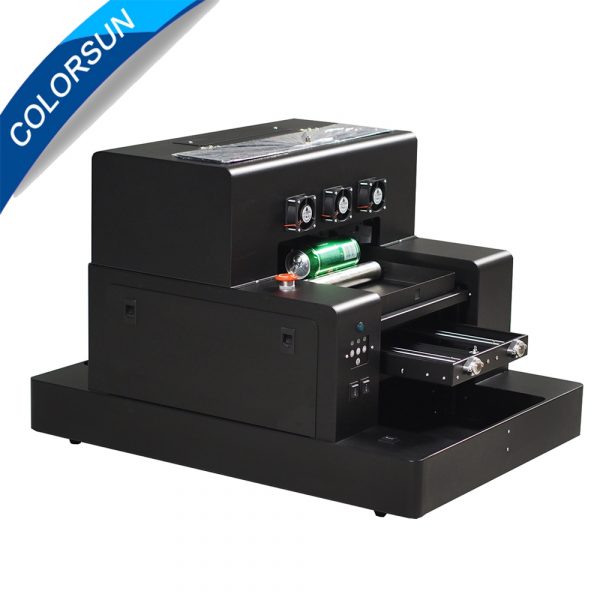

2020 new A3 UV printer automatic phone case bottle printing machine with pen tray free
Product name: A3 UV Printer 6 Colors
Can this printer just print Phone -Case ?
No, this printer can print: leather, nameplate, PVC card, PCB, insole, phone case, puzzle, instrument panel,Metal accesor, Stone paintings, feathers, flowers, card, u disk, board painting and etc, print all products can put into printer.
You can print phone case, Holster, CARDS, acrylic, glass and etc after clean the print head or replace a new head.
Upgraded Advantage:
1. Automatically adjust the printable height (also can be adjusted manually)

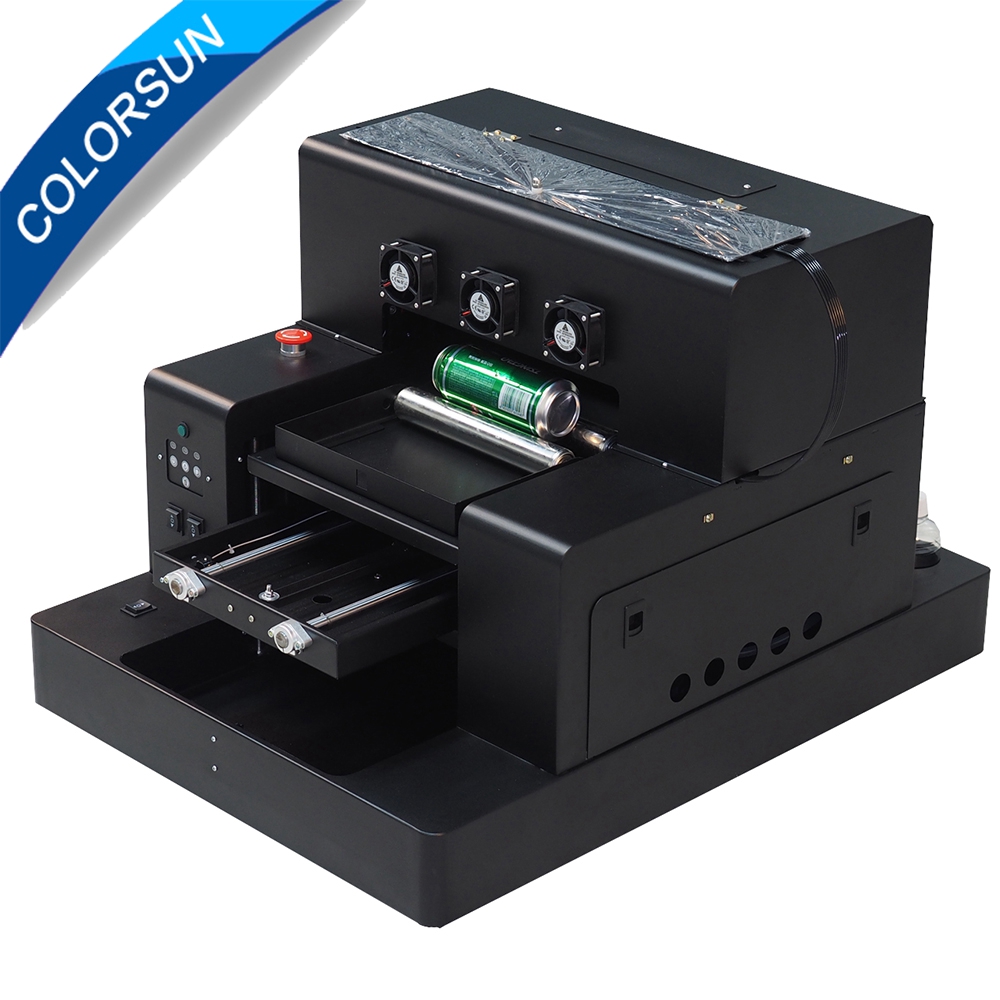

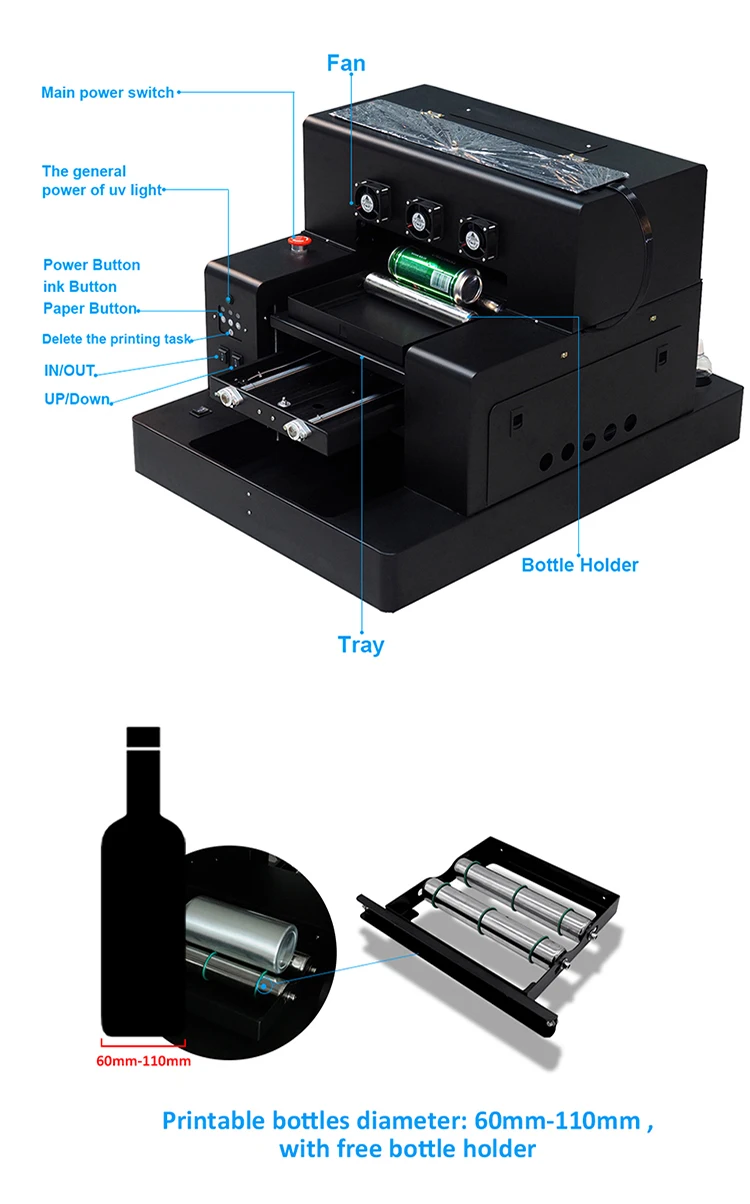

2. Printable bottles (diameter: 60mm-110mm), with free bottle holder.
3. Free RIP9.0 software, can print both white and color at the same time to improve production efficiency
Our uv printer advantage :
1. Mute screw and guide rail, low noise and fast speed.

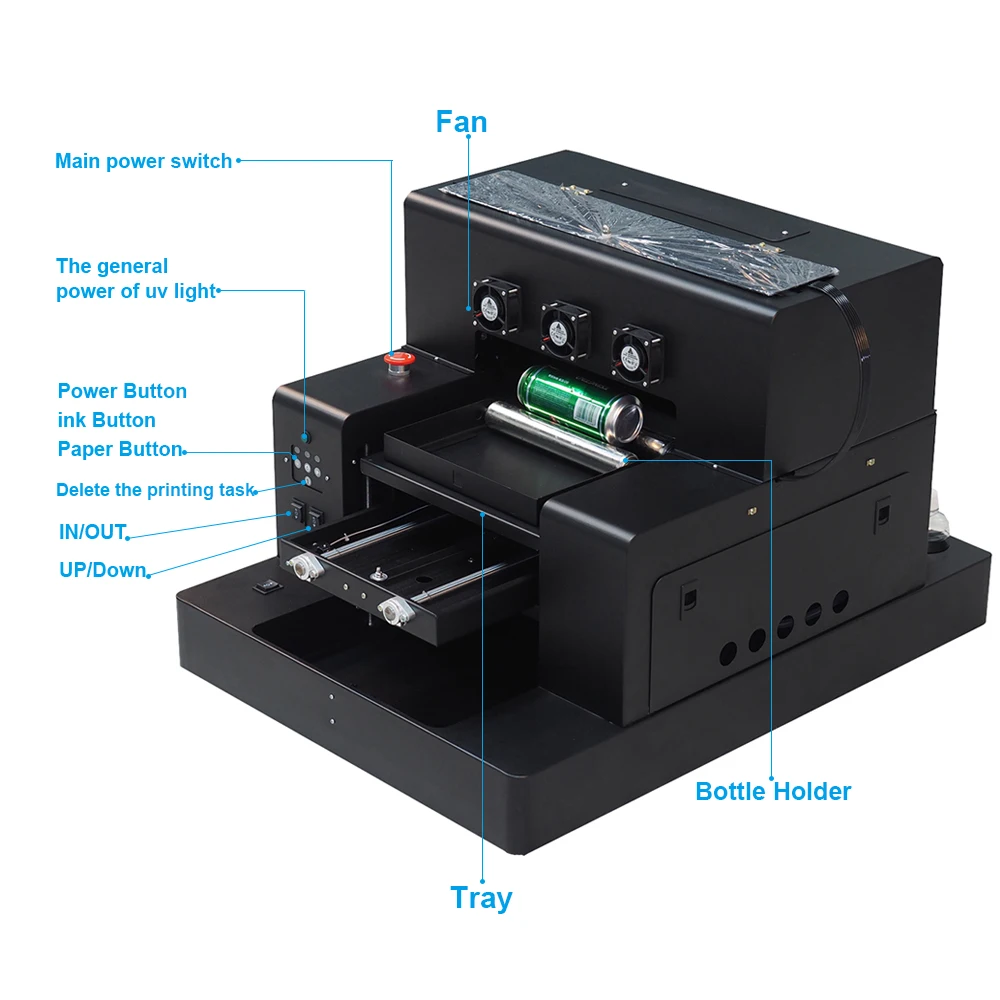

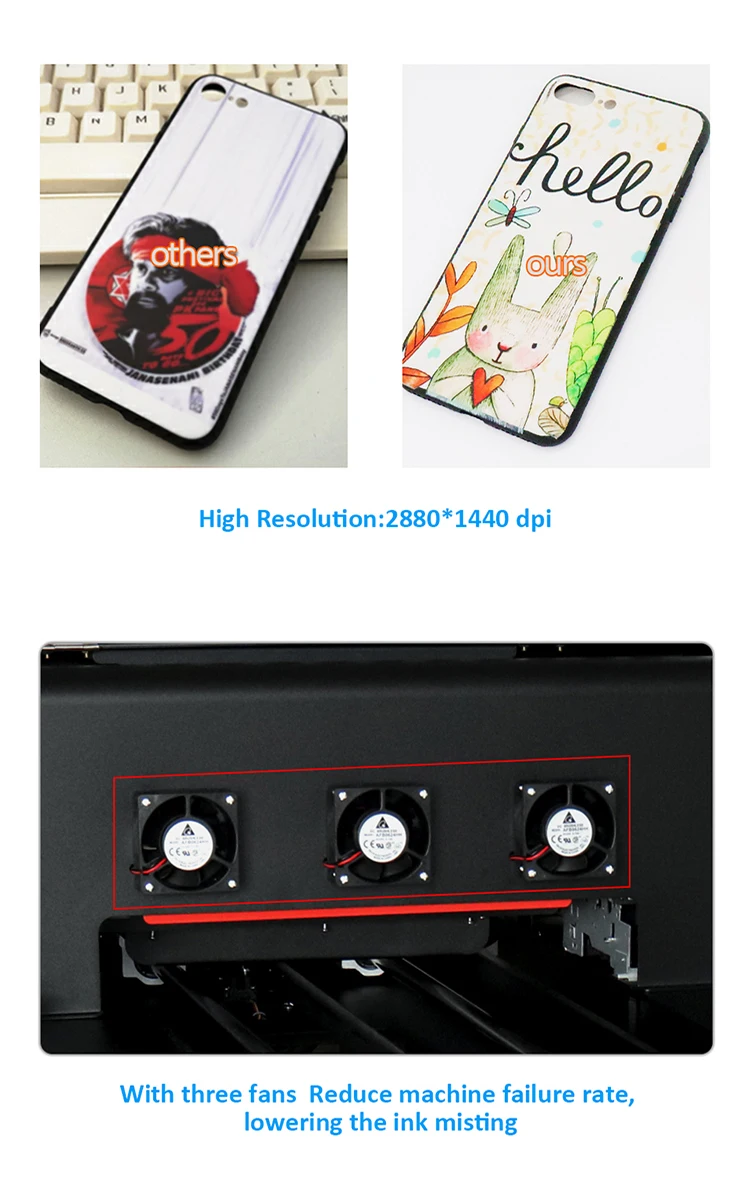

2.with the advantages of the fan (Reduce machine failure rate, lowering the ink misting)
3 .220mm ultra-high printing to meet different customer needs
Machine Parameters :
| Printing method: | Non-contact inkjet printing, Micro Piezo print head, CISS |
| Nozzle configuration: | 540 pieces Nozzle(90pieces *6colors) |
| Min drops | 1.5 pico liters (with intelligent drops transform technology ) |
| Color: | C M Y K +W W |
| Speed: | A4size photo(Photo mode 111 seconds) |
| Printing distance: | 1mm~3mm(1mm optimum) |
| Printing size: | 279*500mm |
| Printing height | 220mm |
| printable bottle diameter is |
60-100mm |
| Printing height adjustment | Adjustment automatic |
| Item height: | Fixed height limit |
| Environmental requirement: | Temperature 10-35℃/Humidity20-80% |
| Power: | AC220-240V/50-60HZ,Power consumption less than 60W |
| Printing interface: | USB2.0 |
| Printing software: | Acrorip823_W/Photoshop/CorelDRAW etc. |
| Operation system: | Windows XP / Windows 7 Windows 8 Windows 10 |
| Net Weight: | 59kg |
| Accessories package |
1.RIP software 1set 2. CISS 1set 3.UV Damper 2 pcs 4.High quality USB data line 1set 5.power line 1PCS Bottle holder 1PCS |
| Packing size | L980mm*W725mm*H600mm |
| Ink curing: |

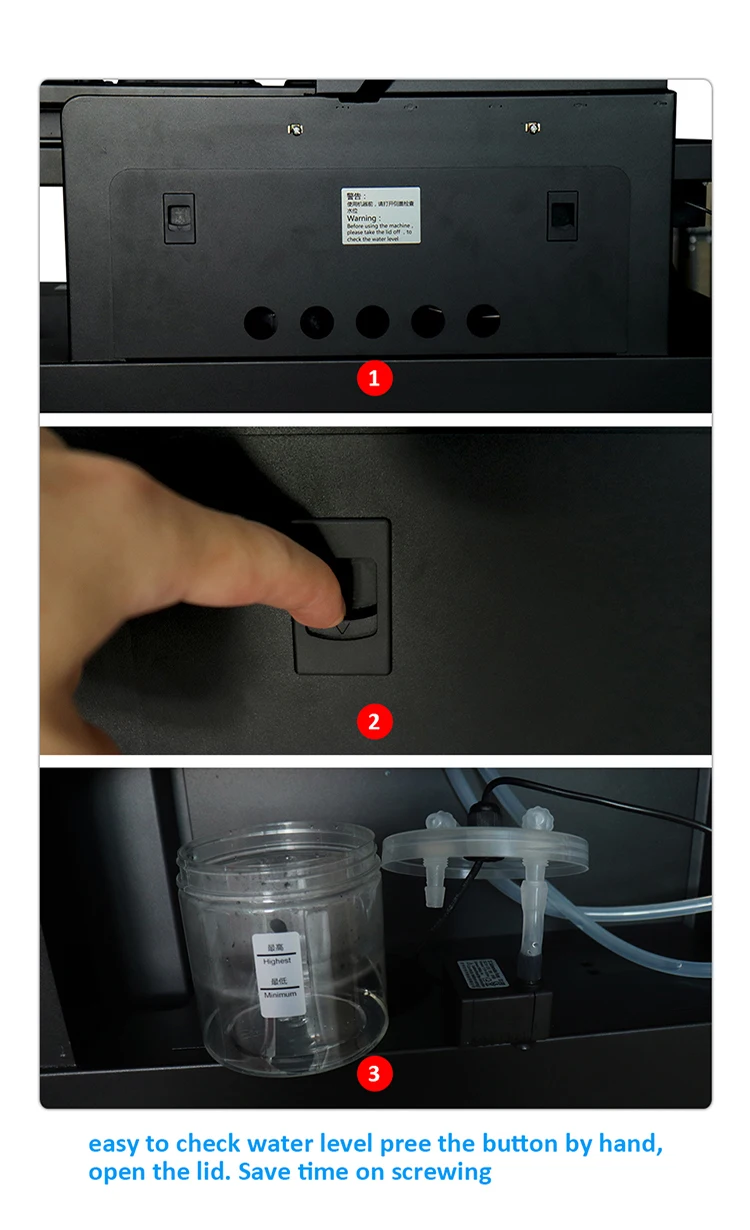

UV machine uses water cooling circulatory system to ensure low temperature operation state can extend the life of UV lamp , and to increase light intensity so that the light solid will better |
Welcome your inquiry
