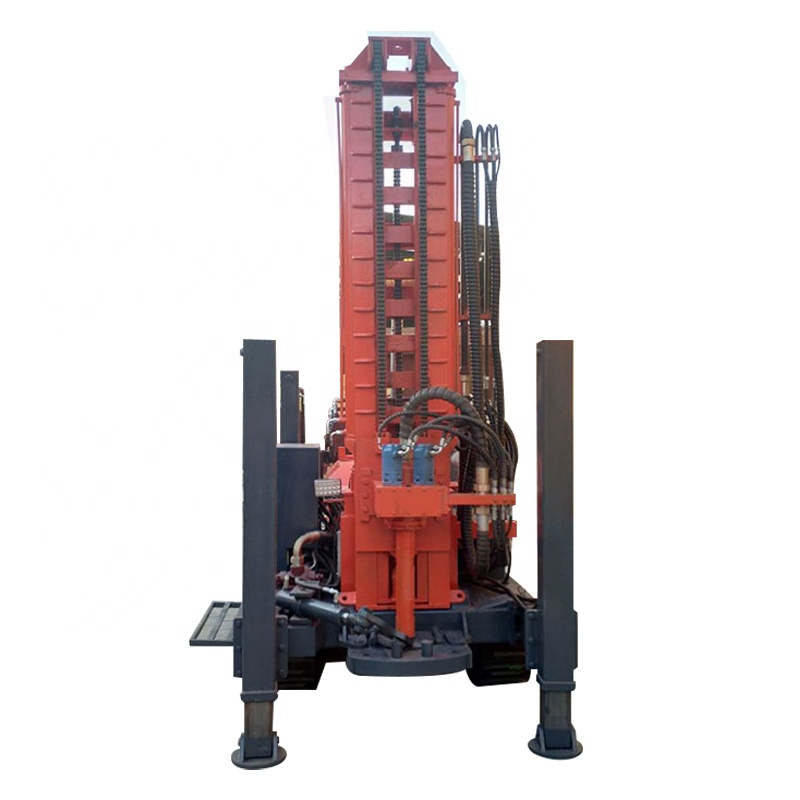

The JK-DR180S drilling rig with AC(Air Compressor) method is capable of drilling upto 165mm (6 1/2 inch) diameter holes for pore-forming purposes to a depth of 180 meters
Product Display
Product Parameters
|
Maximum drilling depth
|
180m
|
|
Bore diameter
|
90-254mm
|
|
Working wind pressure
|
1.05-2.46Mpa
|
|
Air consumption
|
16-30m3/min
|
|
Drill rod length
|
3m
|
|
Drill rod diameter
|
76/89mm
|
|
axial pressure
|
4T
|
|
lifting force
|
12T
|
|
Hoisting speed
|
2.5m/min
|
|
Fltting speed
|
0.5-5m/min
|
|
Fast hoisting speed
|
18m/min
|
|
Fast Fltting speed
|
35m/min
|
|
Swing torque
|
4200-5600Nm
|
|
Swing speed
|
48-70r/min
|
|
High hydraulic leg stroke
|
1.5m
|
|
The penetration efficiency
|
10-35m/h
|
|
Travelling speed
|
2.5Km/h
|
|
Gradeability
|
30°
|
|
Weight
|
4.7T
|
|
Engine
|
QUANCHAI55KW
|
|
Dimensions（mm）
|
3.6M×1.7M×2.15M
|
Product Advantages
1.The engine uses QUANCHAI 55 KW turbocharged engine;
2.Walking Type: crawler mounted ,trailer mounted for choice.
3.Hydraulic oil pump:Parallel gearbox design separates the oil pump unit, the power
supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Rotary head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 3.4m long stroke, double cylinder lift capacity 12 ton .
supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Rotary head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 3.4m long stroke, double cylinder lift capacity 12 ton .
7.Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8.Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
