100 ton hydraulicstress jack hydraulic synchronous lifting jack system

ر.س5,912.39

Clear
Qty:
Compare

Request quotation for: 100 ton hydraulicstress jack hydraulic synchronous lifting jack system

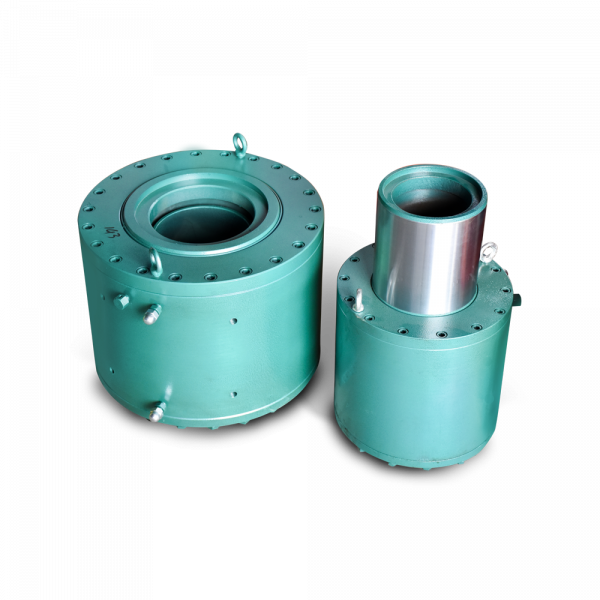

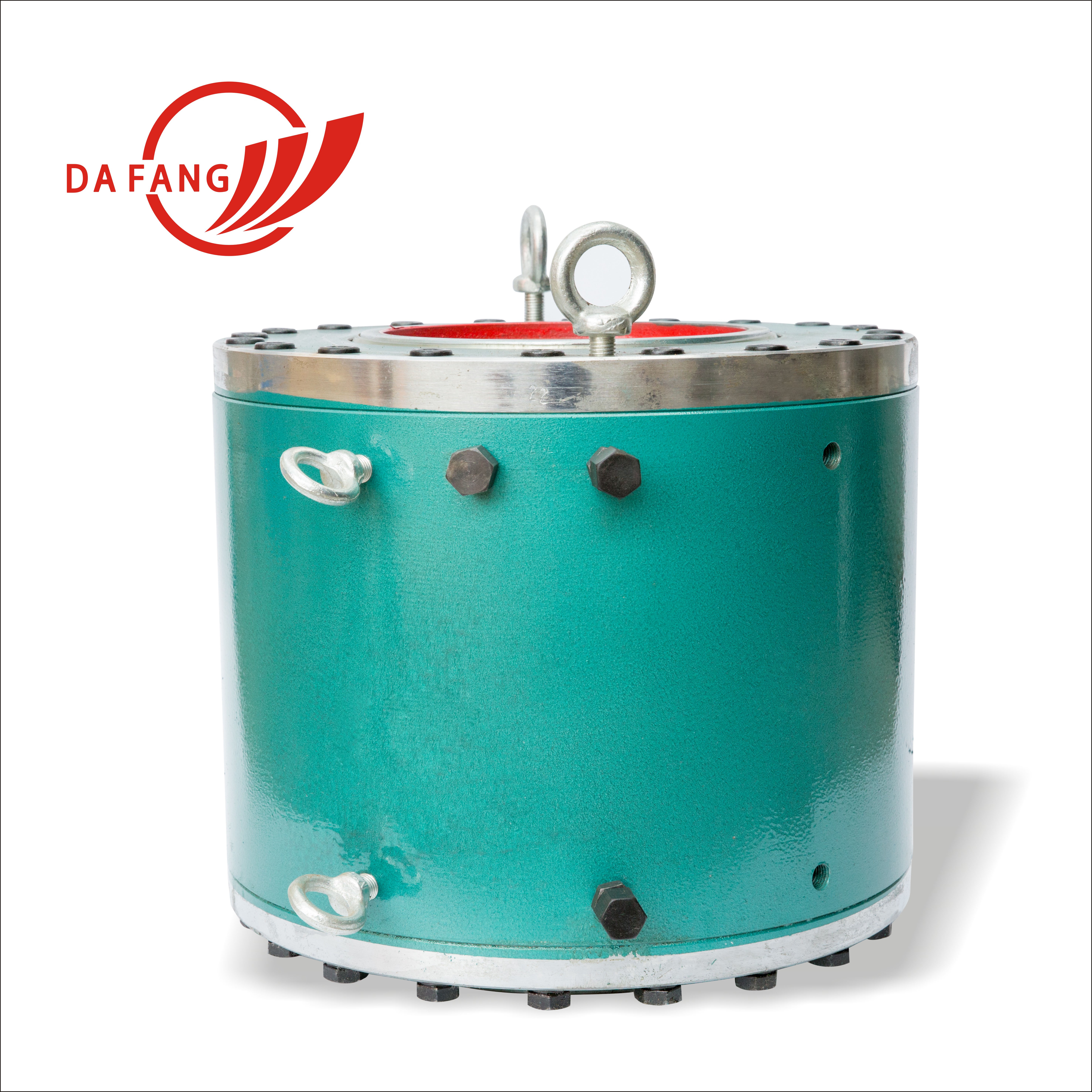

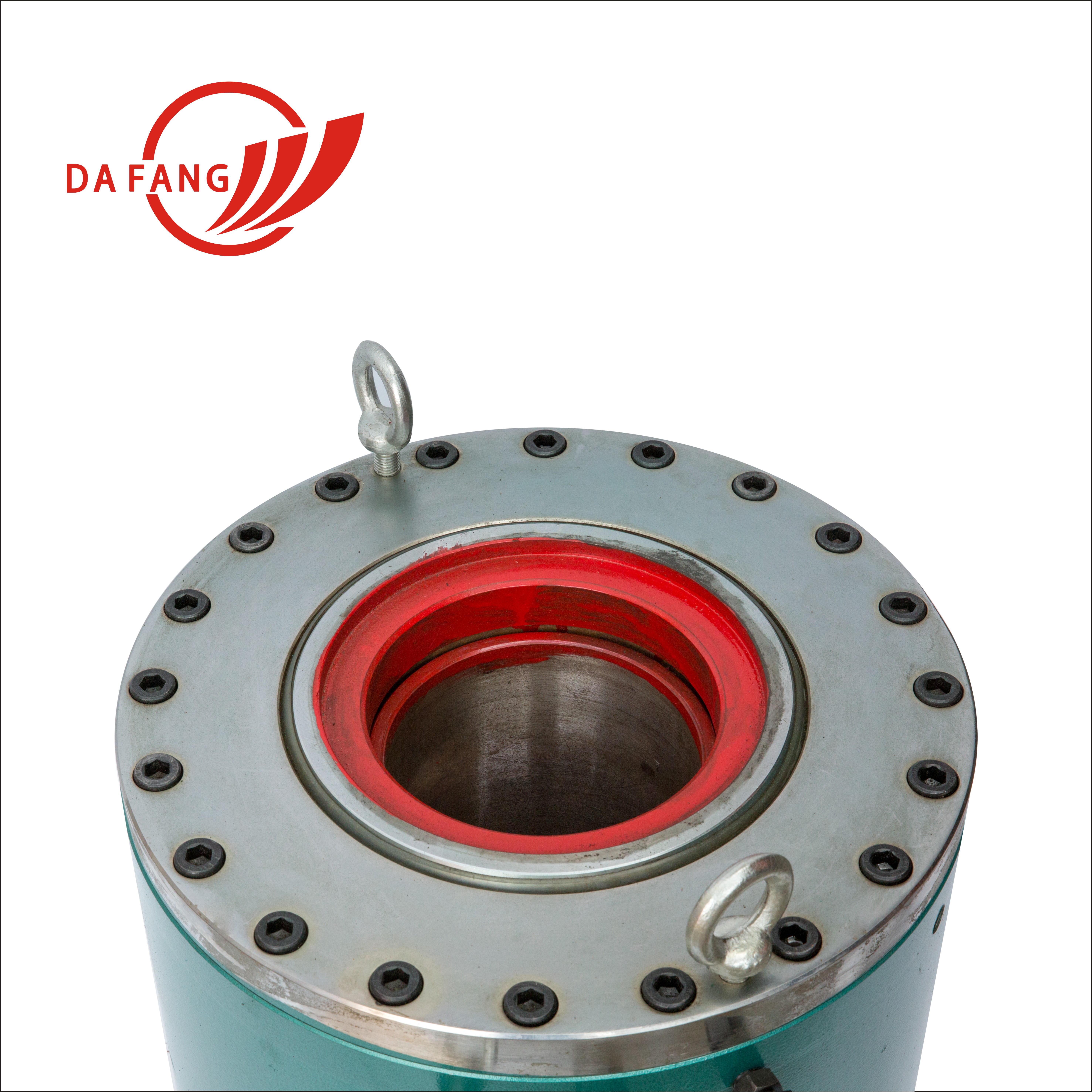

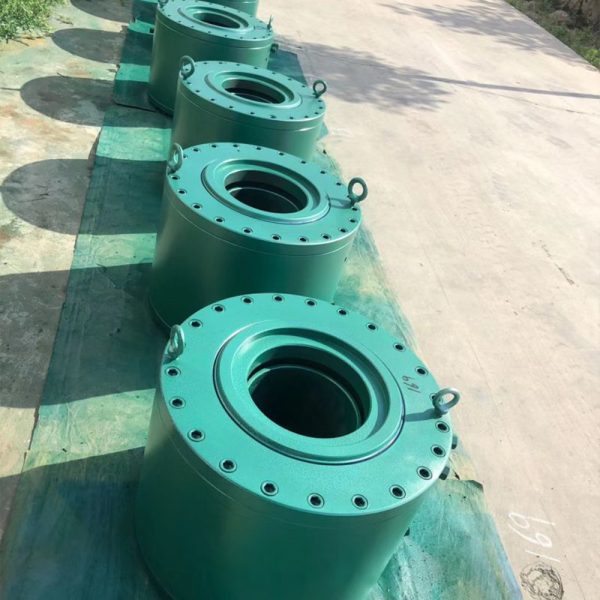

YDC post-tension Hollow jack are advanced devices based on their former structures of YDC, redesigned with high-strength steel, advanced structures, sealing function, optimization technology. This new type features tight structure, lightened weight, short axial length, stands saving by the short reserved length in prestressing strand anchorage. The results of the test show its perfect performance, durability, flexibility of lifting, the convenience of using and preparing. It can be used in pre-tensioning and post-tensioning. With different attachments, respectively tensioning XYLM, QYM clip group anchor, DM, LZM anchorage, etc.






YDC-2020-_04.jpg YDC-2020-_05.jpgYDC-2020-_06.jpg

 .jpg

Technical Data of Prestressing Hydraulic jack
φ Item Specification Nom. Force (KN) Nom. Pressure (MPa) Piston Area (mm2) Stroke (mm) Dia. of Center Hole (mm) Working Space (mm) Space board (mm) Weight (kg) Over size (D*L)
YDC750 750 50 15072 200 63 100 100 60 φ200*300
YDC1000 1000 55 18344 80 120 120 65 φ217*342
YDC1100 1100 52 21254 80 120 120 72 φ230*342
YDC1200 1200 51 23550 85 120 120 75 φ240*342
YDC1500 1500 53 28495 90 135 146 100 φ270*342
YDC2000 2000 46 43979 122 170 188 148 φ320*348
YDC2500 2500 49 51810 127 170 188 158 φ348*356
YDC3000 3000 52 57795 136 190 200 178 φ370*356
YDC3500 3500 52 67824 168 220 240 255 φ420*385
YDC4000 4000 53 76066 170 230 240 285 φ440*385
YDC4500 4500 55 81954 170 250 260 310 φ450*385
YDC4600 4600 53 87606 185 260 270 330 φ470*386
YDC5000 5000 52 97202 193 280 290 390 φ496*404
YDC5500 5500 53 103620 200 180 190 440 φ503*405
YDC6000 6000 53 113747 205 300 320 480 φ530*408



YDC-2020-_08.jpgYDC-2020-_09.jpgYDC-2020-_10.jpgYDC-2020-.jpg-1

Color

Customized, Green
