0-20mm/s vibration sensor 4-20ma output with good quality and featuress
Features:
• Magnetoelectric vibration sensor
• Measurable physical quantity: vibration speed,vibration displacement
• Operating voltage: +12~+24V DC
• Measuring range : 0-100 mm/s;0~2000μm
• Analog output : 4-20 mA
• Frequency range : 10-1,000 Hz
• 2-wire connection technology
• Application:Widely used in rotating machinery, such as fans, pumps, compressors, steam turbines, etc. inthe power, steel, petrochemical and other equipment.
|
Measure range |
vibration velocity 0 – 100mm/s vibration displacement 0-2000μm |
|
Output current |
4 – 20mA two wire system |
|
Frequency response |
10~1000HZ(Universal, vertical, level) 4.5~1000Hz (vertical, level) 2~500Hz(vertical, level) |
|
Temperature drift |
<0.1%/℃ |
|
Ambient temperature |
-40℃ – +85℃ |
|
Supply voltage |
+12~+24vdc |
|
Shell material |
stainless steel |
|
Load resistance |
<500Ω |
|
Transverse sensitivity |
<2%
|
|
Output way |
two-wire (one for +24VDC power supply and one for 4-20mA output) |
|
IP grade |
IP62(Aviation plug) IP65(Direct lead) |
|
Weight |
400g |
|
Accessory |
calibration certificate parameters; a mounting screw; an aviation plug cable (standard: 3m, can be customized)
|
Parameter selection tabe :
select prduction parameters as required,for more information,pls send message to us.
- DK200-
|
Measurement Range
|
Mounting thread
|
Cable length
|
Lead way
|
Protection |
|
Vibration velocity 01:0-10mm/s 02: 0-20mm/s 03:0-30mm/s 04:0-40mm/s 05:0-50mm/s …… |
01:M10*1.5 02:M5*0.8 03:M8*1.25 04:1/4-28 05:Magnetic base 06:special customize
|
01:1m 02:2m 03:3m 04:4m …….. 06:special customize
|

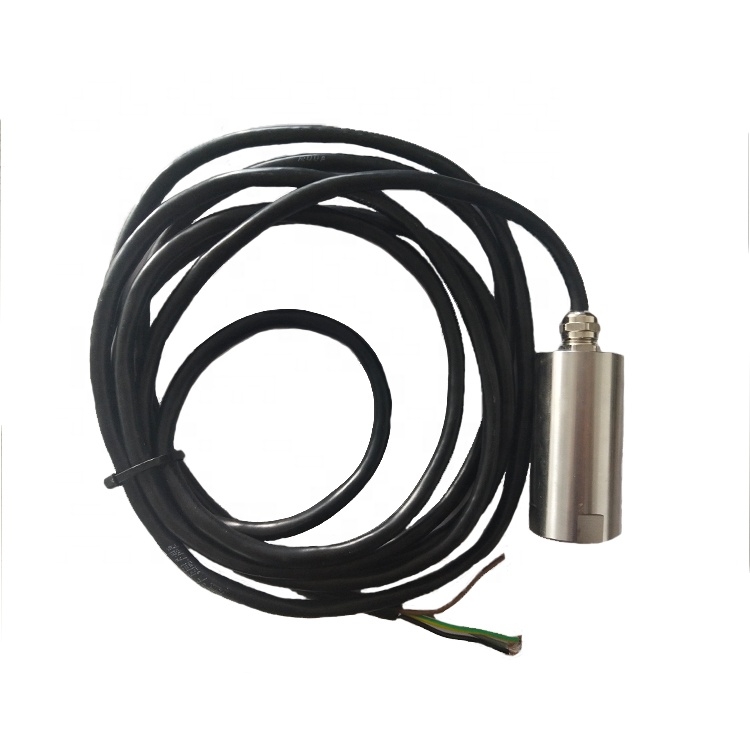

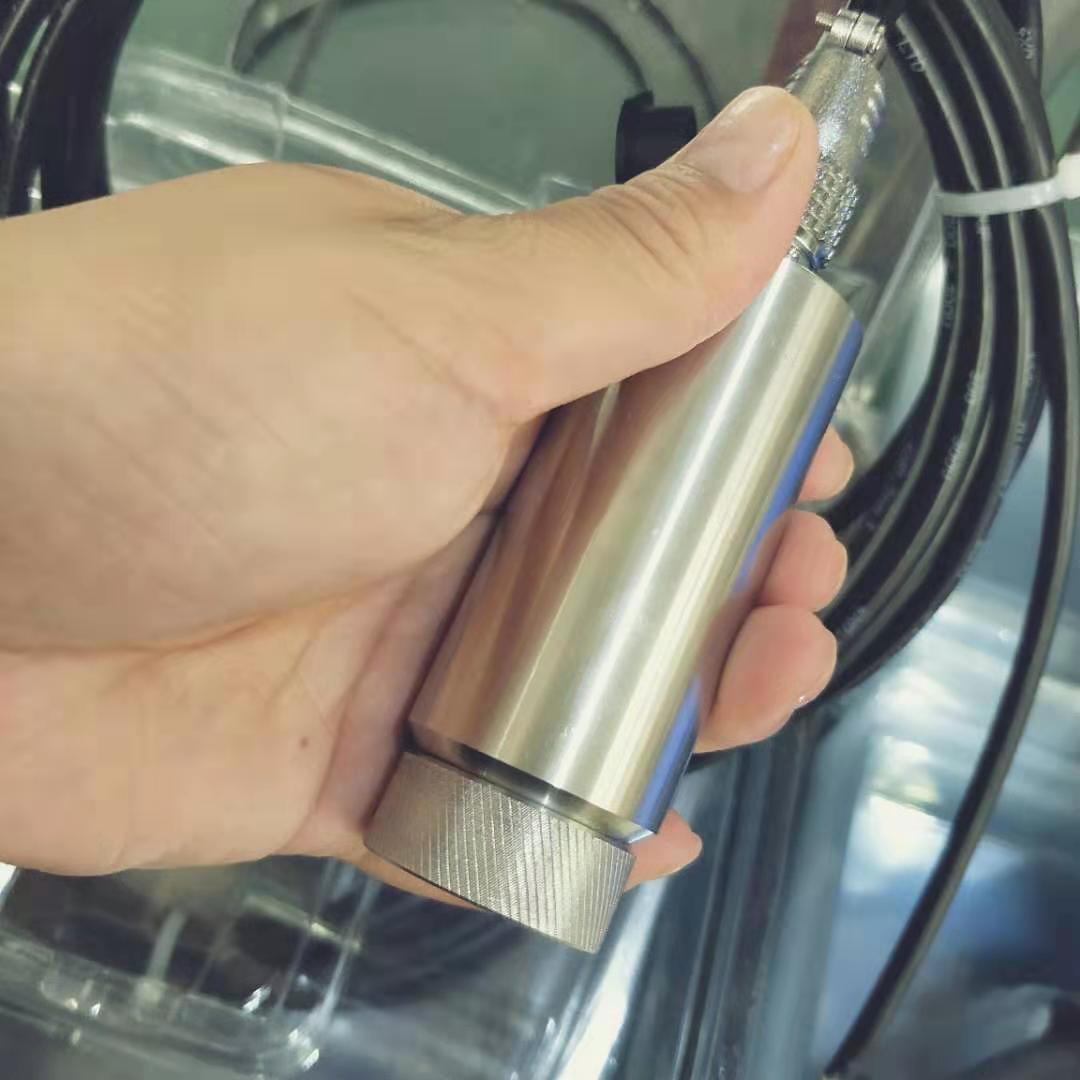

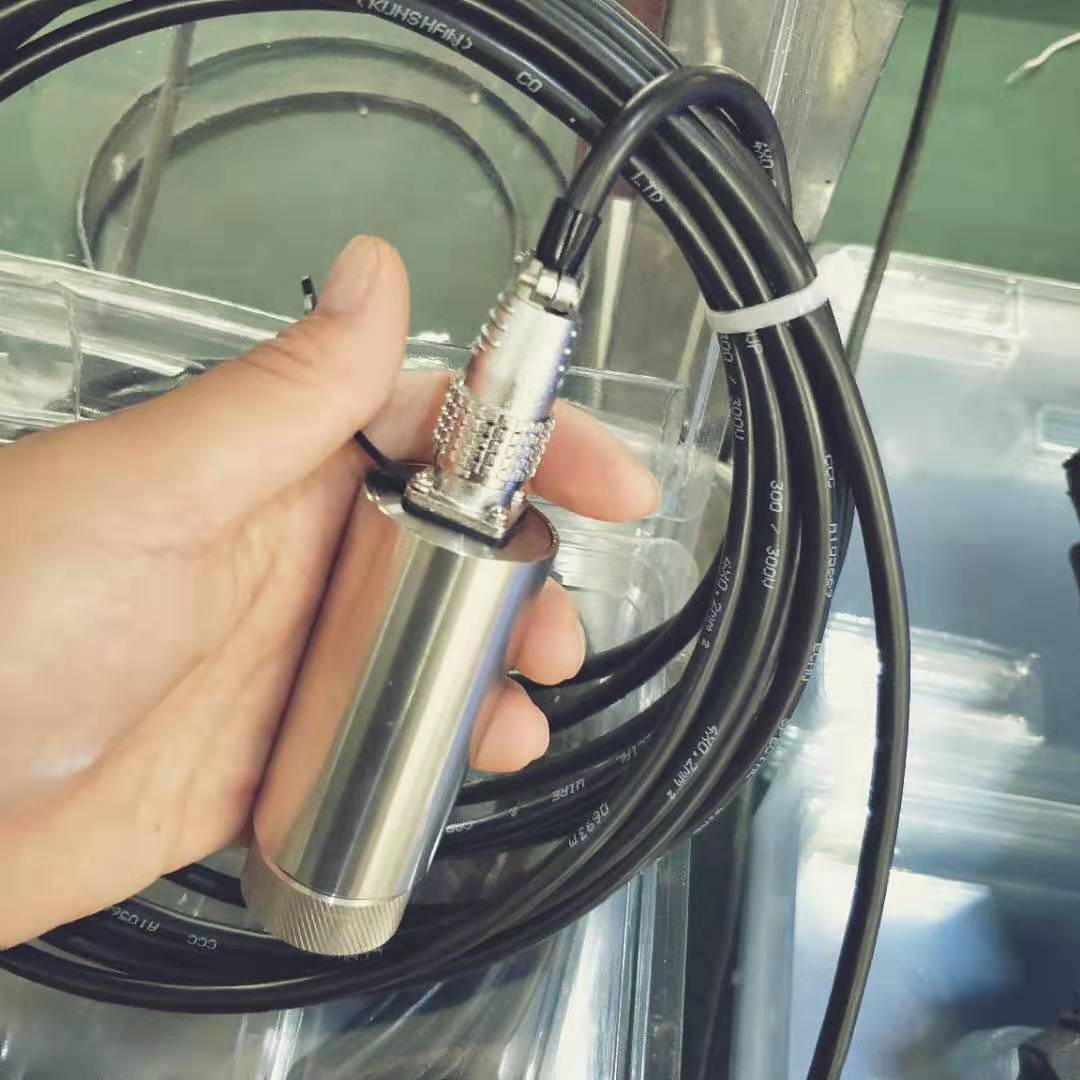

01:Directly lead 02:Aviation plug (armored according to need)
|
01:yes 02:no |
|
Installation position: vertical or horizontal vibration in the measured point, the sensor screws in the bottom of the test case,and then the sensor tighten screw on top . Installation dimensions and specifications:If the transmitter is mounted flush position when subjected to high temperatu steam , in order to reduce the ambient temperature transmitters , need to add protective measure, under normal circumstances do not add protection.Wiring Instructions: Brown wire connected to the positive terminal of the power DC24V,DC24V power blue wires connected to the negative side, both brown and blue wires is 4 ~ 20mA output leads . Connecting wires require good insulation properties, using standard GB 0.5MM2 two core shielded cable. |
